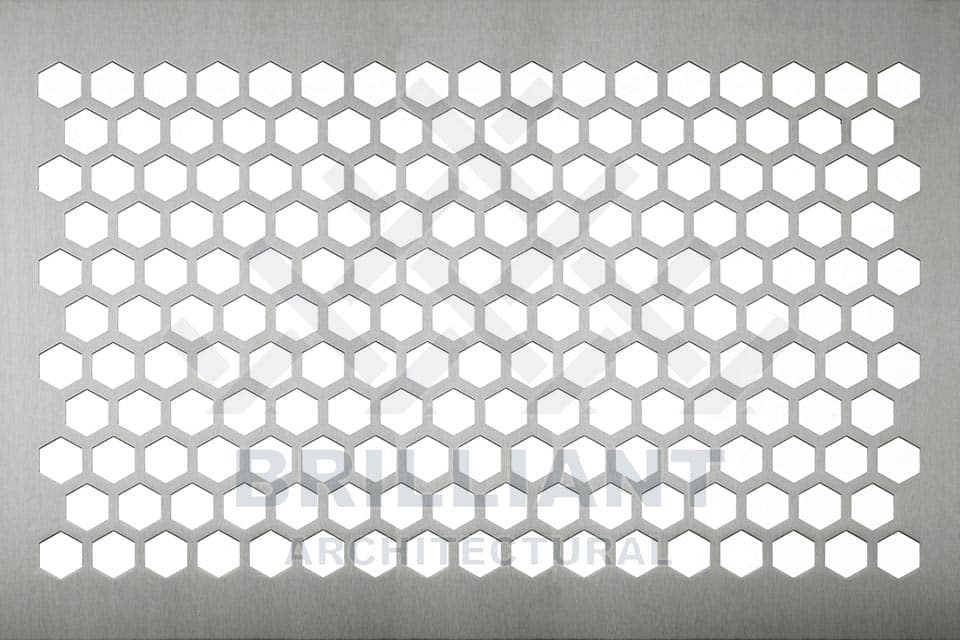

Honeycomb Hexagonal Perforated Metal Sheet

Honeycomb perforated sheet metal also known as hexagonal perforated metal sheet, it features a pattern of hexagonal holes resembling a honeycomb structure. This design offers an appealing balance of aesthetics and functionality, with high open area for enhanced airflow, light transmission, and acoustics. The honeycomb pattern is widely recognized for its strength and structural integrity, making the sheet durable yet lightweight.

Honeycomb perforated sheet metal is commonly made from stainless steel, aluminum, galvanized steel, copper, and brass. These materials provide options for corrosion resistance, strength, or decorative finishes, depending on the project’s needs.

Hexagonal perforated metal sheets are used in architectural facades, ceilings, partitions, and sunshades. They are also popular in interior design for feature walls, screens, and decorative elements. The hexagonal pattern is ideal for modern designs, combining strength with visual appeal in both commercial and residential spaces.

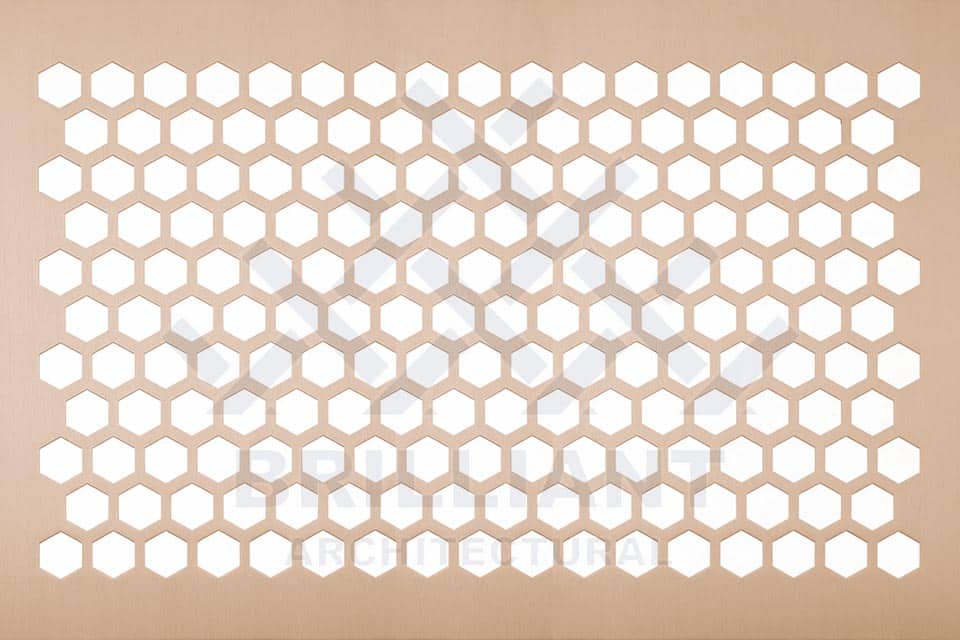

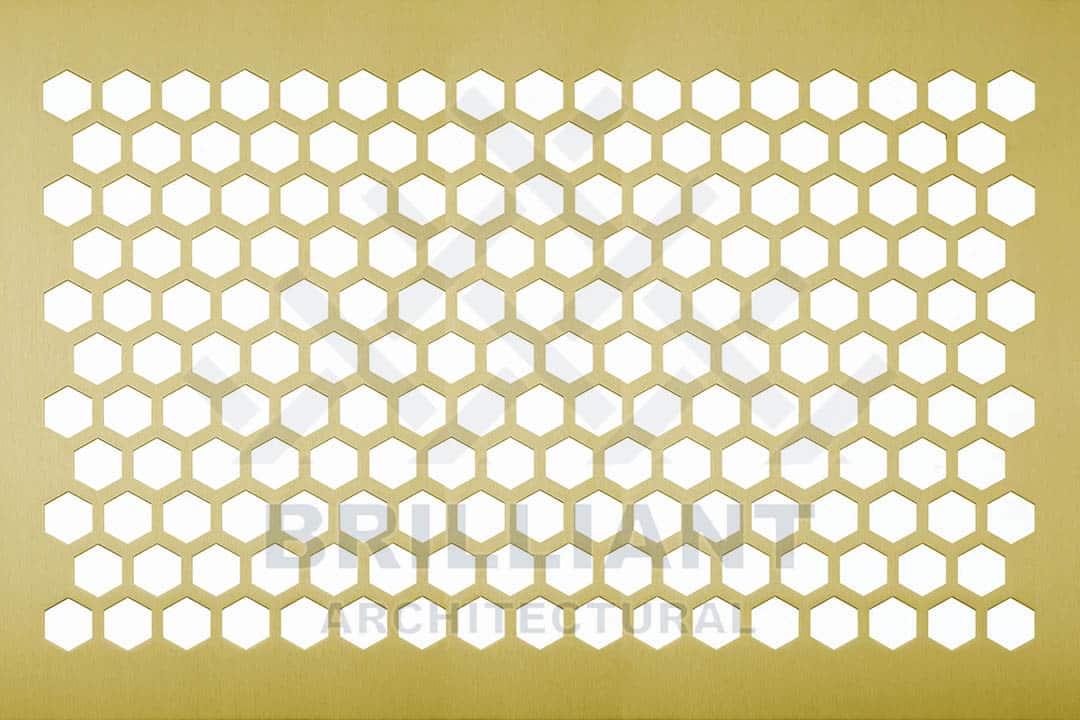

Honeycomb-50 Honeycomb-50 Brass Honeycomb-50Cu hexagonal perforated sheet metal hexagonal perforated metal sheet honeycomb perforated sheet metal

Technical Specifications

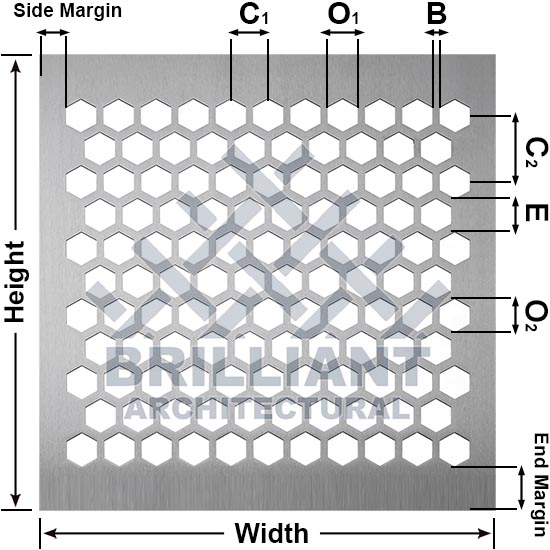

honeycomb perforated metal pattern

Specifications Honeycomb Hexagonal Perforated Metal Sheet

Product Name Honeycomb-50
Material Steel, Aluminum, Copper, Brass
Sheet Thickness, mm (in) On Request
O1, mm (in) 19 mm (.75)
O2, mm (in) 22 mm
C1, mm (in) 25 mm
C2, mm (in) 44.5 mm
D, mm (in) 6.4 mm
E, mm (in) 22 mm
Margins, mm (in) On Request
Open Area 50%
Max Width On Request
Max Length On Request
Approx. Weight, kg/m2 (lb/ft2), Stainless Steel
