Aristotle-2527 Stainless Steel Architectural Crimped Wire Mesh Panels

Aristotle2527 is a stainless steel architectural crimped wire mesh panel, meticulously woven from pre-crimped stainless steel flat wire. Featuring a lock crimp structure, this mesh is designed with five continuous horizontal steel wires, spaced 1 mm apart, and with a 9mm interval between the vertical wires. This distinctive weaving style creates a unique open pattern, making it particularly well-suited for decorative applications in architecture, where both aesthetics and functionality are essential.

Aristotle Aristotle Stainless Steel Architectural Crimped Wire Mesh Lock Crimp Architectural Wire Mesh Panels

Technical Specifications

Architectural metal mesh design

Specifications of Aristotle-2527: Architectural Crimped Wire Mesh Panels

Product Name Aristotle-3903
Material SS 304/316
Wire Size (d), mm (in) 2.5 (.098)
Opening (O1), mm (in) 9 (.354)
Opening (O2), mm (in) 27 (1.06)
Opening (O3), mm (in) 1 (.039)
Overall thickness, mm (in) 3 (.118)
Open Area 60 %
Approx. Weight, kg/m2 (lb/ft2) 5.14 (1.05)
Product Photos

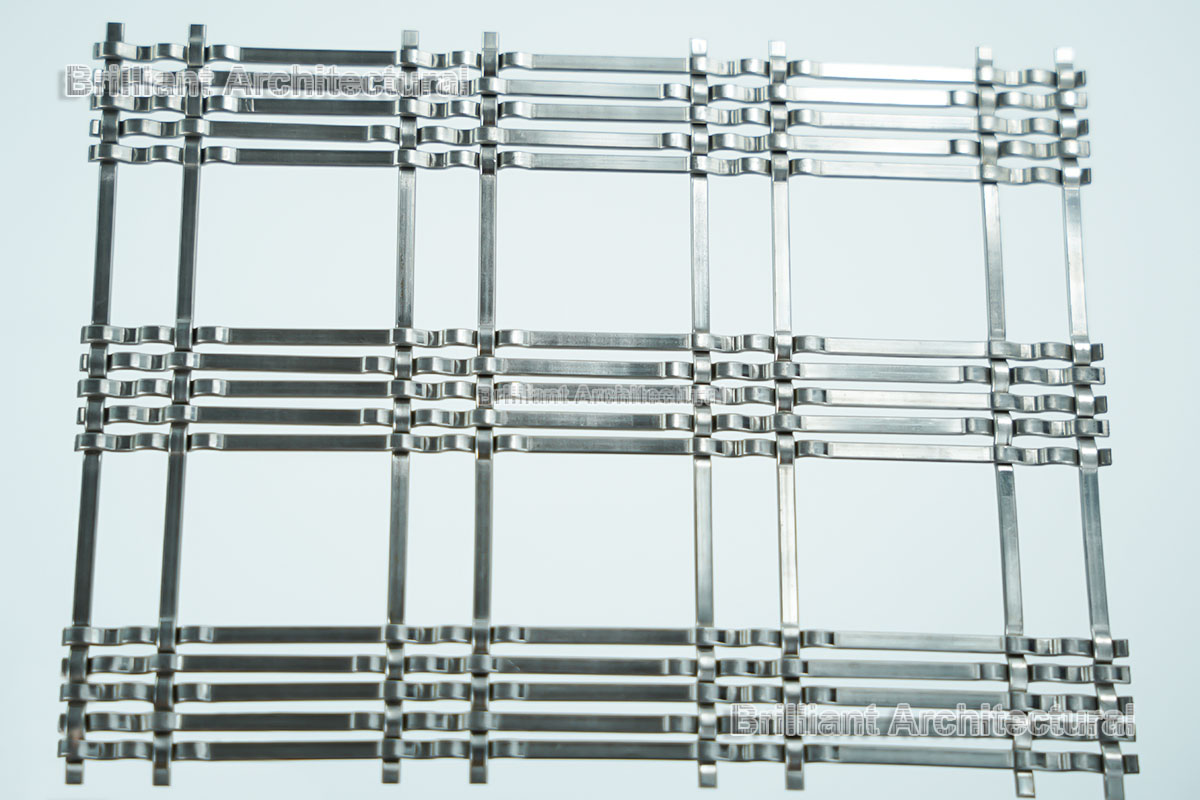

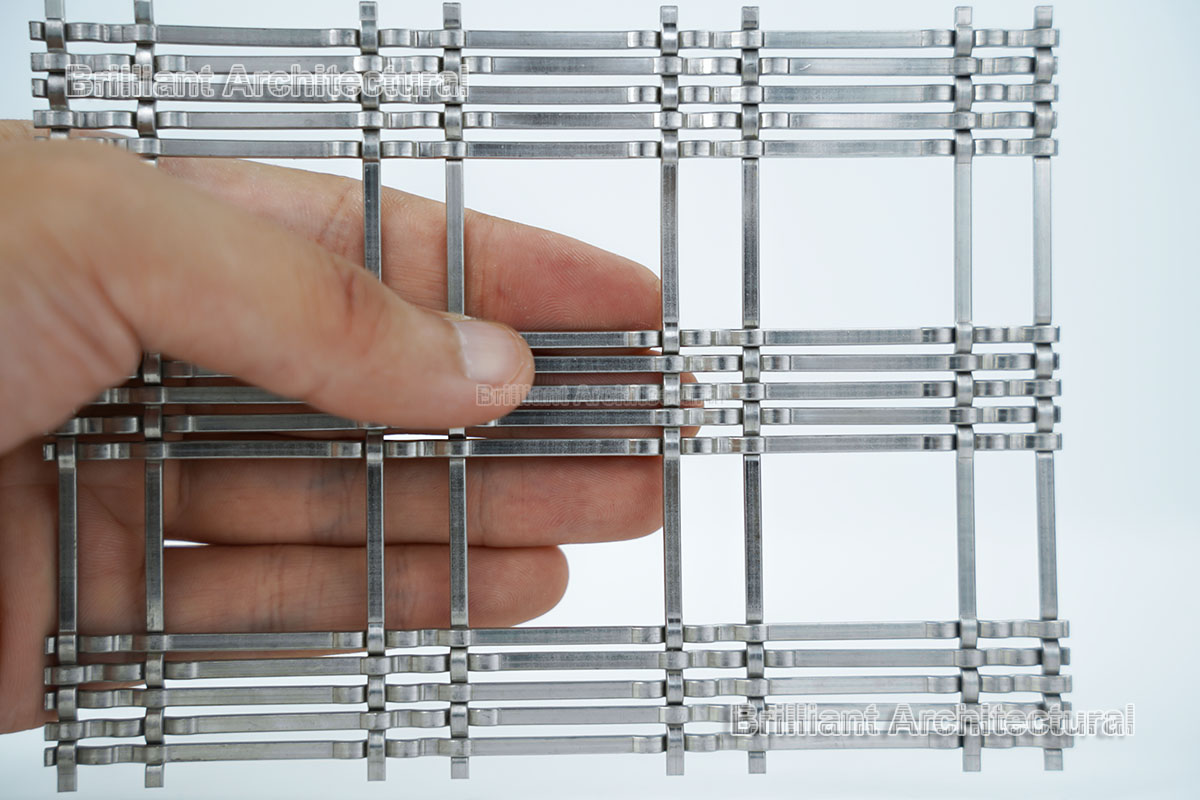

Stainless Steel Architectural Crimped Wire Mesh Panels
Stainless Steel Architectural Metal Mesh Panels
Architectural Metal Mesh
Stainless Steel Architectural Woven Mesh
Architectural Metal Mesh Panels
Stainless Steel Architectural Mesh Panels
Stainless Steel Architectural Metal Mesh
Stainless Steel Architectural Mesh
Finishes

decorative metal mesh finish
