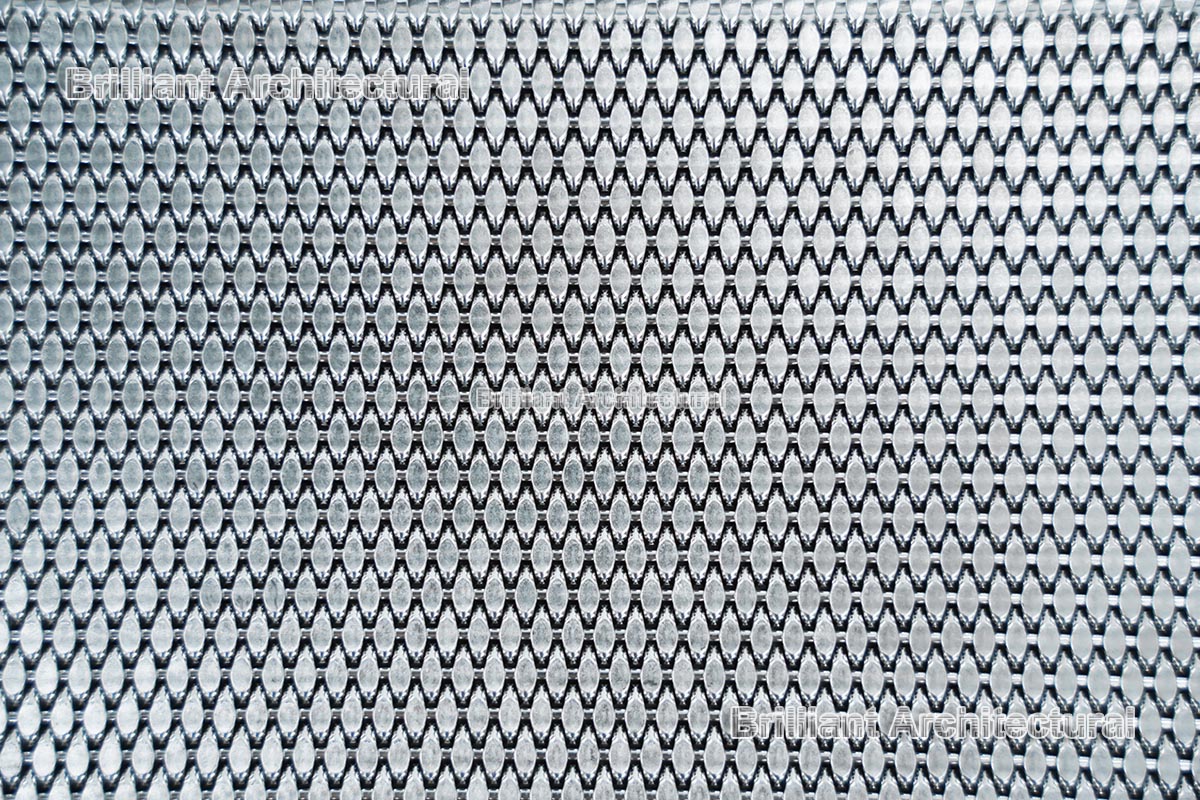

Hahn-280 Architectural Metal Mesh Cladding Panels for Walls

Hahn280 Architectural Metal Mesh Cladding Panels are stainless steel wire mesh panel designed for interior wall cladding, offering both aesthetic and practical benefits. With a 0% open area, this panel is not intended for airflow but is perfect for providing complete coverage and privacy. Crafted from durable stainless steel, Hahn280 Architectural Metal Mesh Cladding Panels serves as an ideal decorative element, enhancing the visual appeal of interior spaces with its sleek, modern design. Although it allows almost no light or air to pass through, this panel is ideal for creating striking interiors that prioritize privacy and a seamless, modern look. These panels are ideal for adorning and covering interior walls, providing a unique and modern design element that enhances the visual appeal of any space.

Otto Hahn

Technical Specifications

Architectural Wire Mesh Panel Design Drawing

Specifications of Hahn-280 Stainless Steel Architectural Wire Mesh Panels

Product Name	Hahn-280
Material	SS 304/316
Wire Size (d1), mm (in)	2.8 (.11)
Wire Size (d2), mm (in)	1.5 (.059)
Wire Size (d3), mm (in)	4.3 (.169)
O1, mm (in)	1.5 (.059)
Overall thickness, mm (in)	3 (.118)
Open Area	0 %
Max Width	1.2m (4 ft)
Max Length	2.8m (9 ft)
Approx. Weight, kg/m2 (lb/ft2)	15.3 (3.13)
