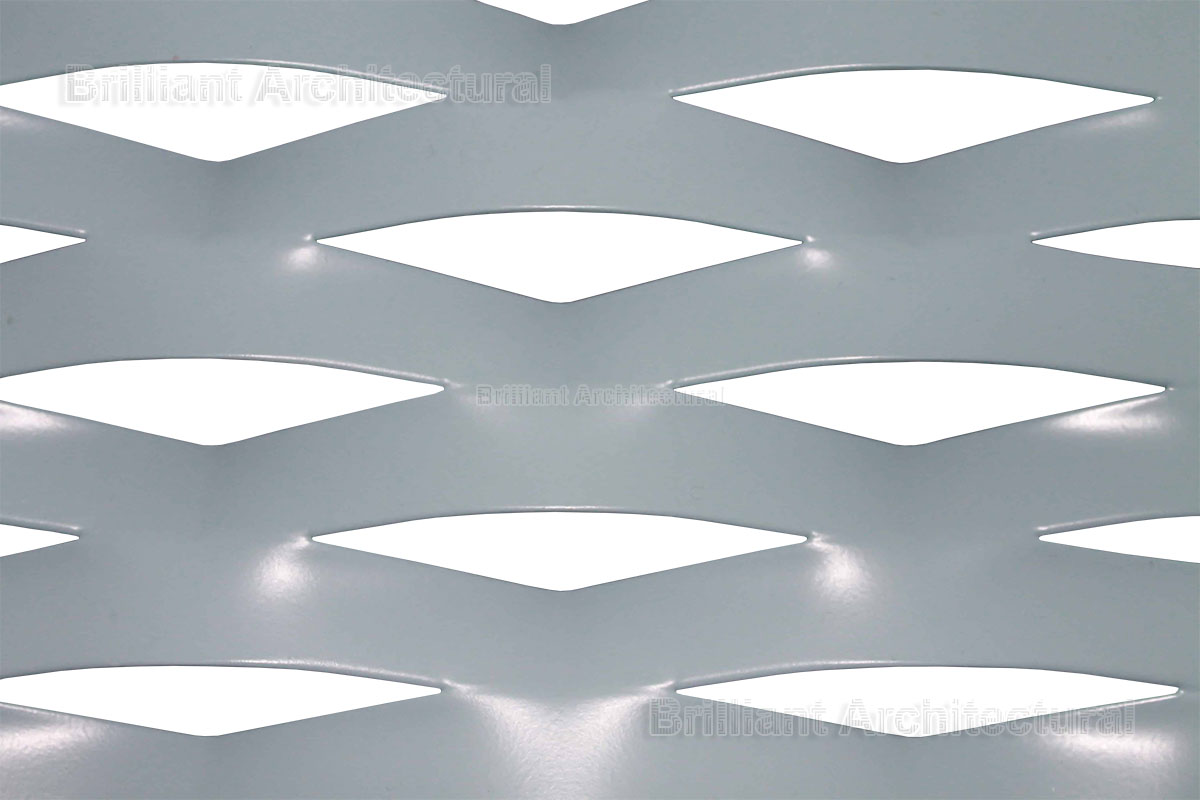

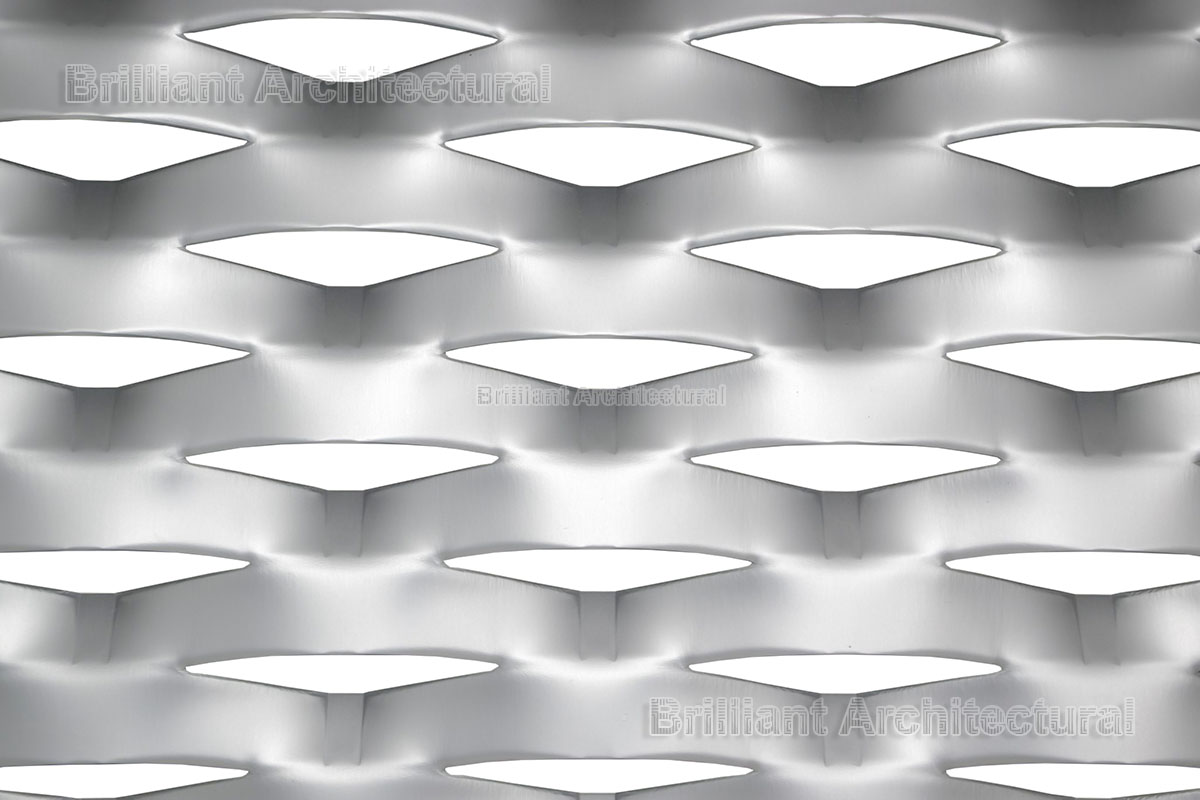

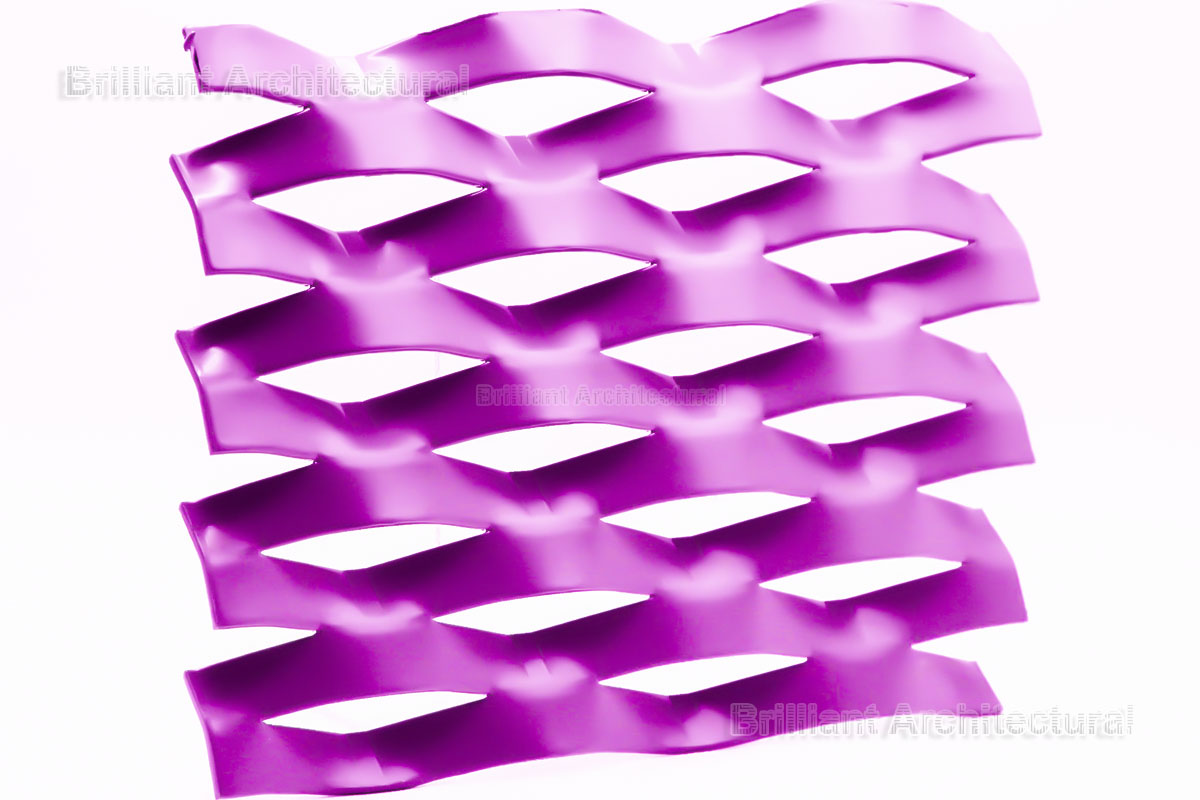

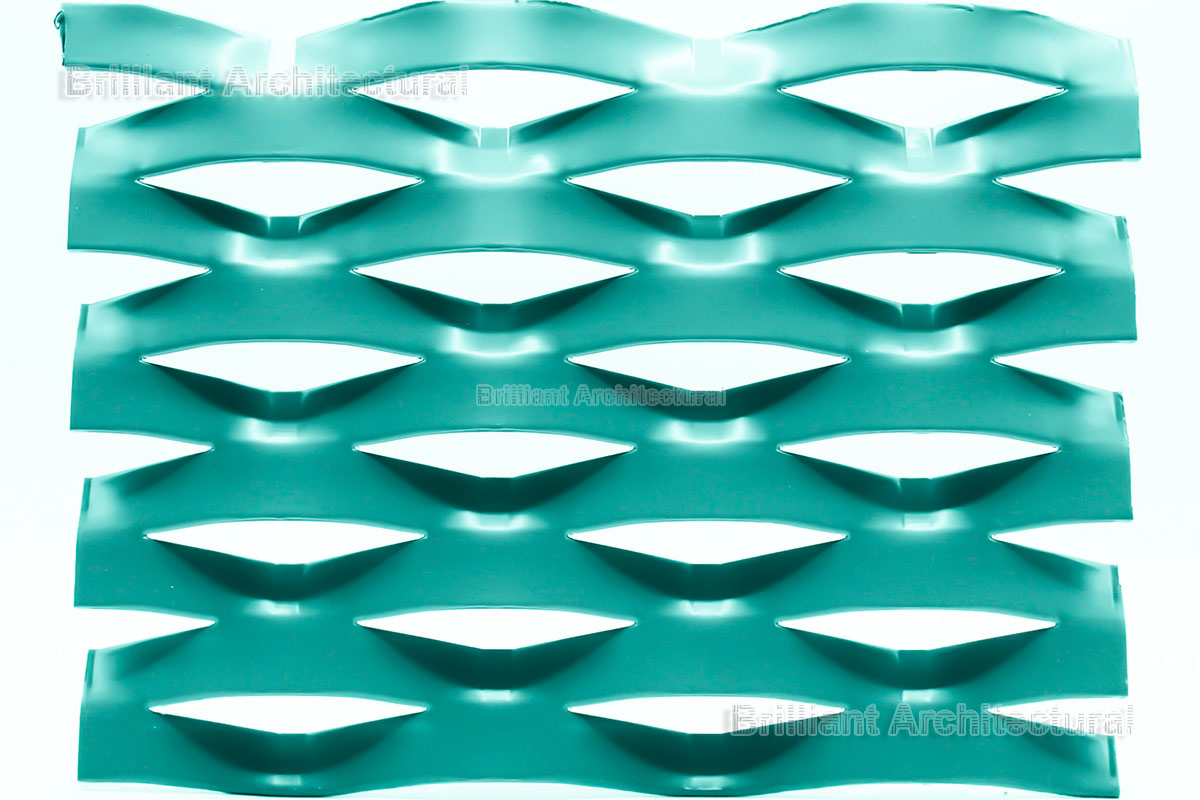

Fermi-11548 Architectural Aluminum Expanded Metal Mesh

Fermi-11548 architectural aluminum expanded metal mesh features a distinctive diamond-shaped pattern, with a long way of 115 mm and a short way of 48 mm. The strand width, measuring 20 mm, adds strength and durability to the mesh while enhancing its structural integrity. The mesh offers a front aperture of 26%, allowing for partial visibility and privacy, while maintaining an air aperture of 60% to enable excellent airflow and ventilation.

This type of aluminum expanded metal mesh is commonly used in architectural designs for facades, sunscreens, and balustrades, offering both functional and aesthetic benefits.

Fermi-11548

Enrico Fermi

Technical Specifications

architectural expanded metal mesh design drawing

Specifications of Fermi-11548 Architectural Aluminum Expanded Metal Mesh

Product Name	Fermi-11548-1	Fermi-11548-2	Fermi-11548-3
Material	Aluminum, Steel	Aluminum, Steel	Aluminum, Steel
LWD, mm (in)	115 (4.53)	115 (4.53)	115 (4.53)
SWD, mm (in)	48 (1.89)	48 (1.89)	48 (1.89)
Strand width, mm (in)	12 (.787)	12 (.787)	12 (.787)
Strand thickness, mm (in)	1.5 (.059)	2 (.079)	3 (.118)
Front Open Area	25%	25%	25%
Air Open	60%	60%	60%
Max Width	2m (7 ft)	2m (7 ft)	2m (7 ft)
Max Length	3m (10 ft)	3m (10 ft)	3m (10 ft)
Approx. Weight, kg/m2 (lb/ft2), Aluminum	3.5 (.72)	4.5 (.92)	6.5 (1.33)
Approx. Weight, kg/m2 (lb/ft2), Steel	9.5 (1.95)	12.5 (2.56)	19 (3.89)
