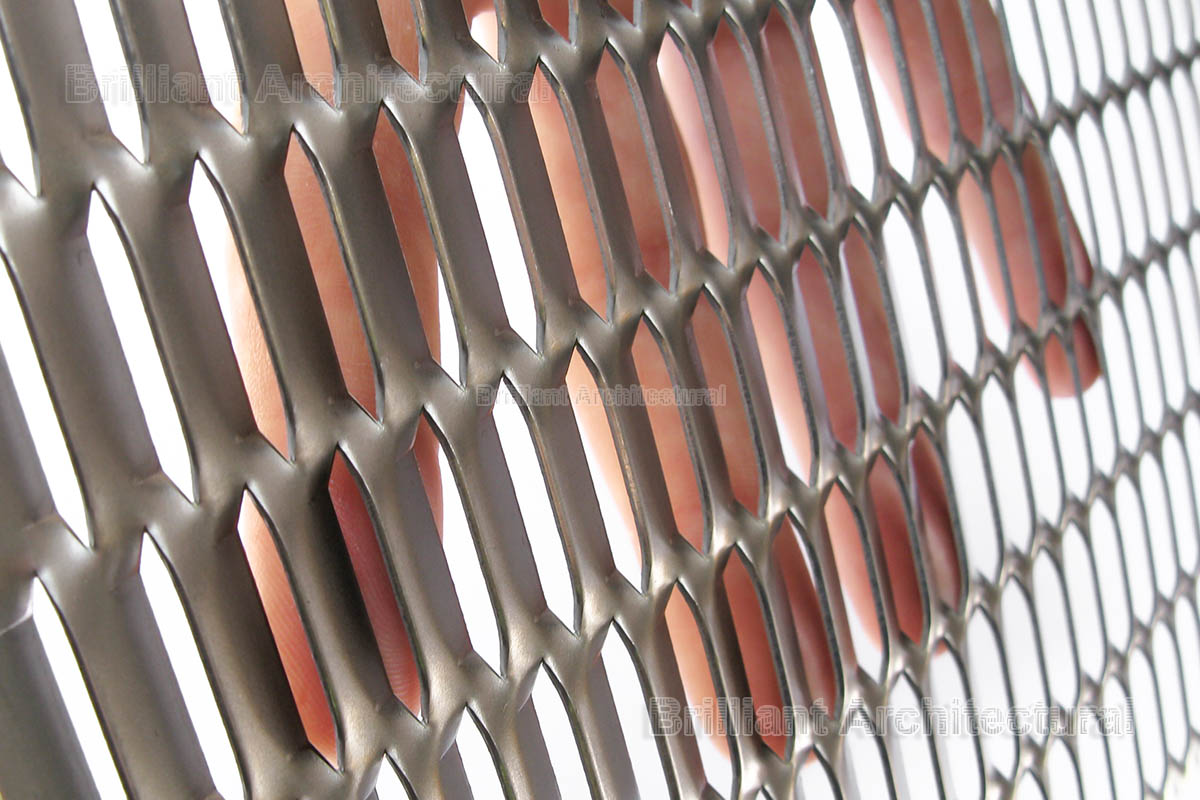

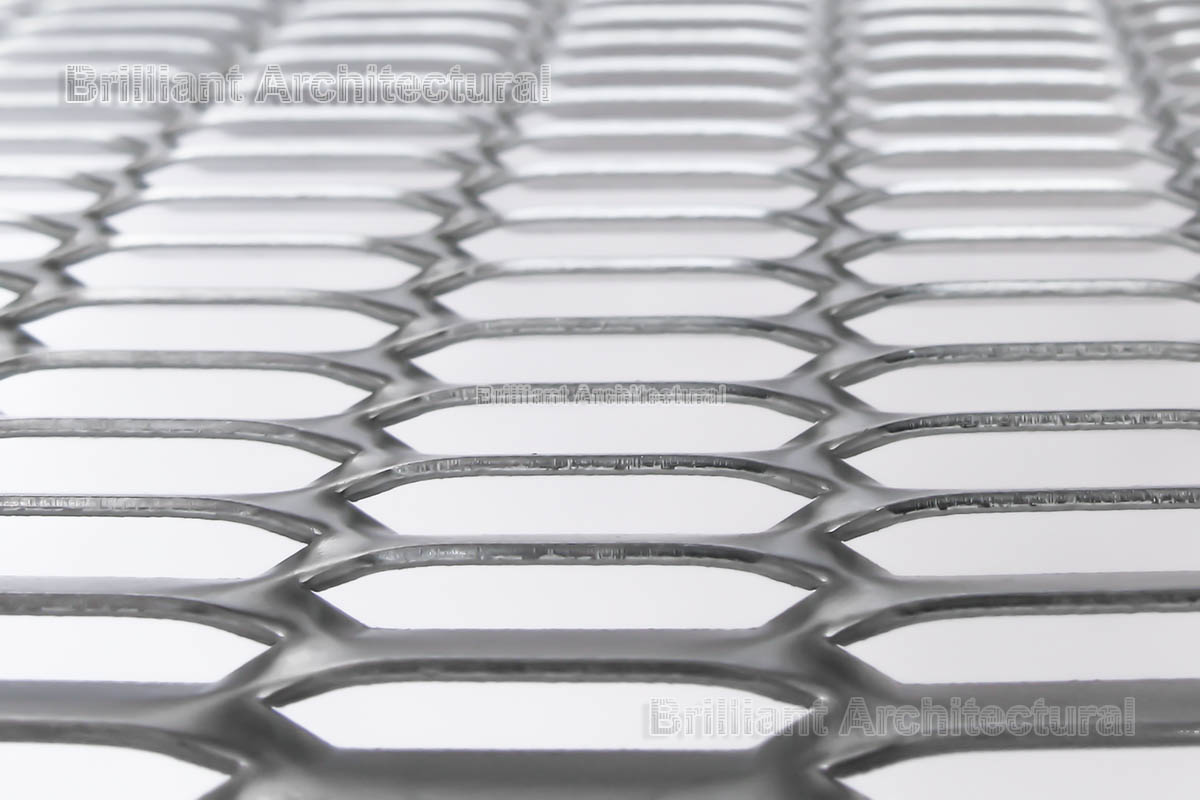

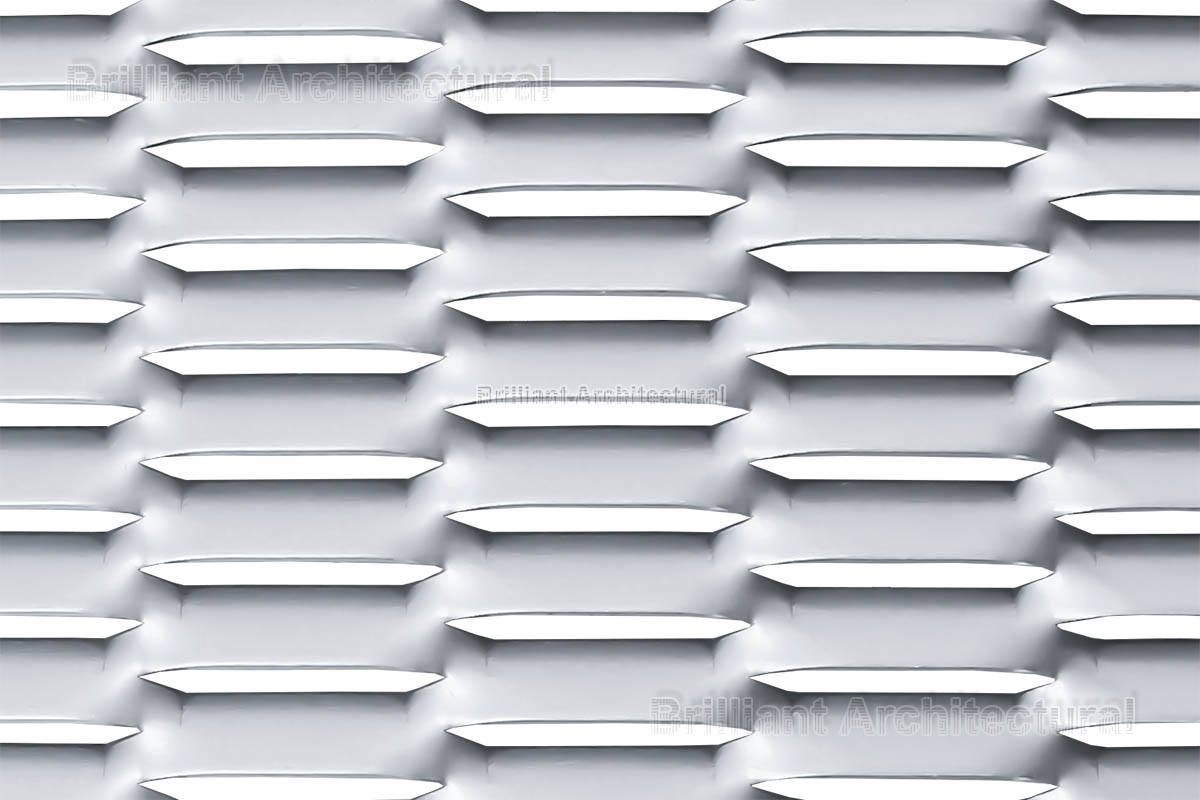

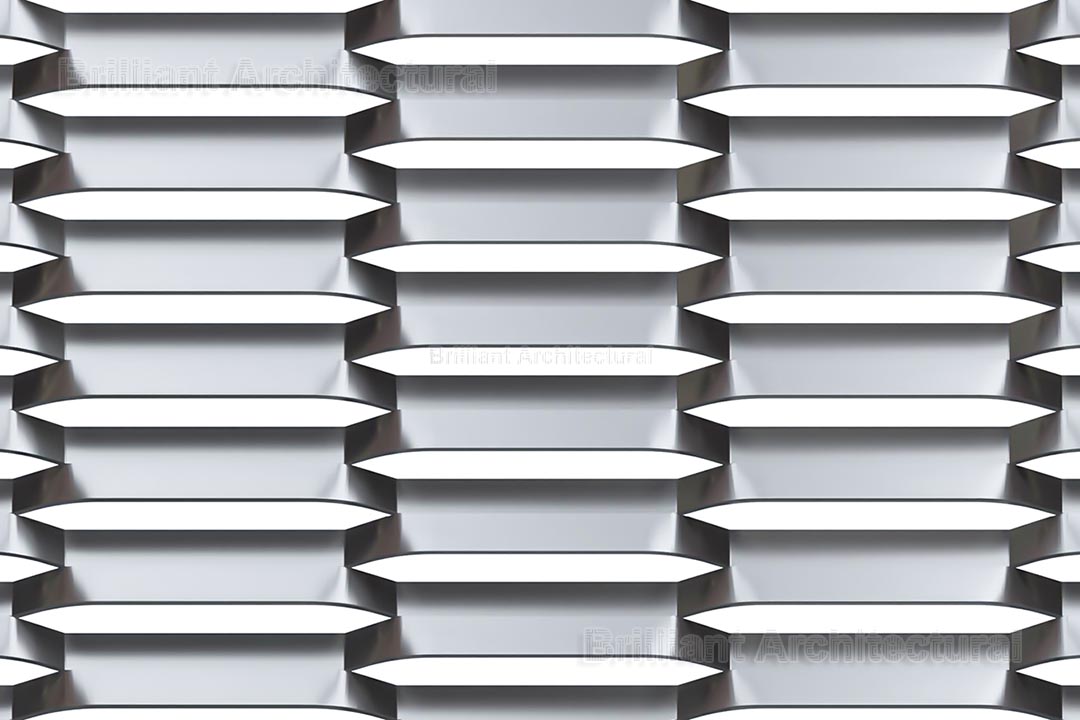

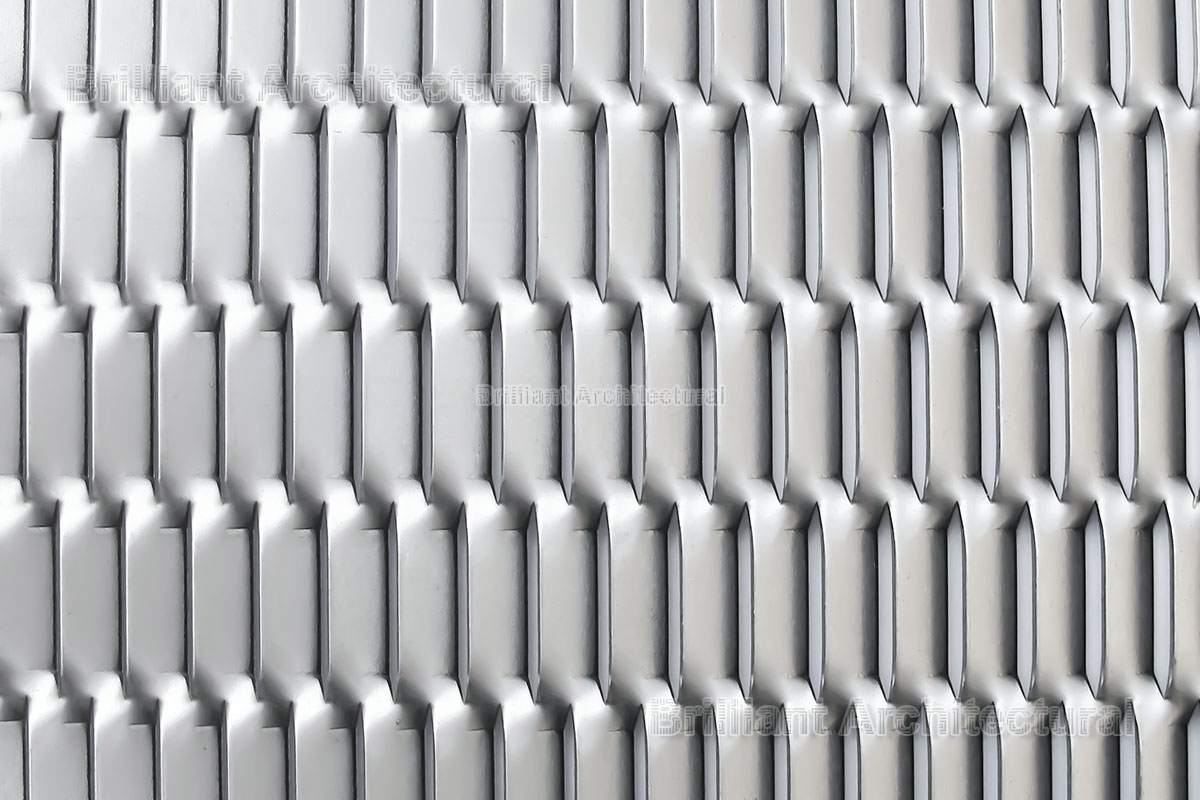

Fermi-22535 Architectural Expanded Mesh Cladding Panels

Fermi-22535 architectural expanded mesh cladding panels feature a diamond pattern with a long way of 225 mm and a short way of 35 mm, providing a front open area of 28% and an impressive airflow rate of 80%. These panels are ideal for exterior cladding, offering a blend of durability, ventilation, and modern aesthetics. The open area allows for significant airflow and natural light while still providing protection and privacy. Made from high-quality materials, these panels are resistant to corrosion and weathering, making them suitable for outdoor applications. Available in various finishes, the mesh can be customized to complement any architectural design, enhancing both the functionality and visual appeal of buildings.

Fermi-22535

Technical Specifications

architectural expanded metal mesh design drawing

Specifications of Fermi-22535 Architectural Expanded Mesh Cladding Panels

Product Name	Fermi-22535-1	Fermi-22535-2	Fermi-22535-3
Material	Aluminum, Stainless Steel	Aluminum, Stainless Steel	Aluminum, Stainless Steel
LWD, mm (in)	225 (8.86)	225 (8.86)	225 (8.86)
SWD, mm (in)	35 (1.38)	35 (1.38)	35 (1.38)
Strand Width, mm (in)
Strand Thickness, mm (in)	1.5 (.059)	2 (.079)	3 (.118)
Front Open Area	28%	28%	28%
Air Open	80%	80%	80%
Max Width
Max Length
Approx. Weight, kg/m2 (lb/ft2), Aluminum	3.5 (.72)	4.6 (.94)	7 (1.43)
Approx. Weight, kg/m2 (lb/ft2), Steel	10 (2.05)	13.5 (2.77)	20 (4.1)
