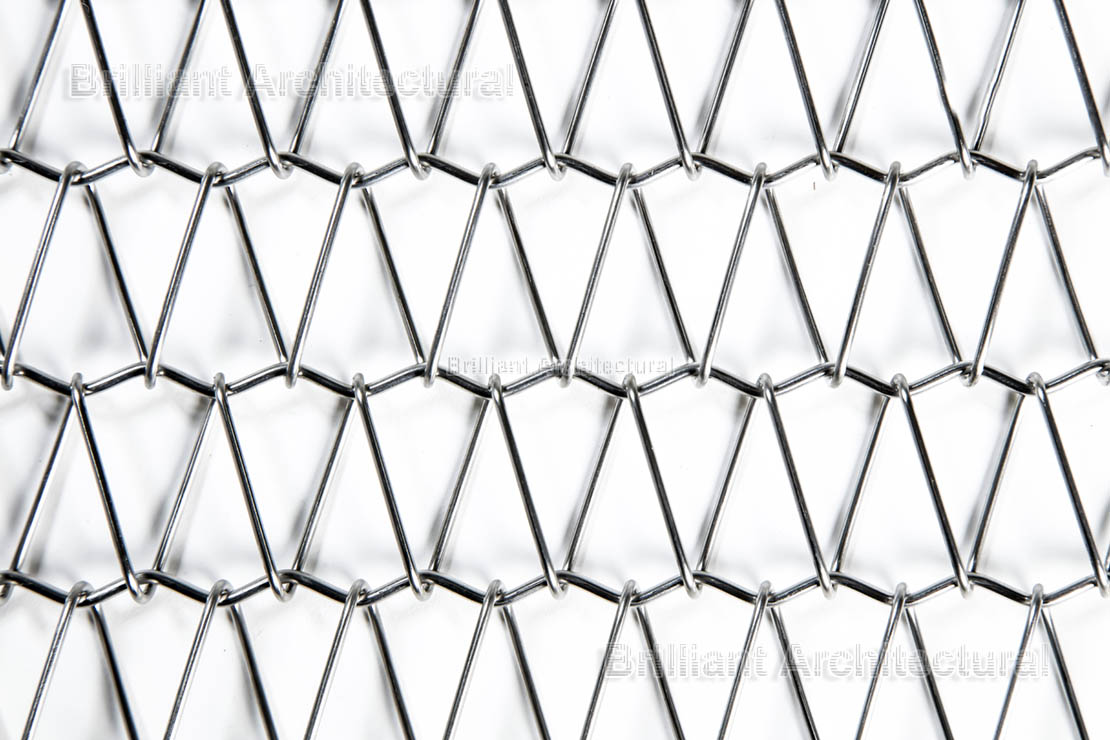

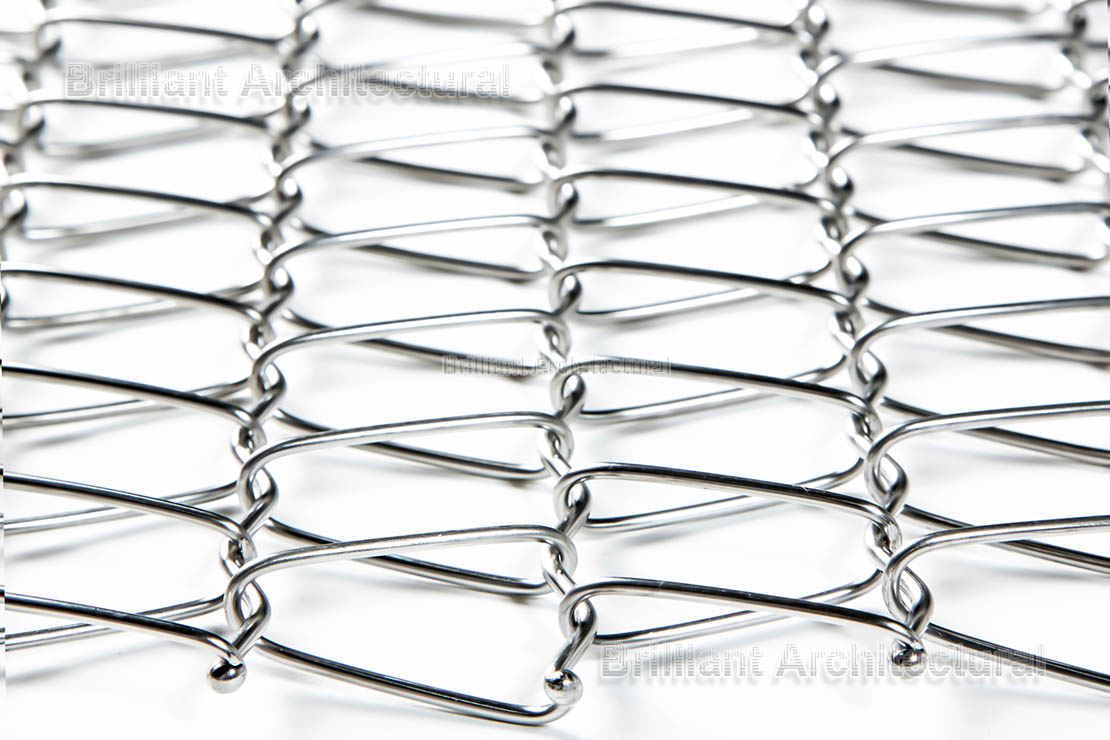

Tesla-2536 Decorative Architectural Flexible Steel Mesh

Tesla-2536 Decorative Architectural Flexible Steel Mesh is designed for versatility and durability in a range of architectural applications. Featuring 2mm spiral wires and 2.5mm cross wires, the mesh provides a strong yet flexible structure that can easily bend and adapt to different surfaces. With a pitch of 25 x 36 mm and a 76% open area, it offers excellent airflow and light transmission, making it ideal for facades, partitions, and decorative installations. The flexible design ensures easy installation and the steel construction delivers long-lasting performance with resistance to wear and corrosion. This architectural flexible steel mesh is perfect for modern architectural designs requiring both functionality and visual appeal.

Tesla-2536

Technical Specifications

Architectural Flexible Steel Mesh Design Drawing

Specifications of Tesla-0606 Architectural Flexible Metal Mesh Fabric

Product Name	Tesla-2536
Material	Stainless Steel, Aluminum, Brass, Copper
Spiral Wire (d1), mm (in)	2 (.079)
Cross Wire (d2), mm (in)	2.5 (.098)
Pitch (P1), mm (in)	25 (.98)
Pitch (P2), mm (in)	36 (1.42)
Open Area	76%
Max Rigid	On demand
Max Flex	On demand
Approx. Weight, kg/m2 (lb/ft2), Aluminum	1.22 (.25)
Approx. Weight, kg/m2 (lb/ft2), Steel	3.6 (.74)
Approx. Weight, kg/m2 (lb/ft2), Brass	3.83 (.784)
Approx. Weight, kg/m2 (lb/ft2), Copper	4.05 (0.83)
