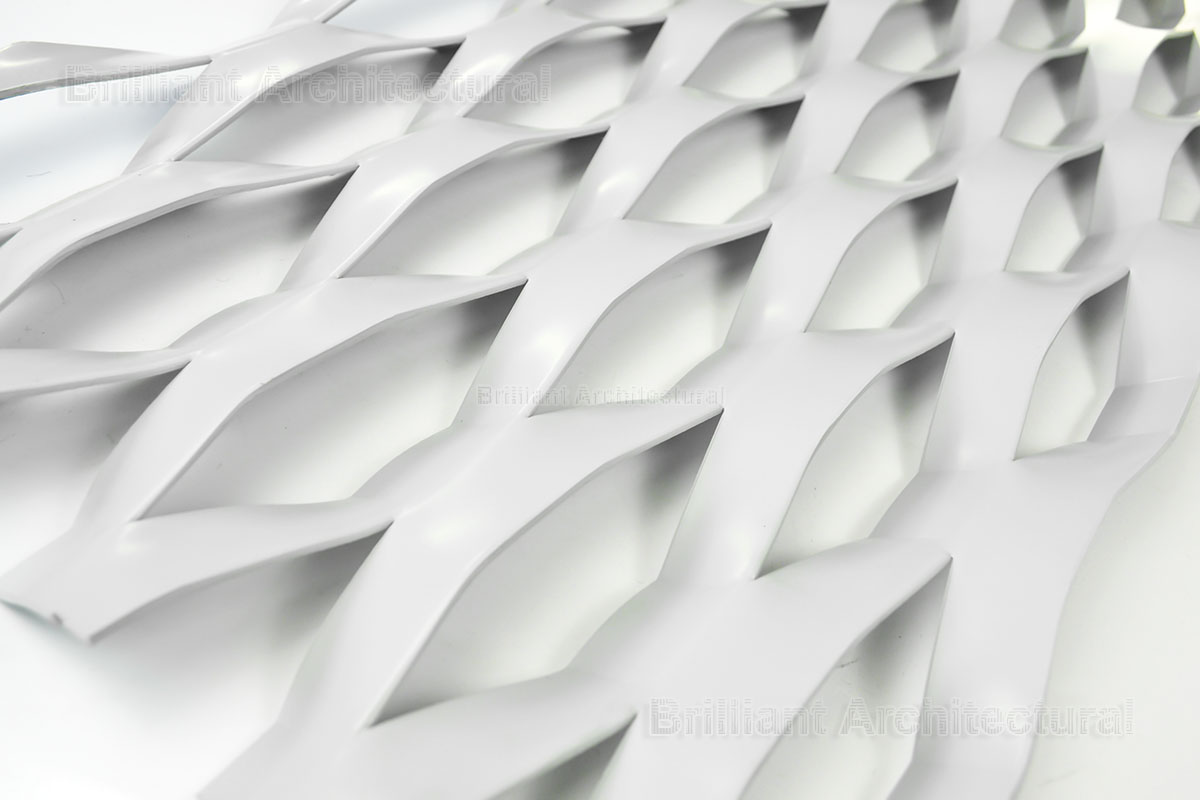

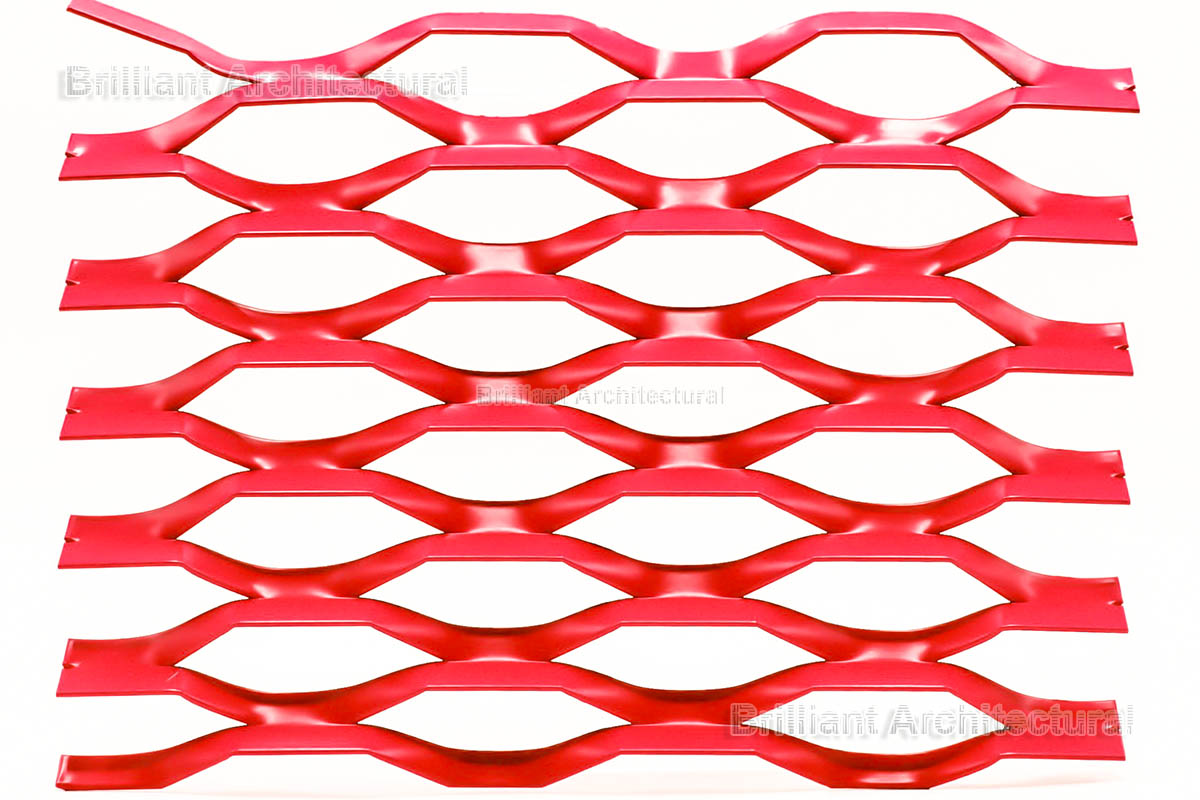

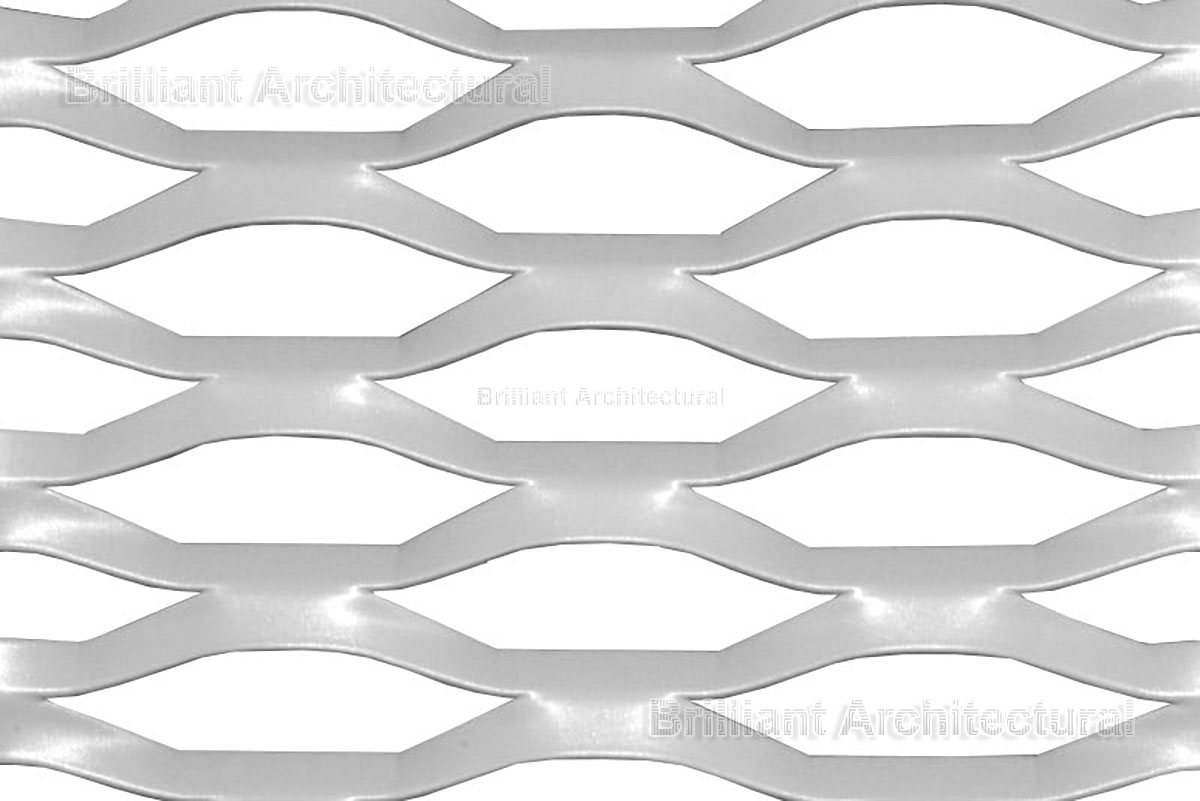

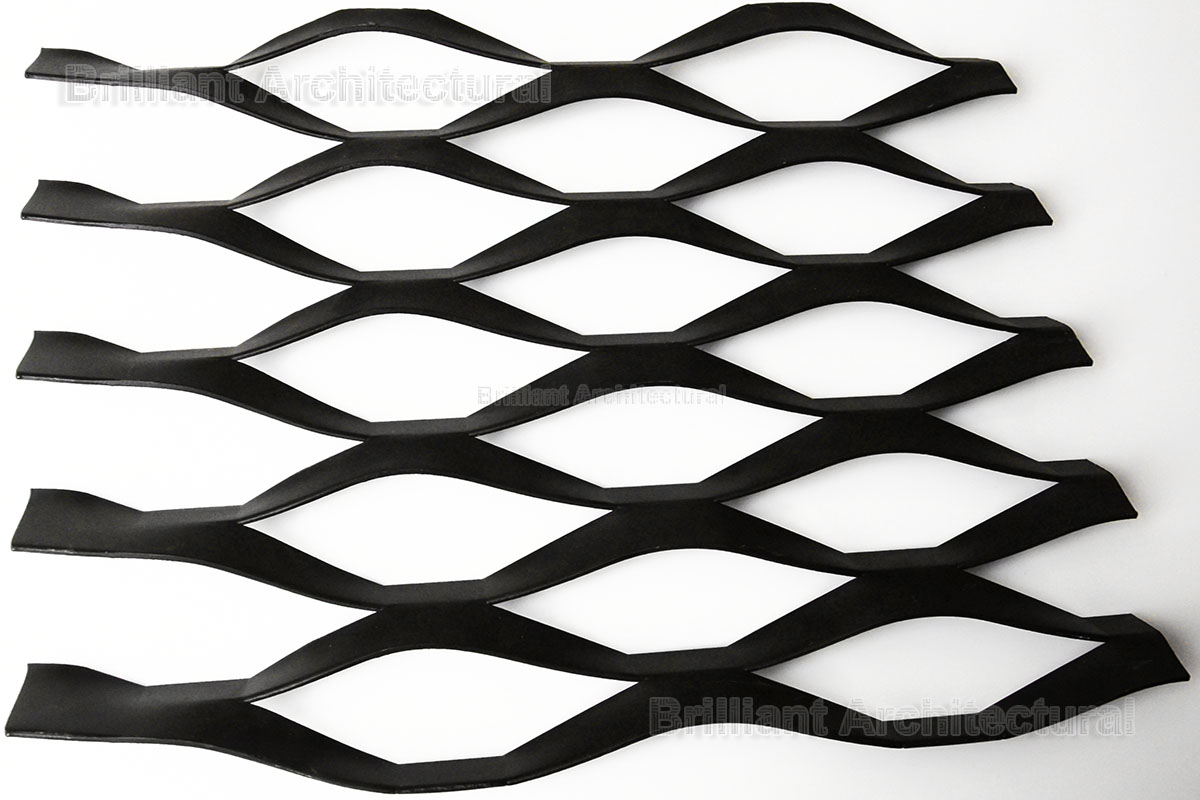

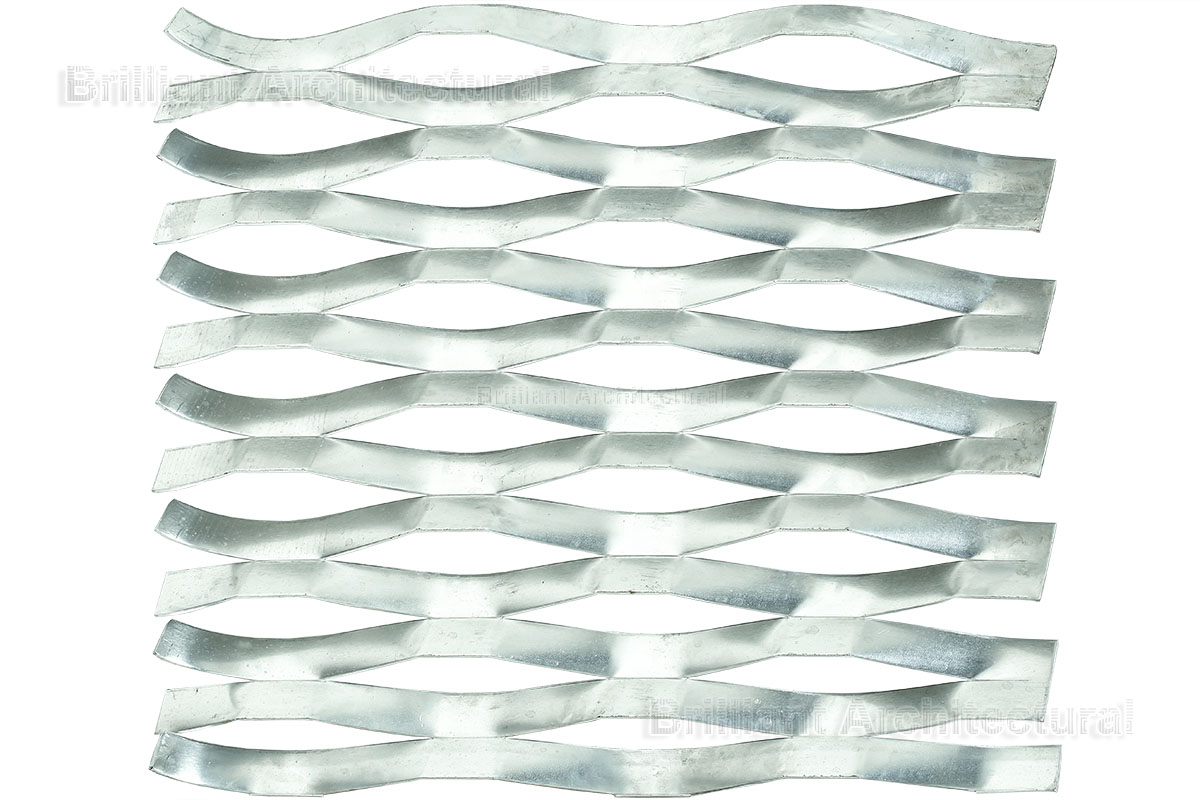

Fermi-10035 Expanded Architectural Metal Diamond Mesh

Fermi-10035 expanded architectural metal diamond mesh features a diamond pattern with a long way of 100 mm and a short way of 35 mm, supported by a robust strand width of 9 mm. With a front open area of 50%, this mesh provides limited visibility and airflow, making it ideal for applications where privacy and security are essential, such as architecture wall cladding, fencing, metal facades, and partitions. Its durable structure ensures strength and longevity, even in demanding environments. Additionally, the mesh can be customized with various finishes, such as powder coating or anodizing, to enhance its corrosion resistance and aesthetic appeal, making it suitable for both functional and decorative purposes in modern architectural designs.

Fermi-10035

Technical Specifications

architectural expanded metal mesh design drawing

Specifications of Fermi-10035 Expanded Architectural Metal Diamond Mesh

Product Name	Fermi-10035-1	Fermi-10035-2	Fermi-10035-3
Material	Aluminum, Stainless Steel	Aluminum, Stainless Steel	Aluminum, Stainless Steel
LWD, mm (in)	100 (2.48)	100 (2.48)	100 (2.48)
SWD, mm (in)	35 (1.02)	35 (1.02)	35 (1.02)
Strand width, mm (in)	10 (.354)	10 (.354)	10 (.354)
Strand Thickness, mm (in)	1.5 (.059)	2 (.079)	3 (.118)
Front Open Area	50%	50%	50%
Air Flow	70%	70%	70%
Max Width
Max Length
Approx. Weight, kg/m2 (lb/ft2), Aluminum	2.2 (.45)	3 (.61)	4.5 (.92)
Approx. Weight, kg/m2 (lb/ft2), Steel	6.5 (1.33)	8.5 (1.74)	13 (2.66)
