Fermi-6231 Architectural Expanded Metal Mesh Cladding Panel

Fermi-6231 architectural expanded metal mesh cladding panels feature a diamond pattern with a long way of 62 mm and a short way of 31 mm, offering a front open area of 14% and an airflow rate of 58%. These panels are ideal for both decorative and functional cladding applications, providing durability, ventilation, and visual appeal. The smaller open area ensures added privacy and protection while allowing sufficient airflow. Constructed from high-quality materials, the panels are weather-resistant and can be customized with various finishes, making them a versatile choice for enhancing building exteriors and facades.

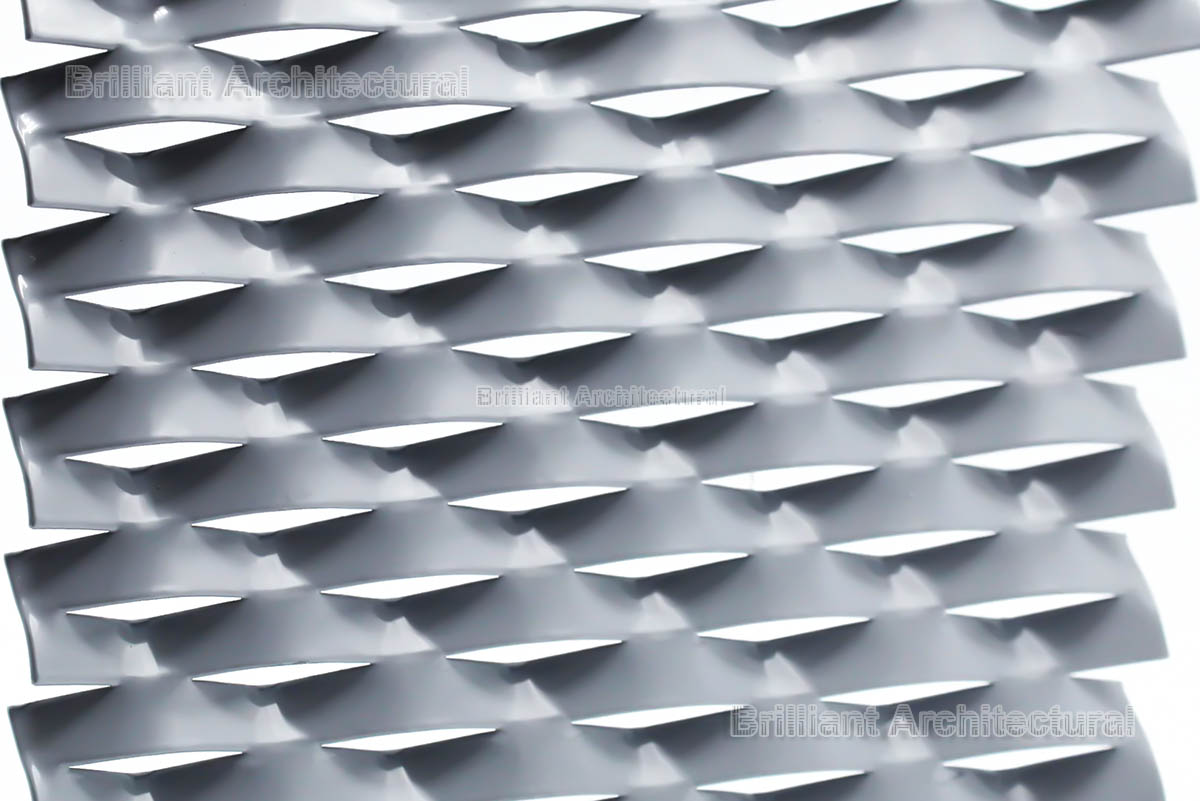

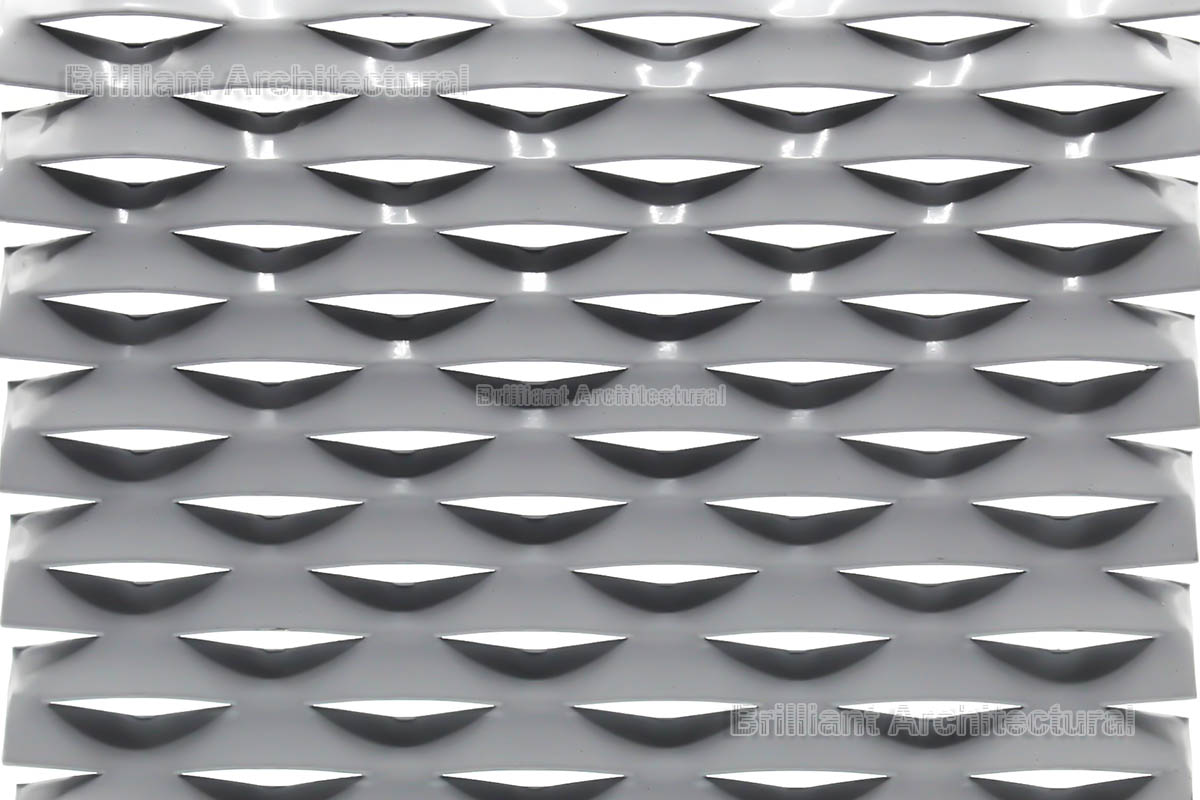

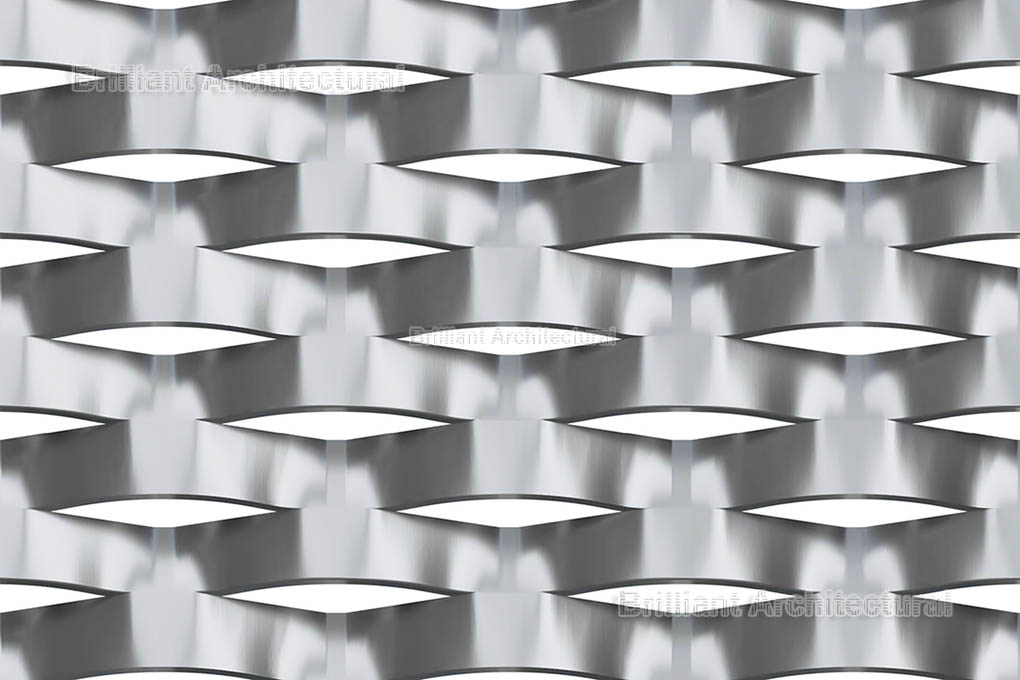

Fermi-6231 Fermi-6231 Fermi-6231 Aluminum Expanded Metal Mesh Cladding Panel Expanded Architectural Metal Mesh Cladding Panel Architectural Expanded Metal Mesh Cladding Panel

Technical Specifications

architectural expanded metal mesh design drawing

Specifications of Fermi-6231 Architectural Expanded Metal Mesh Cladding Panel

Product Name Fermi-6231-1 Fermi-6231-2 Fermi-6231-3
Material Aluminum, Steel Aluminum, Steel Aluminum, Steel
LWD, mm (in) 62 (2.44) 62 (2.44) 62 (2.44)
SWD, mm (in) 31 (1.22) 31 (1.22) 31 (1.22)
Strand Width, mm (in)
Strand Thickness, mm (in) 1.5 (.059) 2 (.079) 3 (.118)
Front Open Area 14% 14% 14%
Air Open 58% 58% 58%
Max Width
Max Length
Approx. Weight, kg/m2 (lb/ft2), Aluminum 4 (.82) 5 (1.02) 7.5 (1.54)
Approx. Weight, kg/m2 (lb/ft2), Steel 11 (2.25) 14.5 (2.97) 21.5 (4.4)
