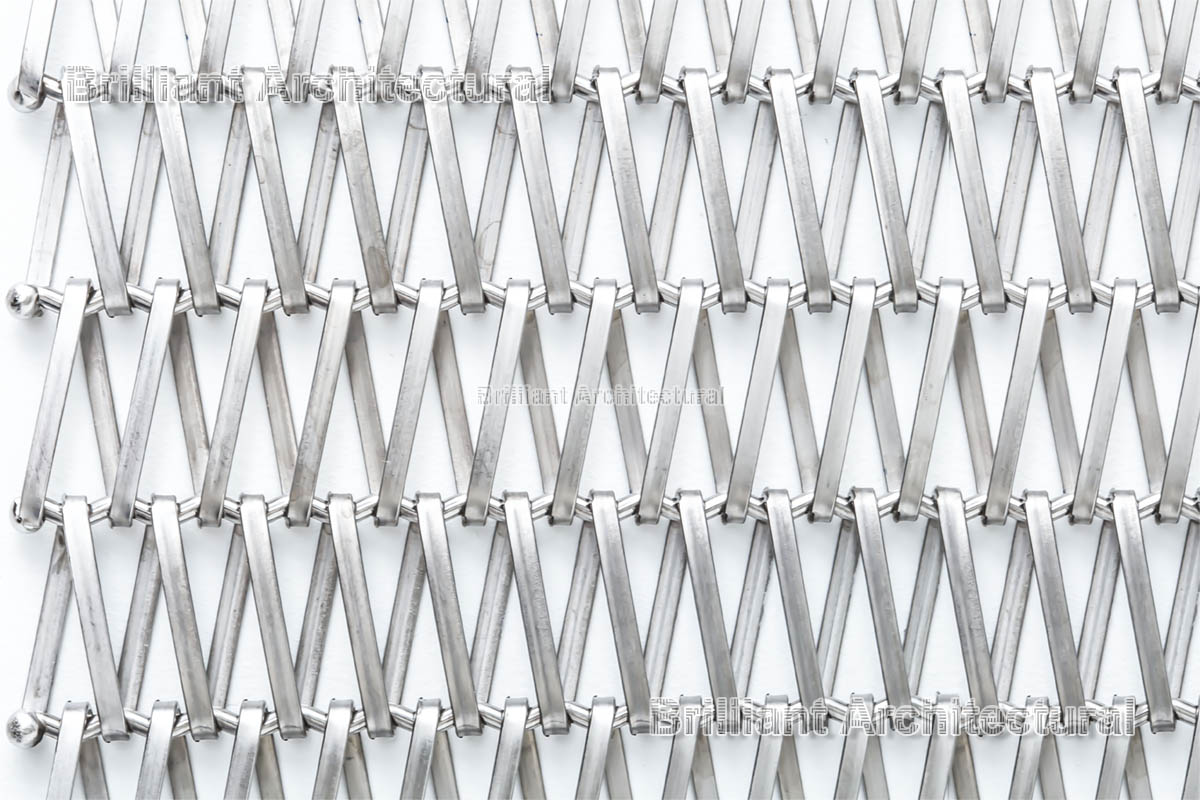

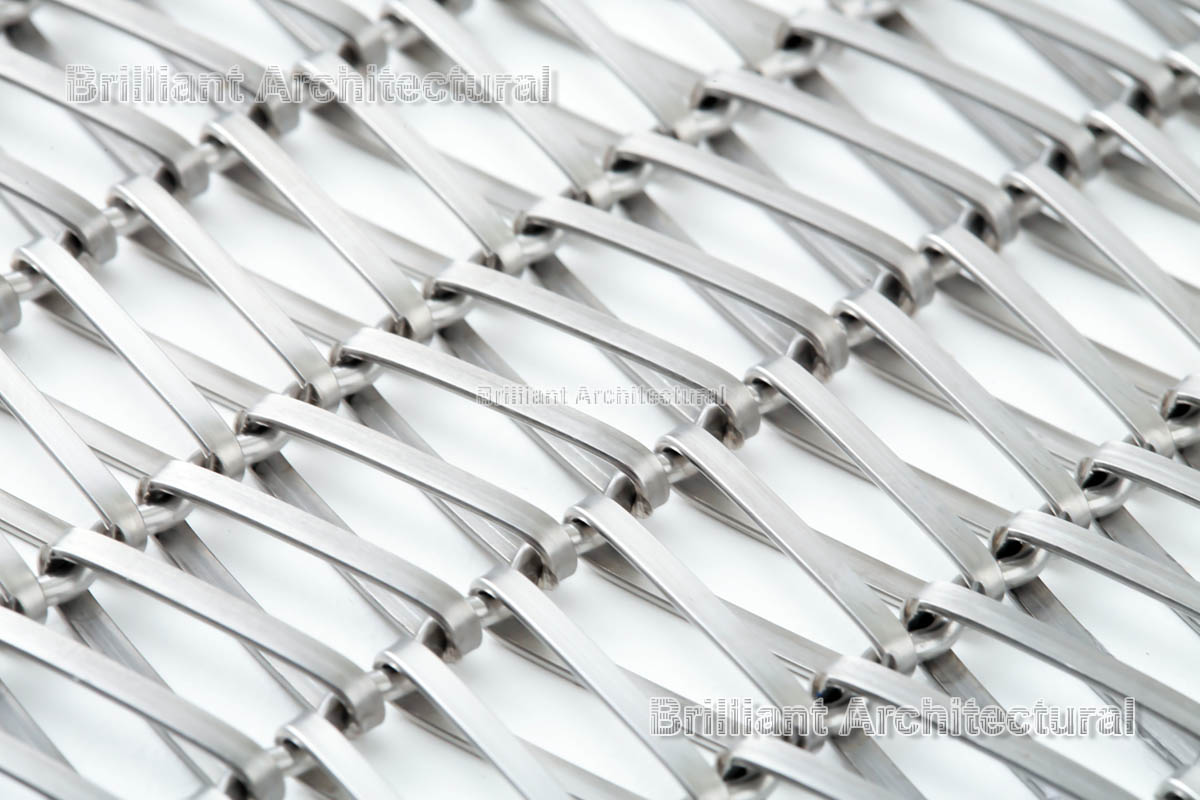

Tesla-0821 Architectural Flexible Wire Mesh Screen for Cladding Facade

Tesla-0821 Architectural Flexible Wire Mesh Screen is specifically designed for cladding facades, offering flexibility and adaptability to various architectural surfaces. The mesh features flat spiral wires with a size of 2.5 x 0.8 mm and cross wires with a 2mm diameter, creating a sleek and modern design. With a pitch of 8.5 x 21 mm and a 45% open area, the mesh allows for moderate light transmission and airflow, making it suitable for both functional and decorative purposes. Its flexible structure makes it easy to install, conforming to curved or irregular surfaces. Ideal for building facades, architecture claddings, partitions, and other design elements, it combines strength, durability, and aesthetic appeal.

Tesla-0821

Technical Specifications

Stainless Steel Flexible Mesh Design Drawing

Specifications of Tesla-0821 Architectural Flexible Wire Mesh Screen for Cladding Facade

Product Name	Tesla-0821
Material	Stainless Steel, Aluminum, Brass, Copper
Spiral Wire (d1), mm (in)	2.5 x 0.8 (.098 x .031)
Cross Wire (d2), mm (in)	2 (.079)
Pitch (P1), mm (in)	8.5 (.335)
Pitch (P2), mm (in)	21 (.827)
Open Area	45%
Max Rigid	On demand
Max Flex	On demand
Approx. Weight, kg/m2 (lb/ft2), Aluminum	2.2 (.45)
Approx. Weight, kg/m2 (lb/ft2), Steel	6.5 (1.74)
Approx. Weight, kg/m2 (lb/ft2), Brass	6.91 (1.42)
Approx. Weight, kg/m2 (lb/ft2), Copper	7.5 (1.54)
