Fleming-407 Architectural Decorative Metal Mesh Screen Sheets

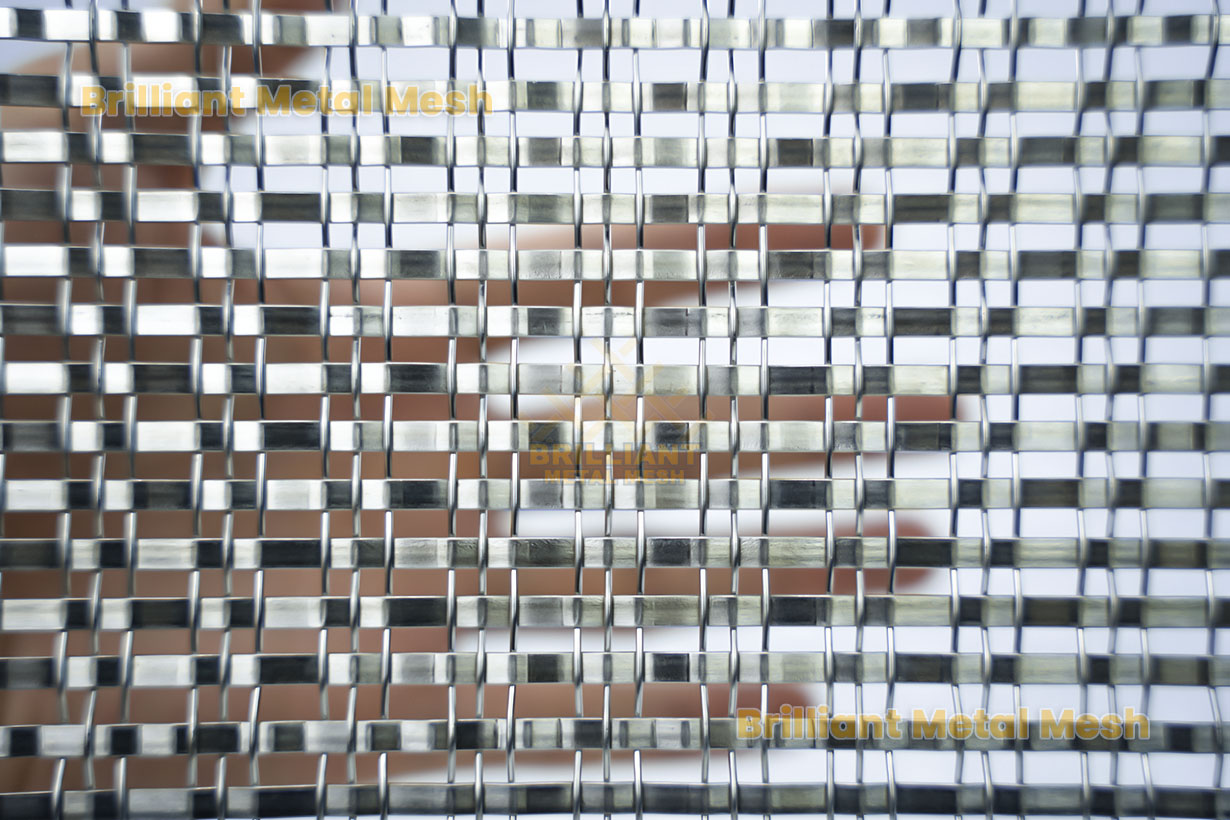

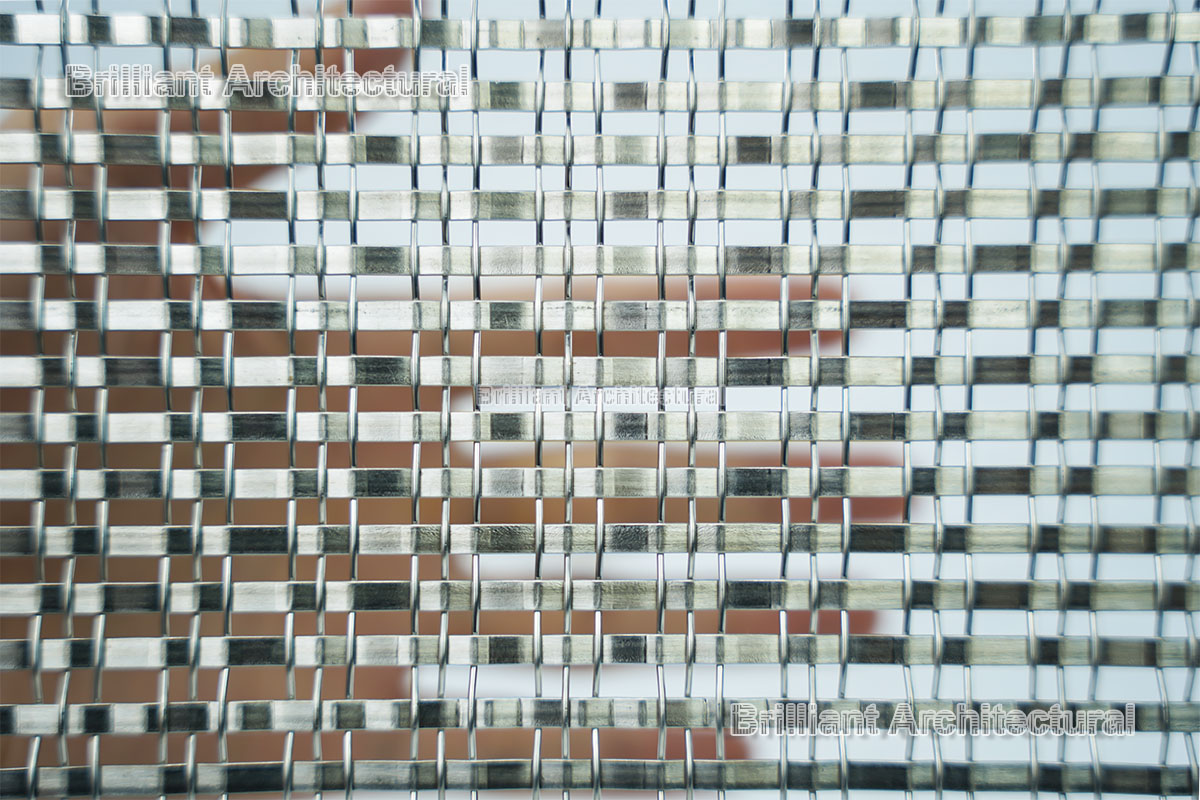

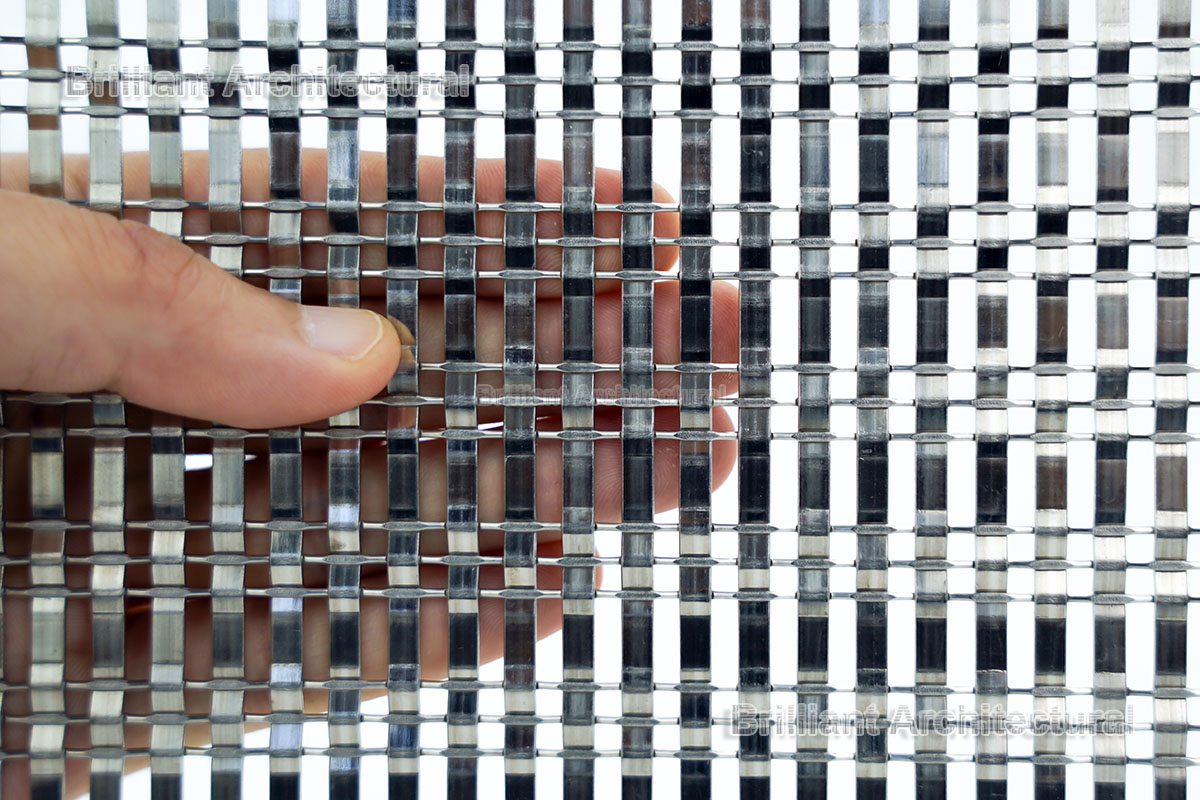

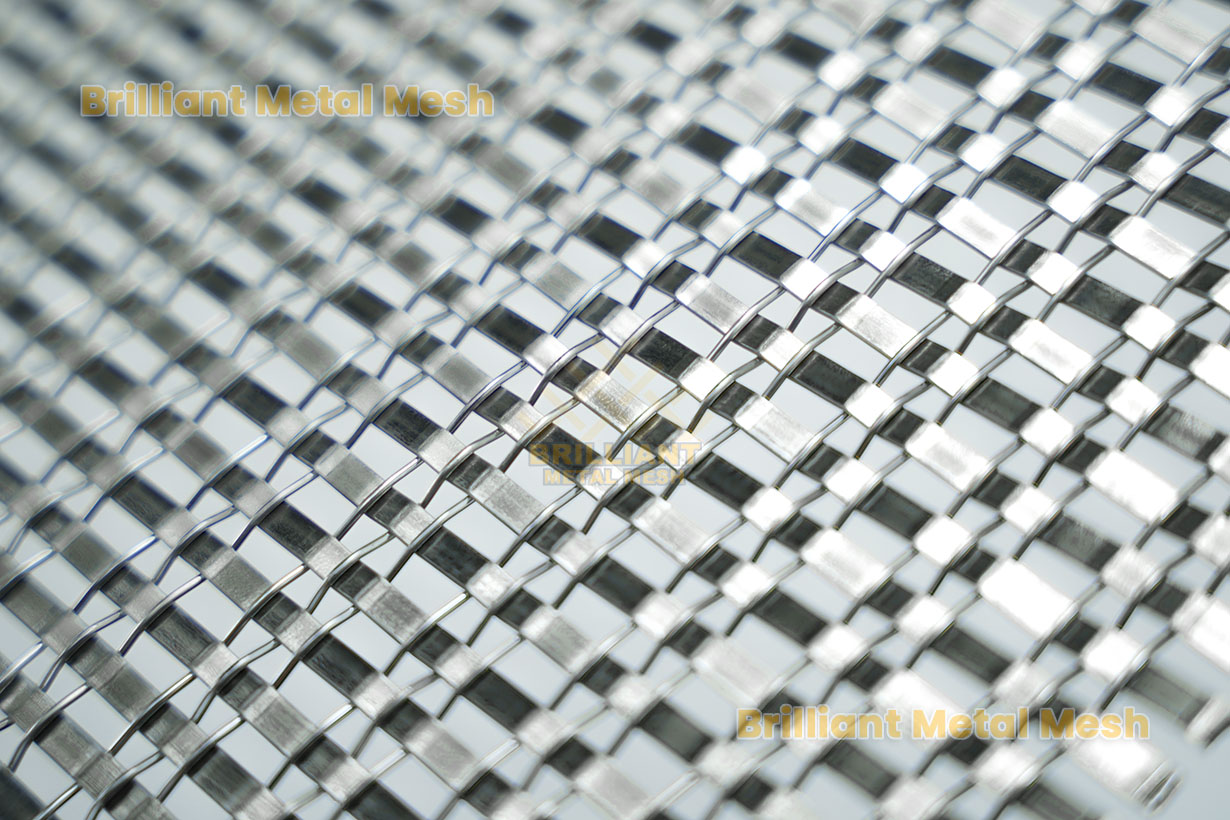

The Fleming series decorative architectural metal mesh is expertly woven from stainless steel flat wires and filaments, forming a dynamic pattern of small and large openings. This intricate design not only adds a touch of elegance but also enhances the mesh’s versatility, making it suitable for a wide range of architectural and decorative applications. The combination of flat wires and filaments creates a unique texture that blends strength with visual appeal, ideal for use in facades, partitions, and interior accents where both functionality and aesthetics are key.

Fleming

Technical Specifications

Specifications of Fleming-407: Architectural Decorative Metal Mesh

Product Name	Fleming-407
Material	SS 304/316
Wire Size (d1), mm (in)	1 (.039)
Wire Size (d2), mm (in)	4 (.157)
Opening (O1), mm (in)	10 (.394)
Opening (O2), mm (in)	3 (.118)
Opening (O3), mm (in)	3 (.118)
Overall thickness, mm (in)	2 (.079)
Open Area	42 %
Max Width	1.2m (4 ft)
Max Length	2.8m (9 ft)
Approx. Weight, kg/m2 (lb/ft2)	5.1 (1.17)
