Kepler-9340 Flexible Stainless Steel Architectural Mesh

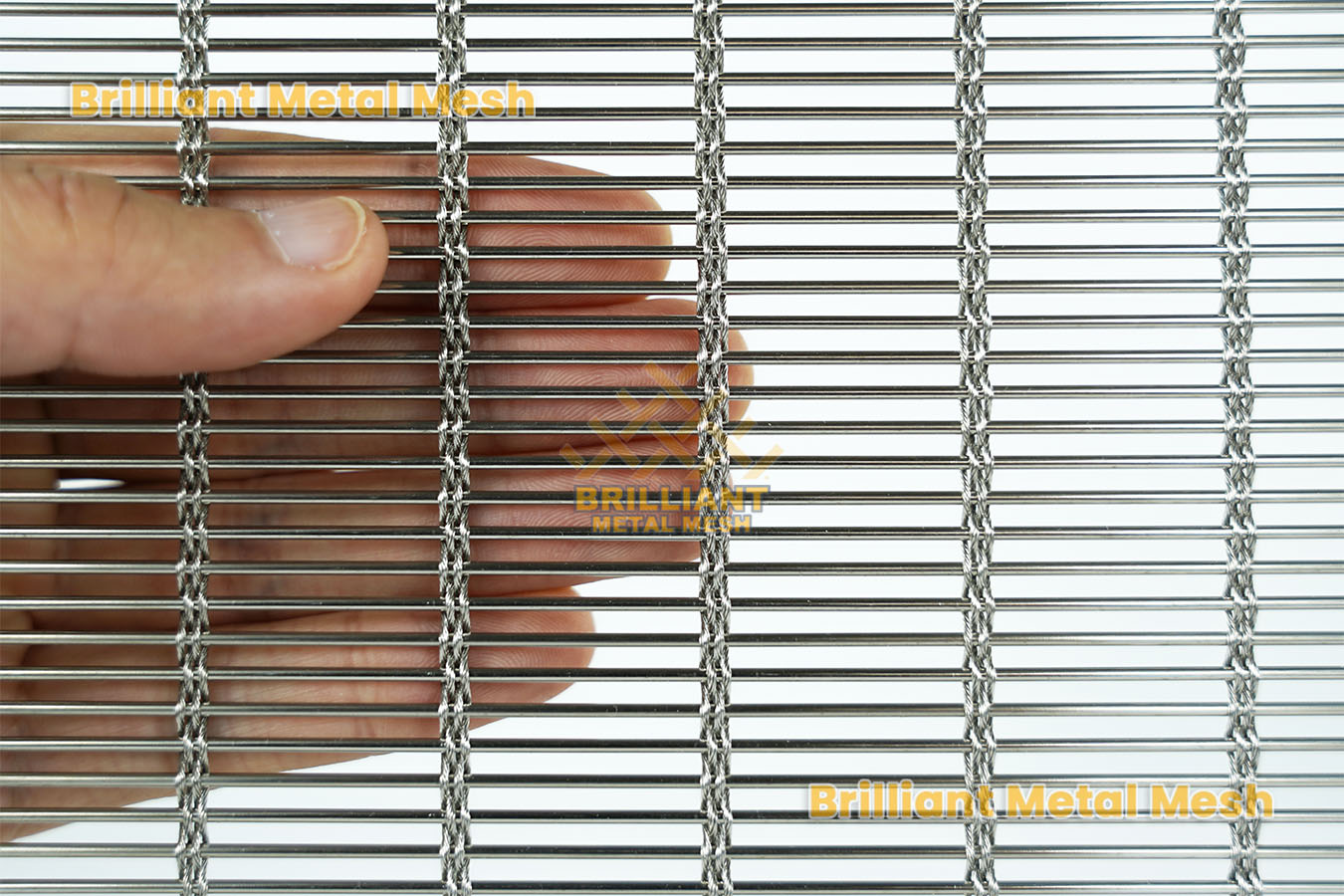

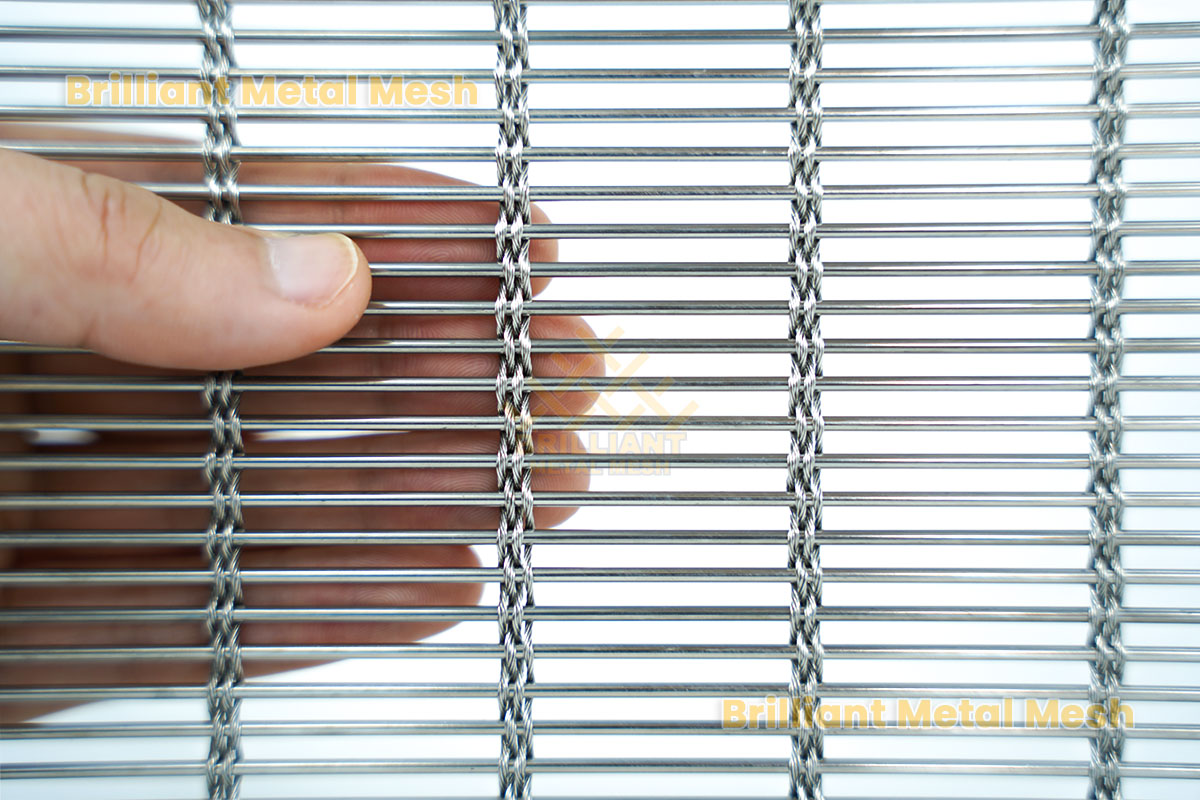

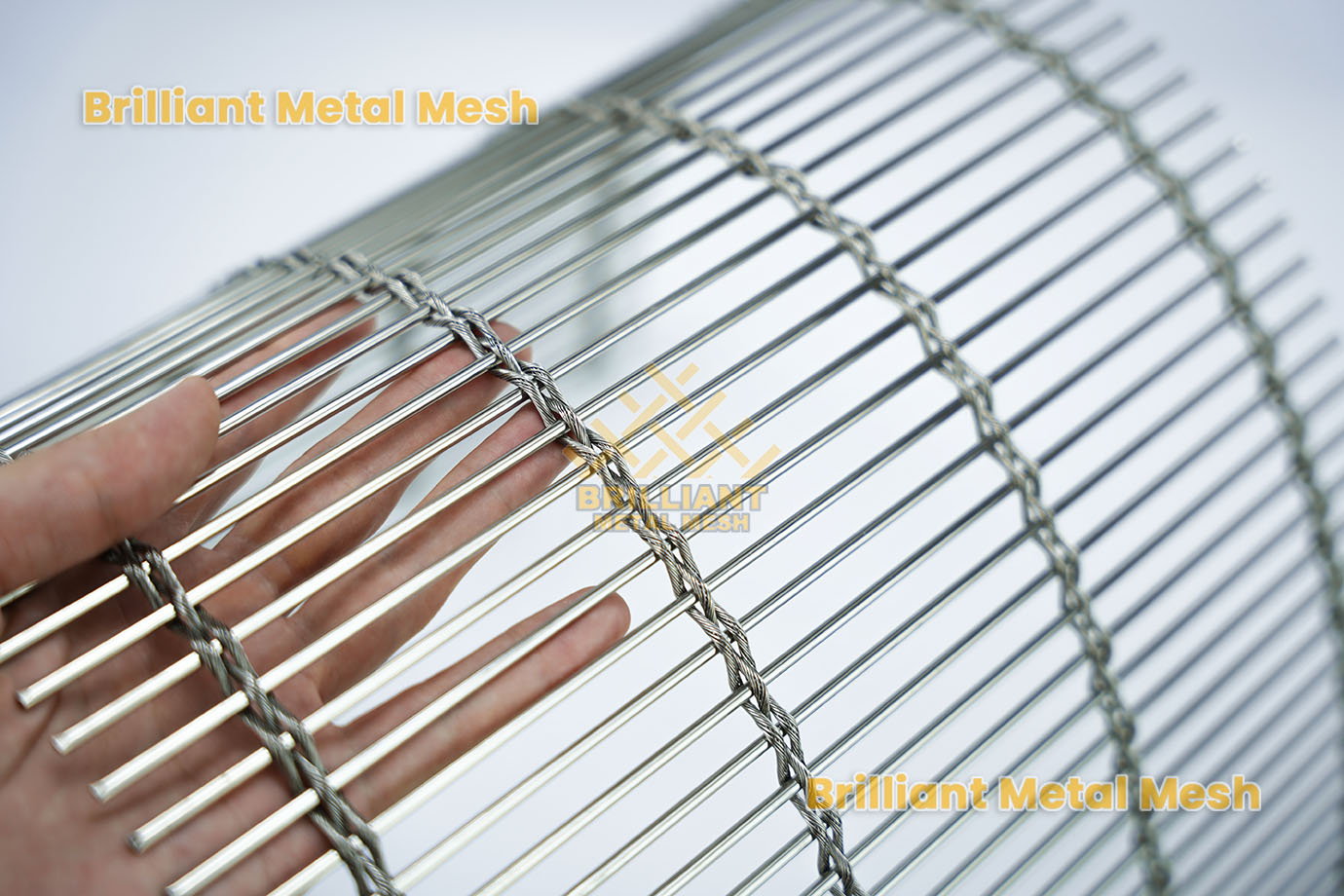

Kepler-9340 flexible stainless steel architectural mesh is expertly designed by weaving stainless steel wire rods with cables. The horizontal rods are securely interlocked by stainless steel wire ropes, which provide both stability and flexibility. This flexibility allows the mesh to be easily rolled into a compact form, making it possible to achieve extended lengths with ease.
Applications of Architectural Wire Mesh
The remarkable adaptability of Kepler series architectural wire mesh screen makes it ideal for a wide range of applications. It is commonly used in building cladding, architectural facades, garage roller shutters, and as wire mesh inserts in guardrails. Its versatility and elegant design make it a popular choice for diverse architectural needs.
Specifications of the Architectural Metal Mesh
Technical specifications of the decorative architectural metal mesh screen panels.
| Product Name | Kepler-9340 | Kepler-4232 | Kepler-3123 | Kepler-3124 |
| Material | 304/316 SS | 304/316 SS | 304/316 SS | 304/316 SS |
| Wire Rope Size (d1), mm (in.) | 2 (.0787) | 1.0 (.039) | 0.75 (.030) | 2 (.079) |
| Wire Rope Size (d2), mm (in.) | 9 (.354) | 4.3 (.169) | 3 (.118) | 6 (.236) |
| Wire Dia., mm (in.) | 3 (.118) | 2 (.0787) | 1.5 (.059) | 3 (.118) |
| Opening (O1), mm (in.) | 40 (.1.575 in) | 32 (1.26) | 23 (.91) | 73 (2.89) |
| Opening (O2), mm (in.) | 4 (.157 in) | 2.4 (0.94) | 2 (.079) | 7.3 (.287) |
| Nos of Ropes (d2) | 4 | 4 | 4 | 3 |
| Overall thickness, mm (in.) | ||||
| Open Area | 47% | 48% | 51% | 65% |
| Approx. Weight, kg/m2 (lb/ft2) | 10.5 (2.15) | 7.5 (1.54) | 5 (1.0) | 7.1 (1.45) |
Product Photos & Videos
Decorative architectural mesh photos and videos were taken by the Brilliant Metal team.-

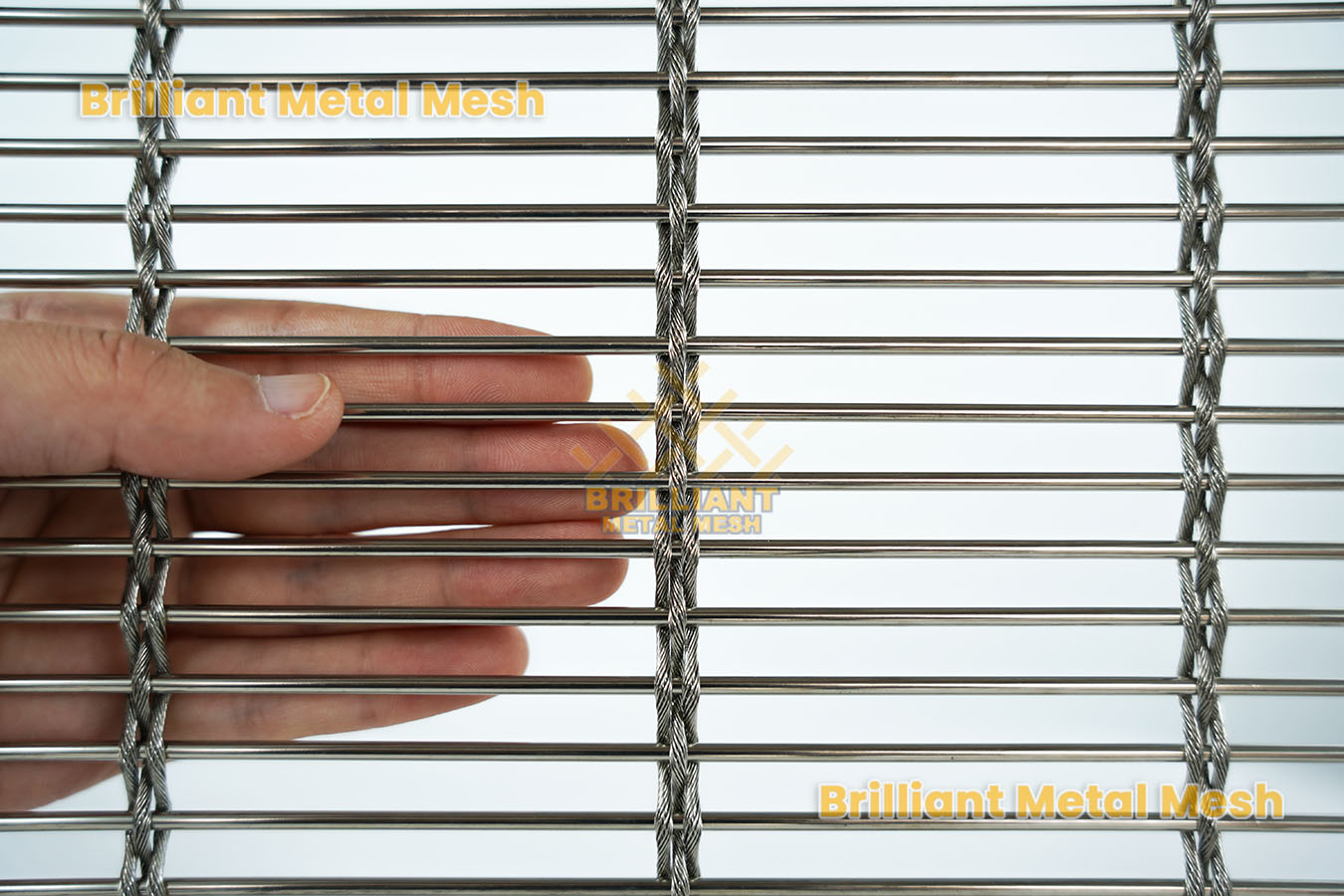

- Kepler-3124
-

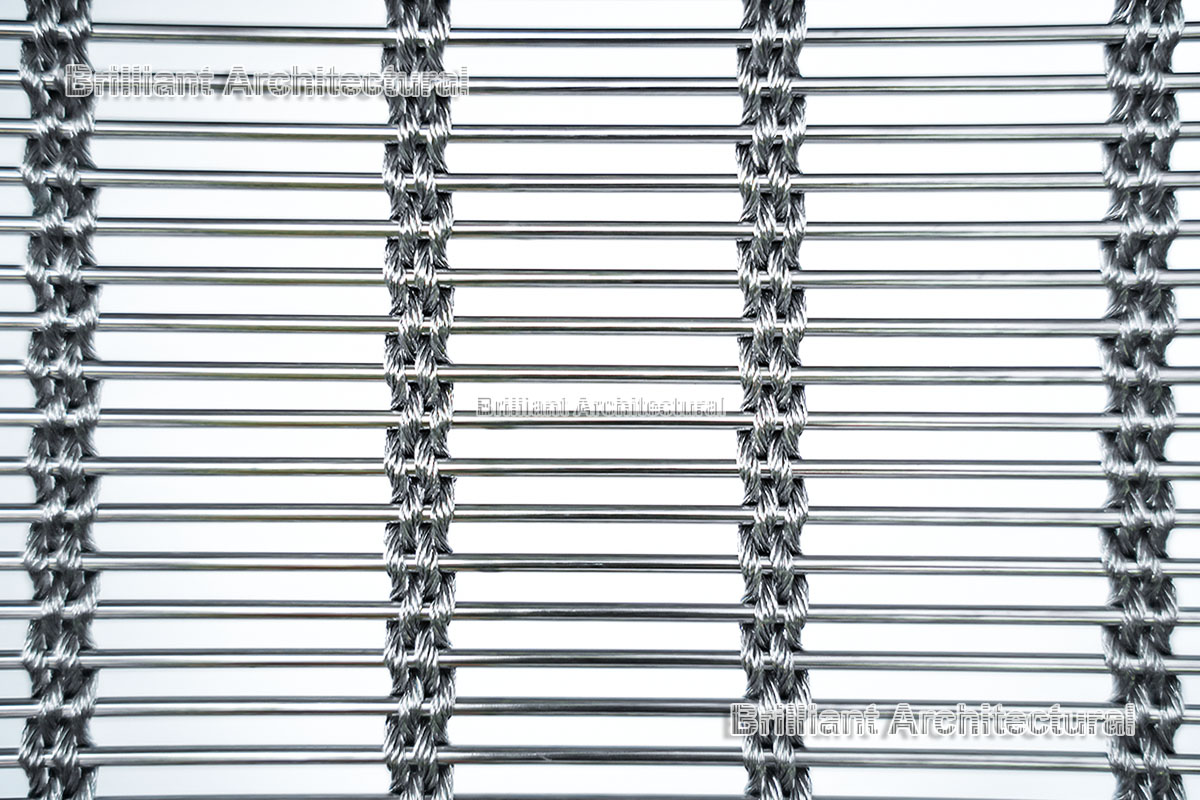

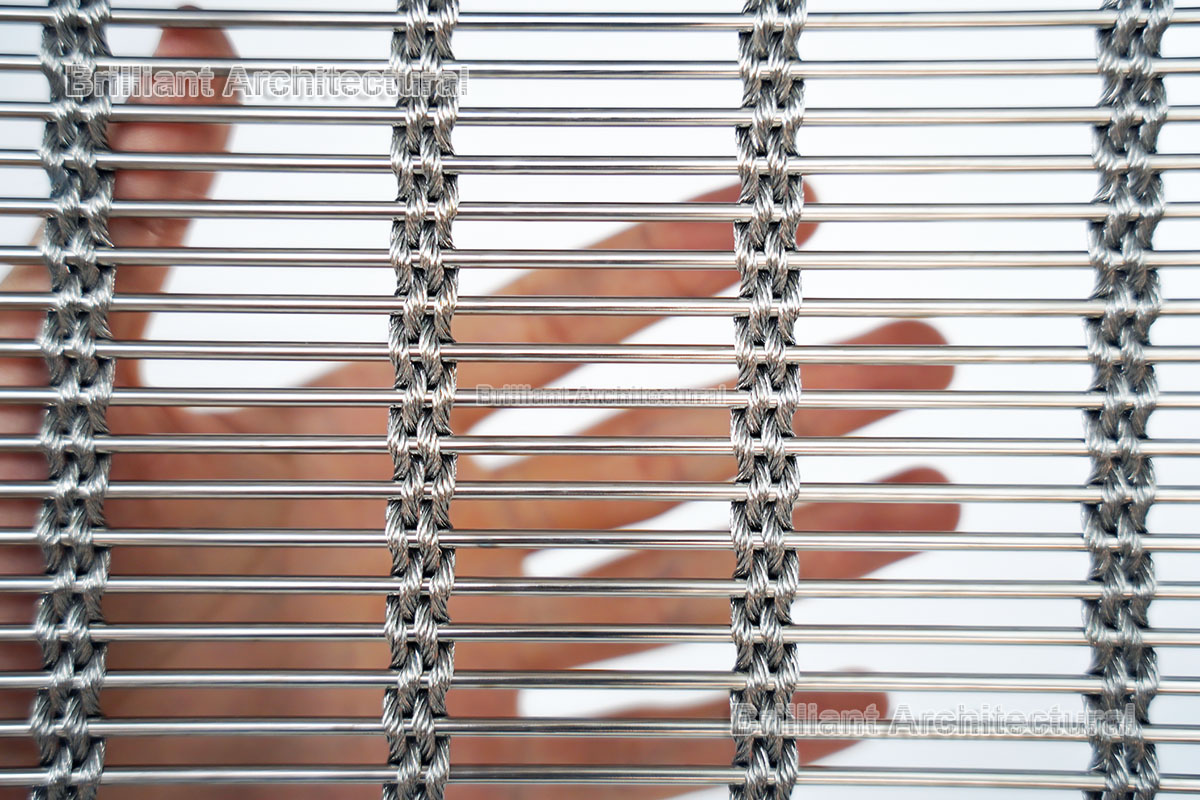

- Kepler-9340
-
- Kepler-4232
-
- Kepler-3123
Finishes of Architectural Mesh
Decorative architectural metal mesh is available in a variety of finishes and colors.
