Tesla-3460 Flexible Stainless Steel Mesh

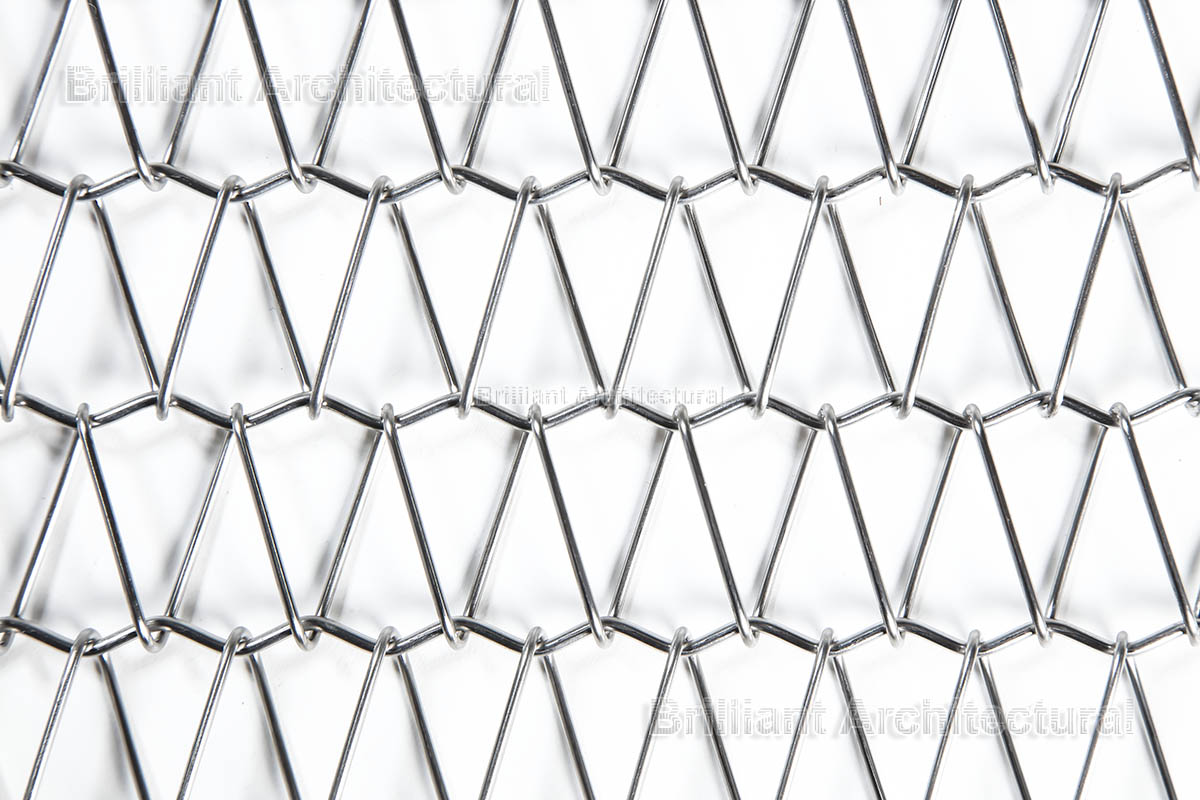

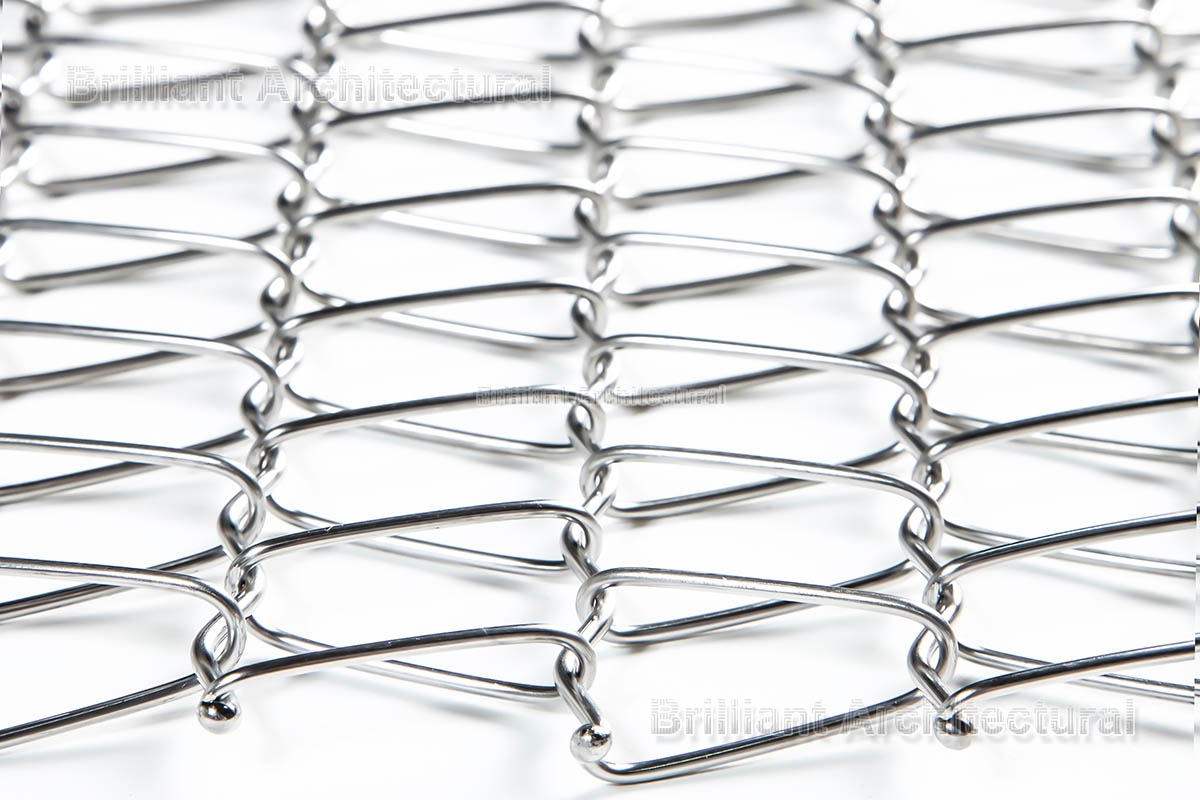

Tesla-3460 Flexible Stainless Steel Mesh is designed with flexibility and durability, making it ideal for various architectural and industrial applications. The mesh features 3mm spiral wires and 4.2mm cross wires, ensuring a sturdy yet adaptable structure. With a pitch of 60 x 34 mm and an open area of 75%, it allows for excellent light transmission and airflow. The flexible design makes it suitable for facades, partitions, and decorative cladding, while the stainless steel material offers corrosion resistance, low maintenance, and a modern, sleek appearance for both interior and exterior use.

Tesla-3460

Technical Specifications

Decorative Flexible Stainless Steel Mesh Drawing Design

Specifications of Tesla-3460 Decorative Flexible Stainless Steel Mesh

Product Name	Tesla-3460
Material	Stainless Steel, Aluminum, Brass, Copper
Spiral Wire (d1), mm (in)	3 (.118)
Cross Wire (d2), mm (in)	4.2 (.165)
Pitch (P1), mm (in)	34 (1.34)
Pitch (P2), mm (in)	60 (2.36)
Open Area	75%
Max Rigid	On demand
Max Flex	On demand
Approx. Weight, kg/m2 (lb/ft2), Aluminum	2.2 (.45)
Approx. Weight, kg/m2 (lb/ft2), Steel	6.5 (1.33)
Approx. Weight, kg/m2 (lb/ft2), Brass	6.91 (1.42)
Approx. Weight, kg/m2 (lb/ft2), Copper	7.31 (1.5)
