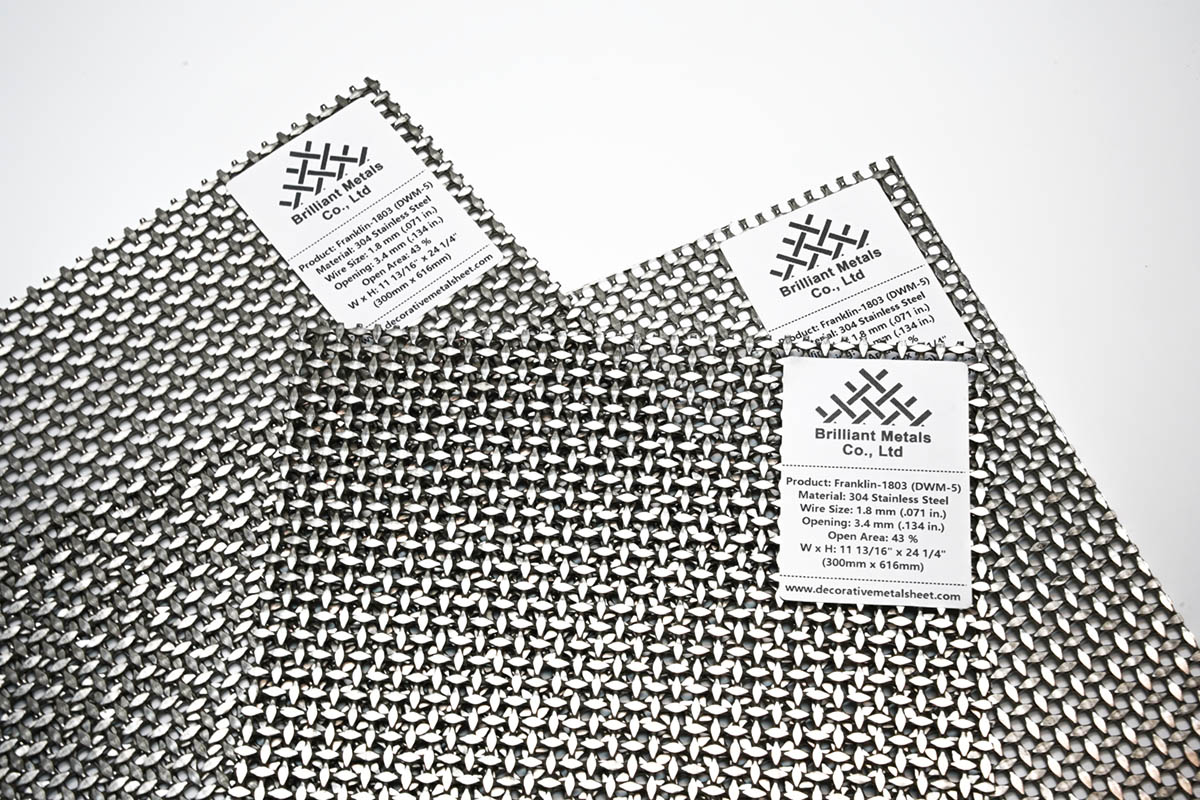

Franklin1803 Decorative Stainless Steel Wire Mesh Screen

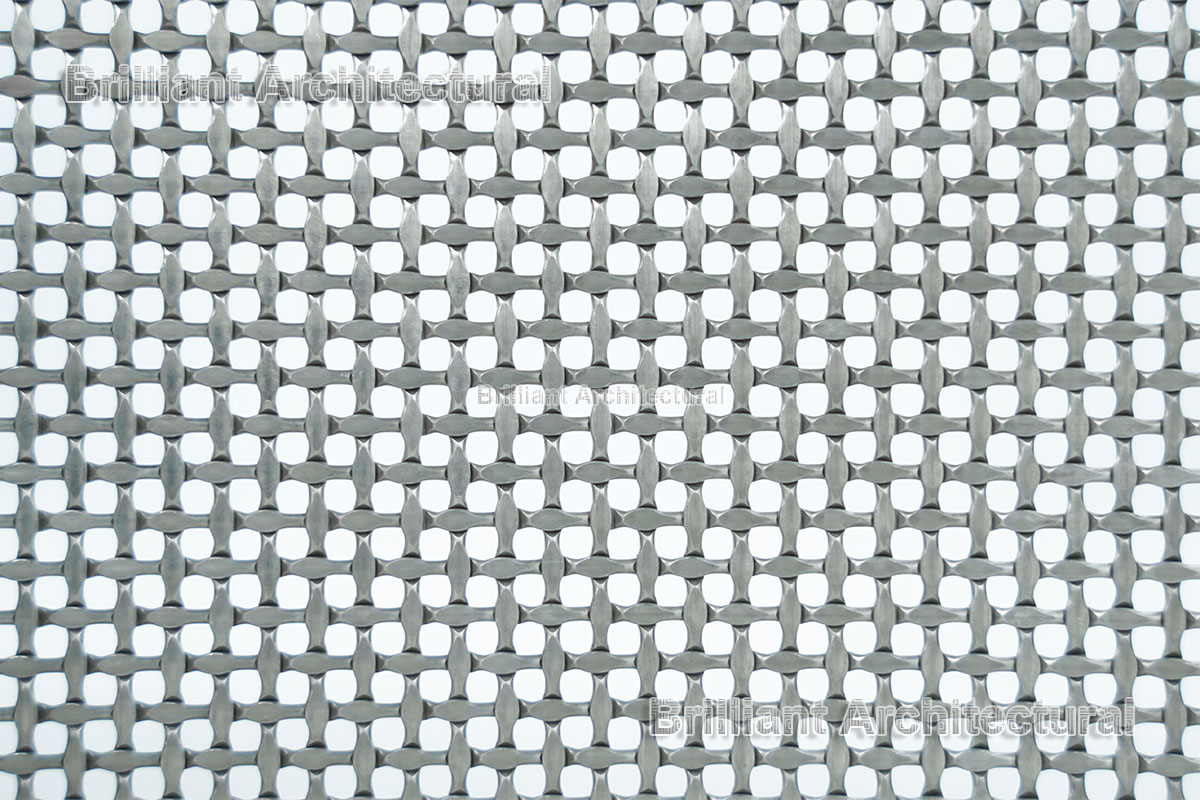

The Franklin1803 decorative stainless steel wire mesh screen is an architectural material characterized by its distinctive round openings, woven from stainless steel flat wire. With a 43% open area and a total thickness of 1.9mm (0.075 inches), this mesh offers a bright, smooth surface that enhances both form and function. The interplay between the oval cross-section steel wires and circular openings creates a unique and visually appealing pattern.

Franklin-1803

Technical Specifications

Specifications of Franklin Series Decorative Wire Grilles

Product Name	Franklin-1803
Material	304/316 Stainless Steel
Wire Diameter (a), mm (in)	1.8 (.071)
Opening (b), mm (in)	3.4 (.134)
Overall thickness, mm (in)	1.9 (.075)
Open Area	43 %
Max Width	1.2m (4 ft)
Max Length	2.8m (9 ft)
Approx. Weight, kg/m2 (lb/ft2)	5.94 (1.22)
