Tesla-1220 Architectural Flexible Metal Mesh

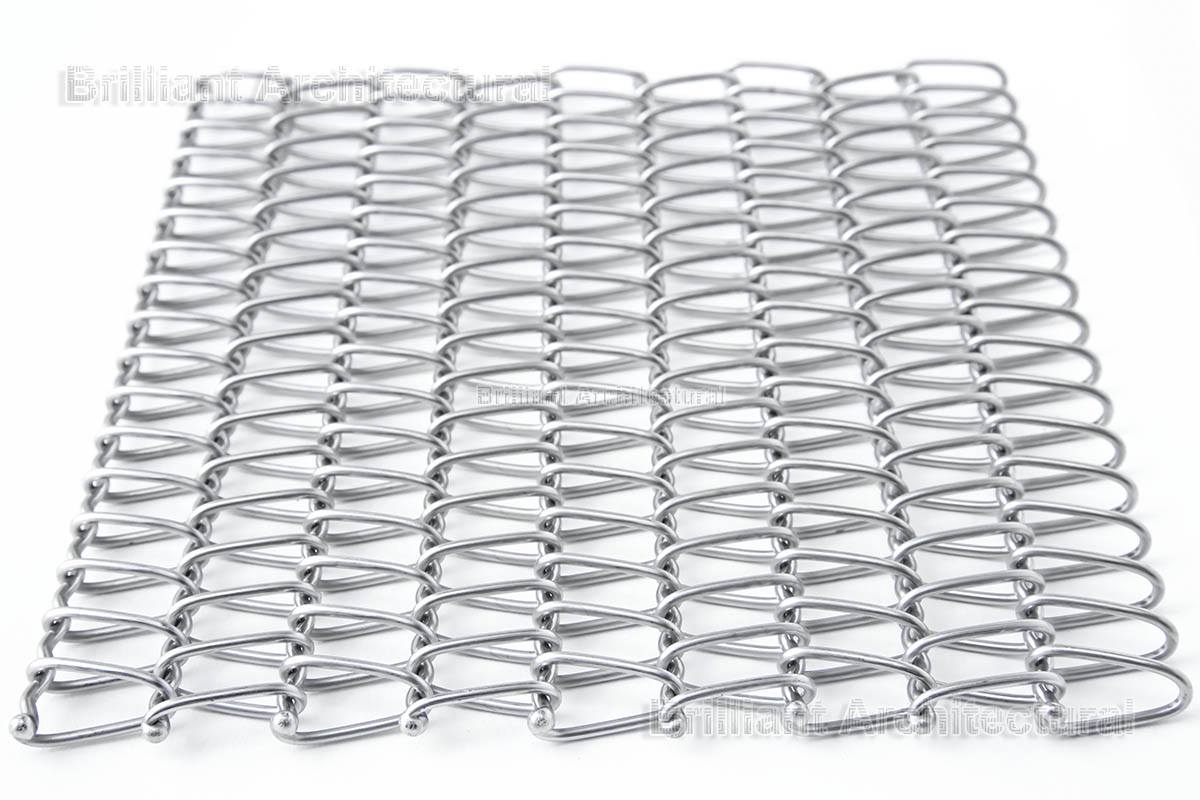

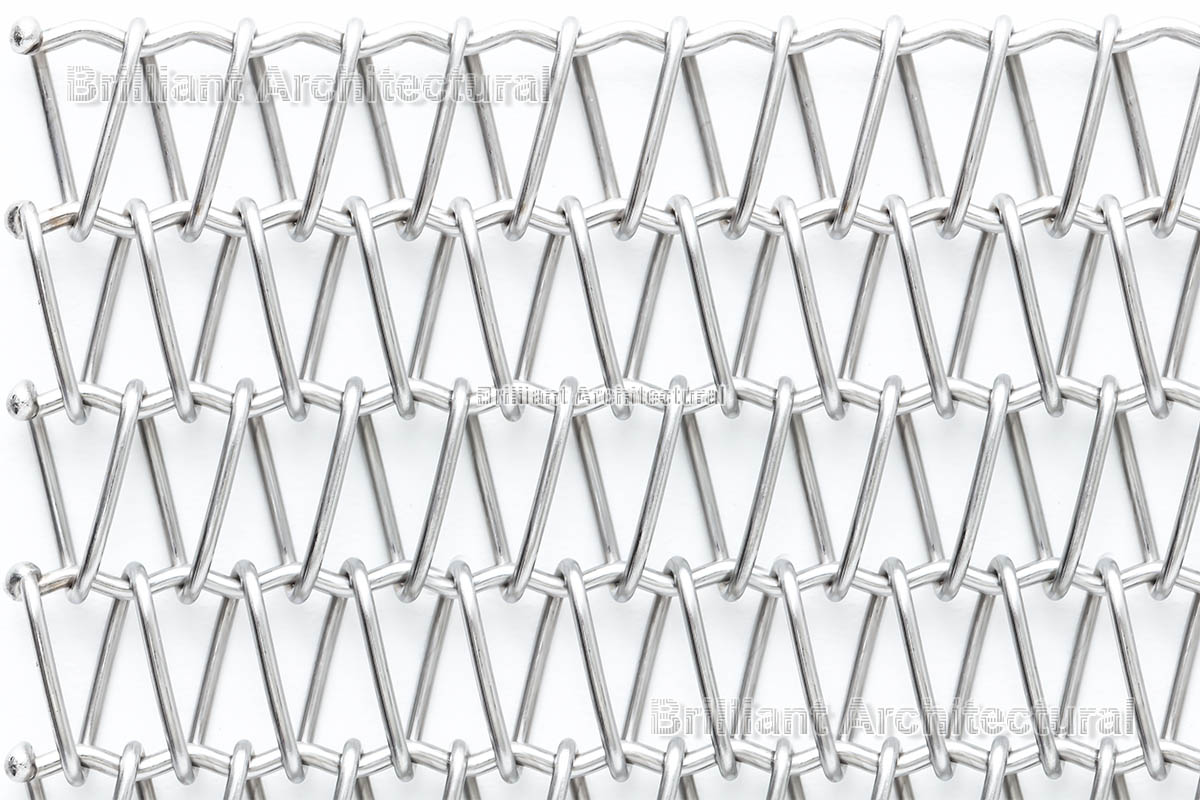

Tesla-1220 Architectural Flexible Metal Mesh is a versatile and bendable mesh designed for both functional and aesthetic architectural applications. Made with 2mm spiral wires and 2.5mm cross wires, this architectural flexible metal mesh offers a strong yet flexible structure that easily conforms to different shapes and surfaces. With a pitch of 12 x 20 mm and an open area of 52%, this mesh allows for moderate light transmission and airflow, making it ideal for facades, partitions, and decorative installations. Its flexibility combined with durability makes it a perfect choice for modern design projects, providing both visual appeal and practical benefits.

Tesla-1220

Technical Specifications

Decorative Flexible Stainless Steel Mesh Drawing Design

Specifications of Tesla-1220 Architectural Flexible Metal Mesh

Product Name	Tesla-1220
Material	Stainless Steel, Aluminum, Brass, Copper
Spiral Wire (d1), mm (in)	2 (.079)
Cross Wire (d2), mm (in)	2.5 (.095)
Pitch (P1), mm (in)	12 (.47)
Pitch (P2), mm (in)	20 (.79)
Open Area	52%
Max Rigid	On demand
Max Flex	On demand
Approx. Weight, kg/m2 (lb/ft2), Aluminum	2.64 (.54)
Approx. Weight, kg/m2 (lb/ft2), Steel	7.8 (1.6)
Approx. Weight, kg/m2 (lb/ft2), Brass	8.3 (1.7)
Approx. Weight, kg/m2 (lb/ft2), Copper	8.8 (1.8)
