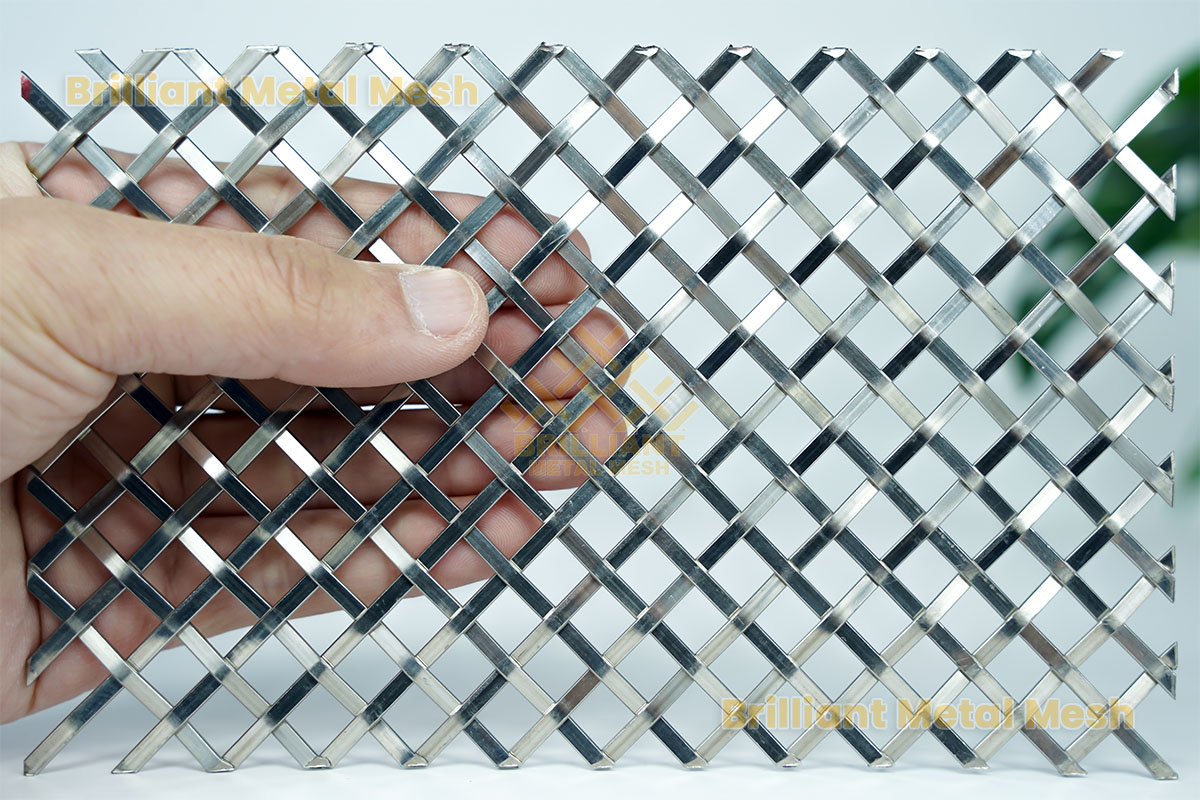

decorative wire mesh screen — Einstein-307SS 45° Diamond Cut

architectural decorative wire mesh panels — Einstein-307 SS

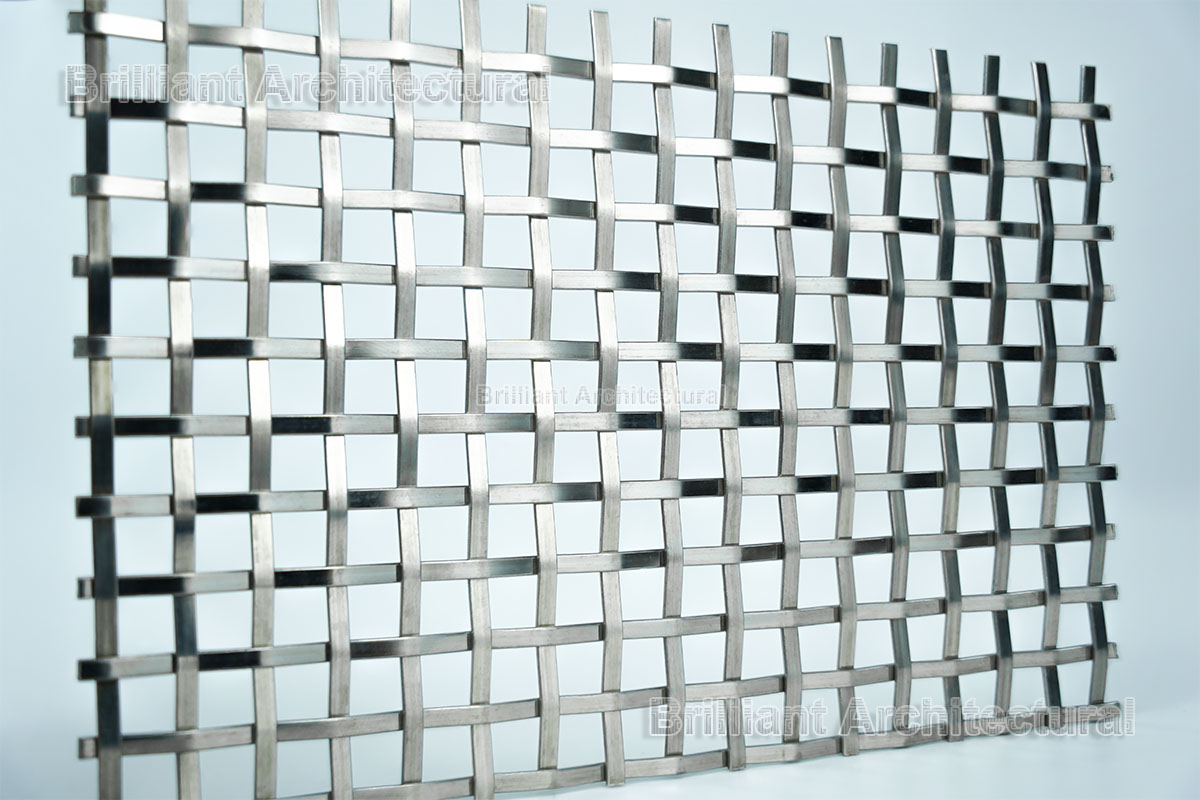

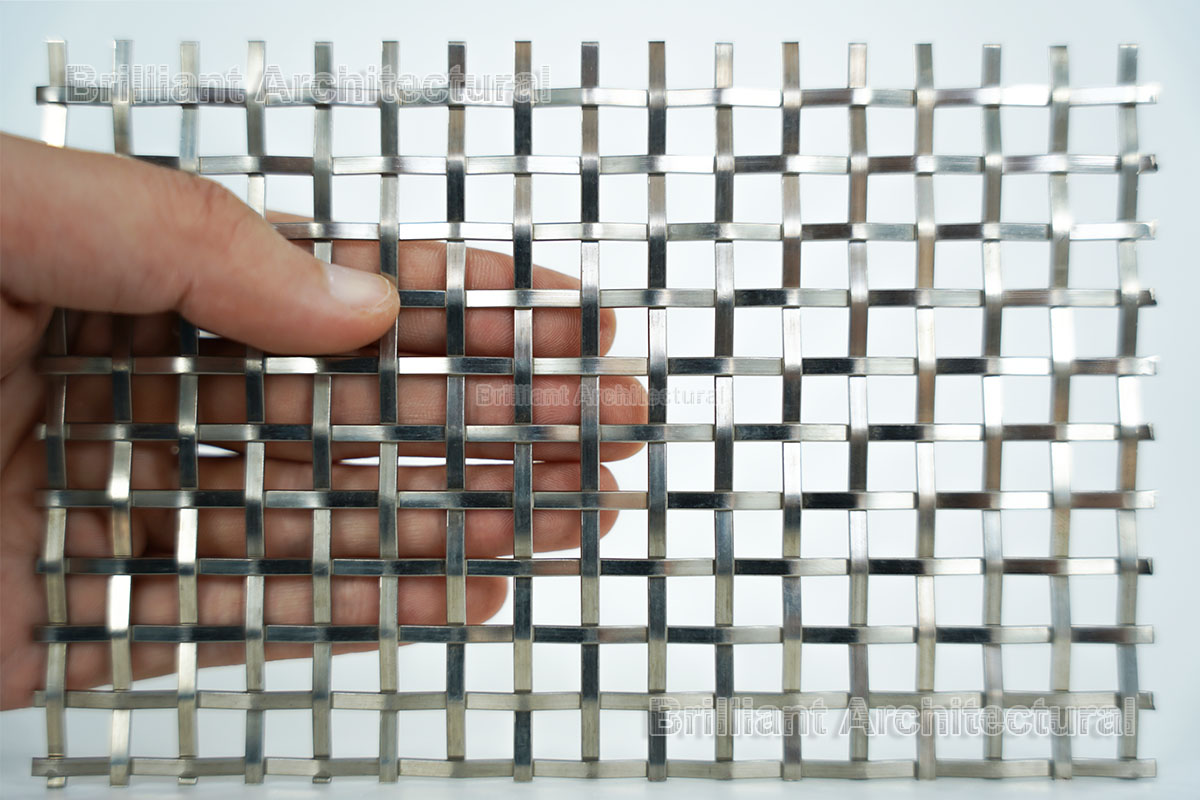

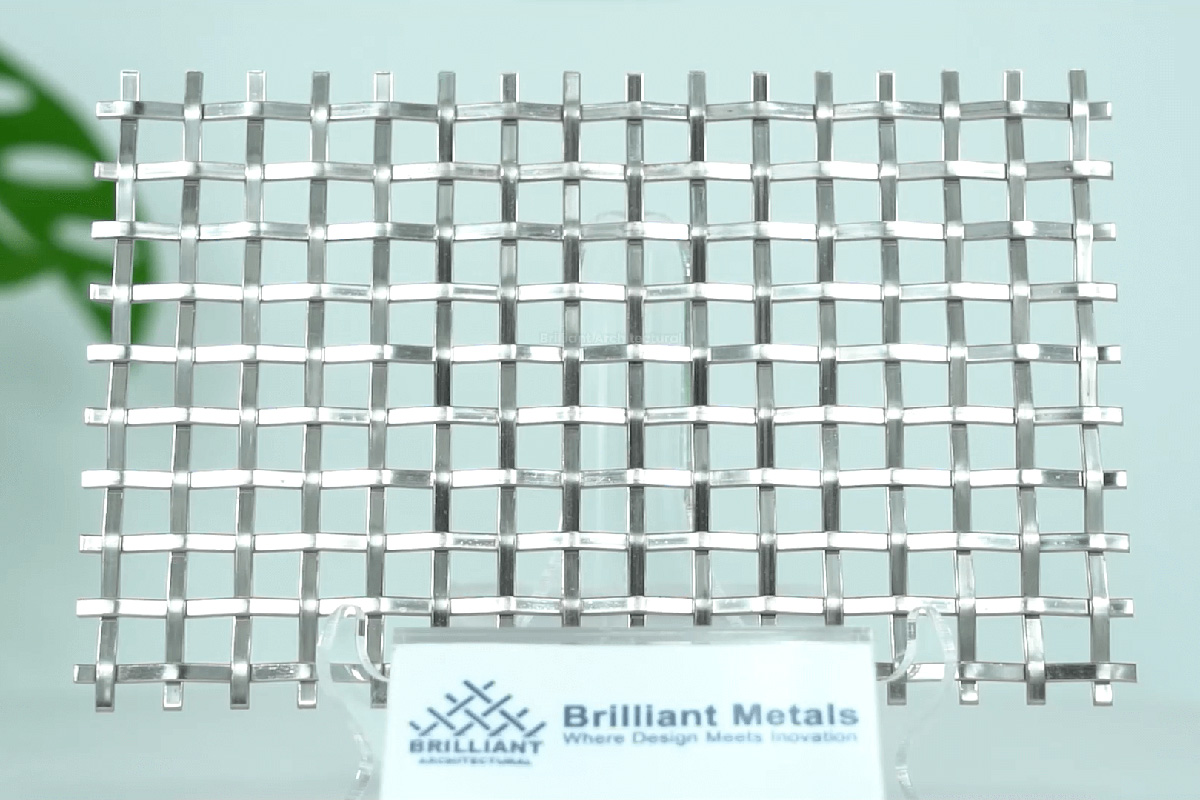

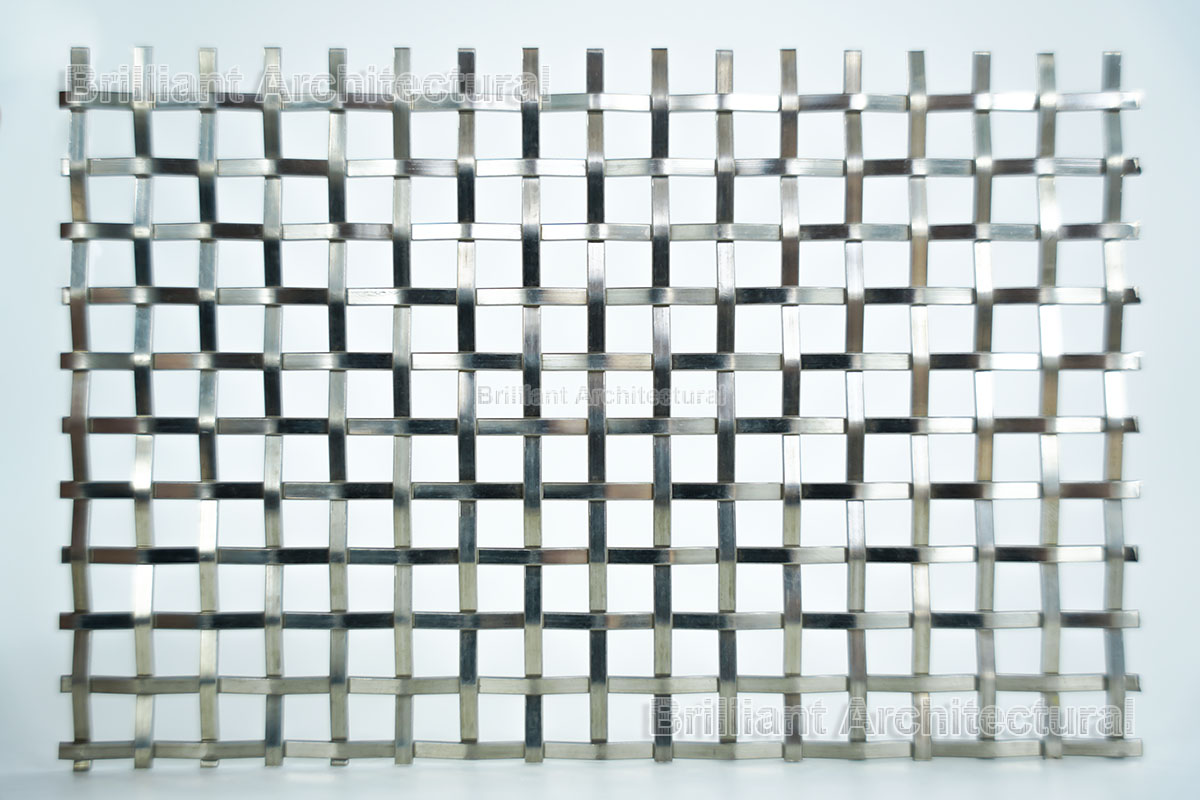

Einstein307 Flat Wire Stainless Steel Decorative Wire Mesh Screen

The Einstein307-SS decorative wire mesh screen features stainless steel flat wire with square openings. The flat wire is pre-crimped for easy weaving, and its surface is polished to enhance brightness. The Mars series offers opening areas ranging from 25% to 60%, providing users with versatile options.

Applications of Einstein307-SS Architectural Wire Mesh

This flat stainless steel decorative wire mesh screen is ideal not only for cabinet doors but also for bookcases, interior windows, semi-transparent privacy screens, room dividers, and restaurant space separators. The architectural mesh adds both functionality and aesthetic appeal to various interior applications.

Technical Specifications of the Decorative Architectural Mesh

Technical specifications of Einstein series stainless steel architectural mesh.

Specifications of Einstein Series Stainless Steel Decorative Wire Mesh

Product Name	Einstein-307	Einstein-310	Einstein-405	Einstein-304	Einstein-305	Einstein-2503
Material	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
Wire Size (d), mm (in)	3 (.118)	3 (.118)	4 (.157)	3 (.118)	3 (.118)	2.5 (.098)
Opening (O), mm (in)	7 (.276)	10 (.394)	5 (.197)	4 (.157)	5 (.197)	3 (0.118)
Overall thickness, mm (in)	2.5 (.098)	3 (.118)	2 (.079)	2.5 (.098)	2 (.079)	2 (.079)
Open Area	50%	60%	33%	31%	40%	30%
Approx. Weight, kg/m2 (lb/ft2)	5.8 (1.19)	5.6 (1.15)	7.1 (1.45)	8.3 (1.70)	6.3 (1.29)	7.4 (1.52)
