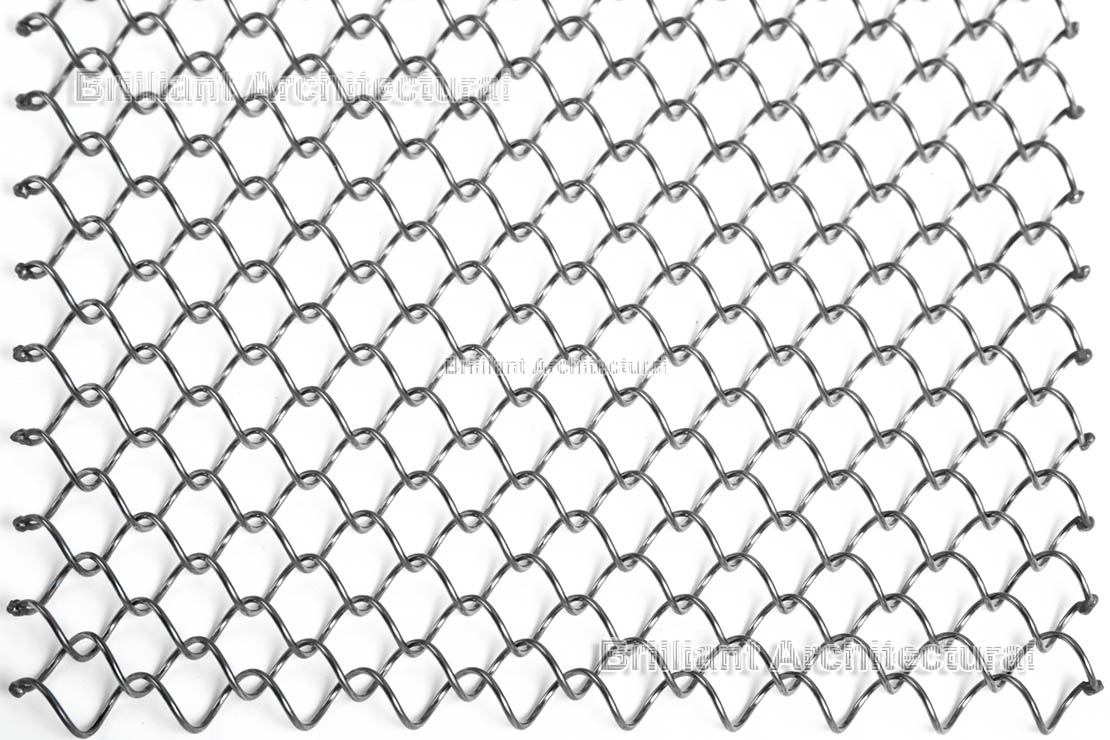

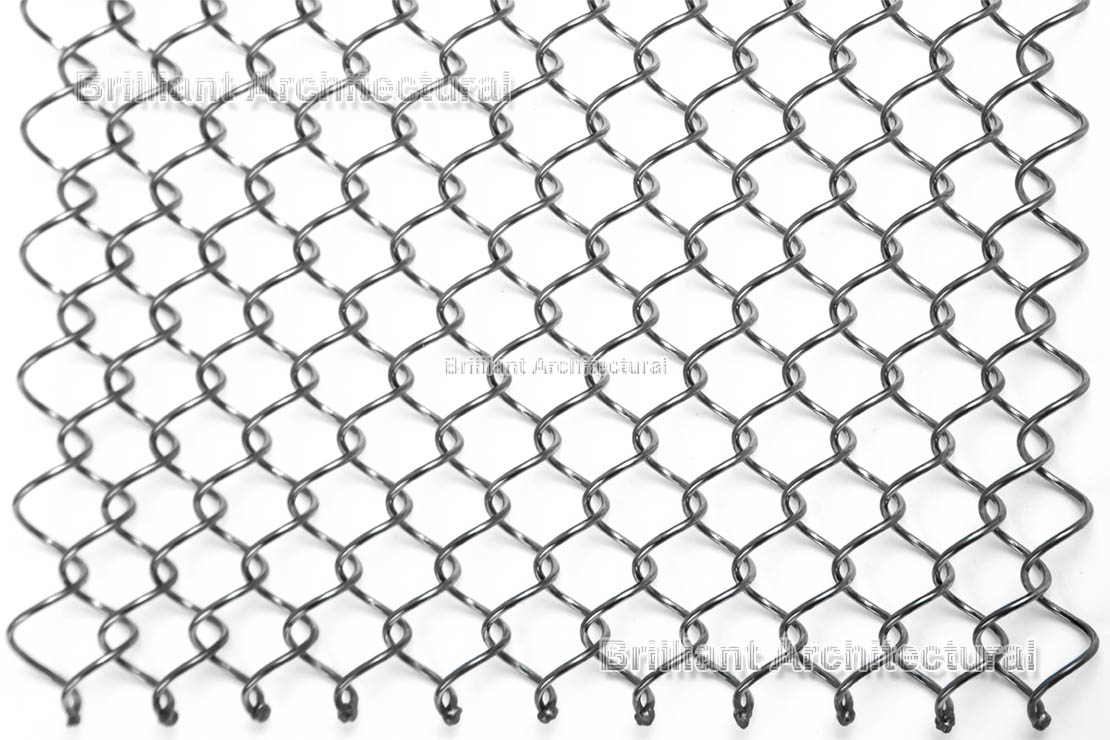

Tesla-2020-1 Decorative Stainless Steel Mesh Curtain – Metal Coil Curtain
Tesla-2020-1 decorative stainless steel mesh curtain, also known as a metal coil curtain, is a type of architectural metal mesh made from spiral stainless steel wire, providing flexibility and durability for a wide range of architectural and decorative applications. The stainless steel mesh curtain features a 1.4mm spiral wire diameter and a 13mm coil diameter, forming a strong yet adaptable structure that drapes smoothly over various surfaces.
Applications of Architectural Mesh Screen
With a pitch of 20 x 20 mm and an open area of 80%, the metal coil curtain allows for ample light transmission and ventilation, making it ideal for use as decorative curtains, room dividers, or cladding materials. The stainless steel material ensures corrosion resistance and a sleek, modern appearance, adding both functionality and aesthetic appeal to interior and exterior designs.
Specifications of the Architectural Metal Mesh
Technical specifications of the decorative architectural metal mesh screen.
| Product Name | Tesla-2020-1 |
| Material | Stainless Steel, Aluminum, Brass, Copper |
| Spiral Wire (d), mm (in) | 1.4 (.055) |
| Pitch (P1), mm (in) | 20 (.79) |
| Pitch (P2), mm (in) | 20 (.79) |
| Coil Dia. (C), mm (in) | 13 (.51) |
| Open Area | 80% |
| Approx. Weight, kg/m2 (lb/ft2), Aluminum | 2.7 (.55) |
| Approx. Weight, kg/m2 (lb/ft2), Steel | 8 (1.52) |
| Approx. Weight, kg/m2 (lb/ft2), Brass | 8.5 (.98) |
| Approx. Weight, kg/m2 (lb/ft2), Copper | 9 (1.04) |
Finishes of Architectural Mesh
Decorative architectural metal mesh is available in a variety of finishes and colors.
