Tesla-2634 Architectural Decorative Spiral Wire Mesh

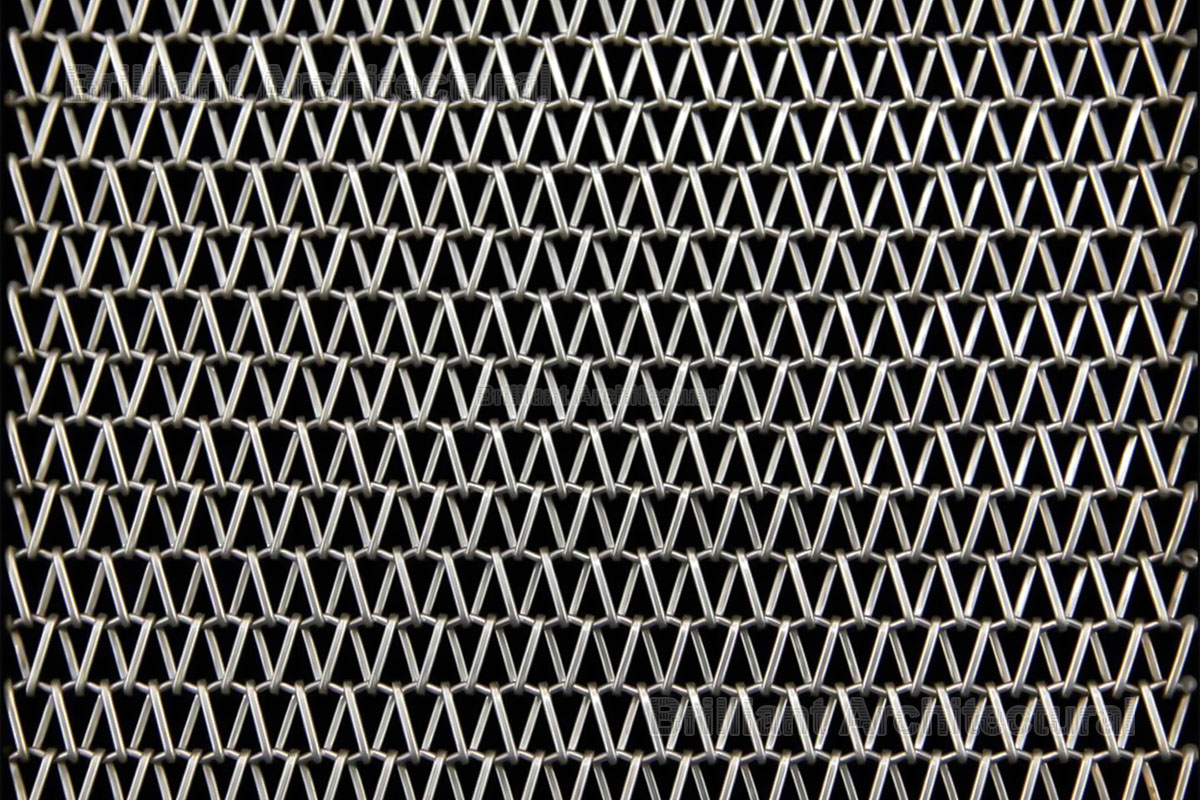

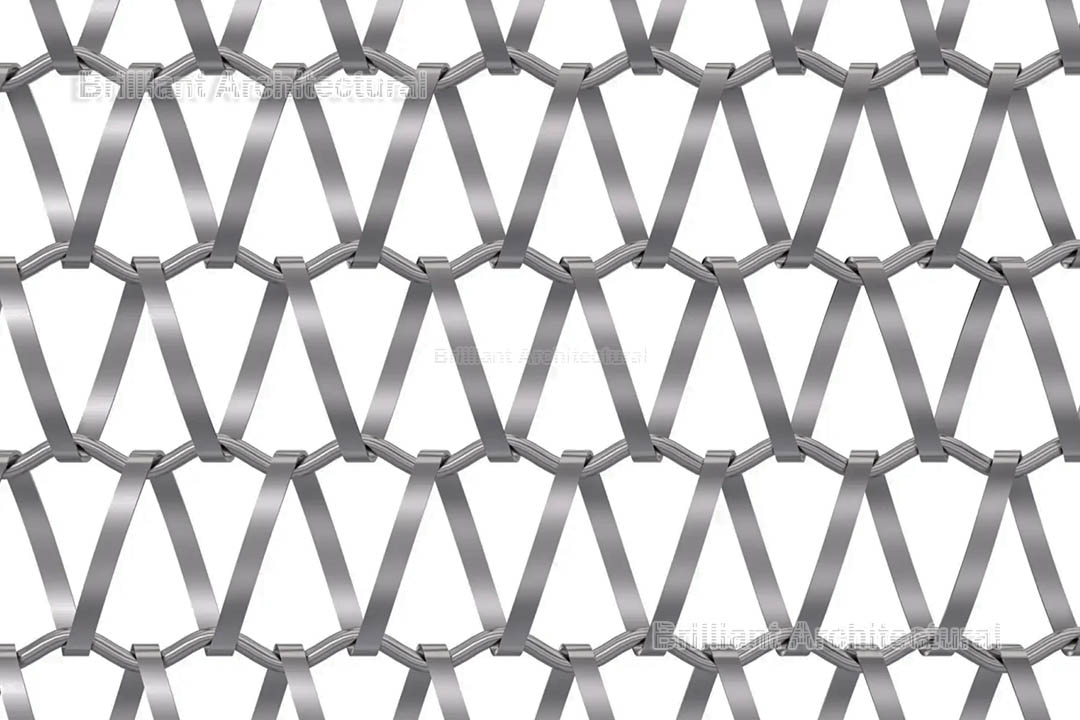

Tesla-2634 Architectural Decorative Spiral Wire Mesh crafted from durable stainless steel offers a flexible and elegant solution for modern architectural applications. The mesh features 4mm spiral wires paired with 3mm diameter cross rods, providing strength and structural integrity. Its pitch of 26 x 34 mm creates a well-balanced pattern with a 55% open area, allowing ample airflow and light penetration. This design makes it ideal for facades, decorative cladding, partitions, and sunshades. The flexibility of the mesh allows it to adapt to various shapes and surfaces, while its corrosion resistance ensures long-lasting performance in both indoor and outdoor environments.

Tesla-2634

Technical Specifications

Architectural Spiral Wire Mesh Design Drawing

Specifications of Tesla-2634 Architectural Decorative Spiral Wire Mesh

Product Name	Tesla-2634
Material	Aluminum, Steel
Spiral Wire (d1), mm (in)	4 (.157)
Cross Rod (d2), mm (in)	3 (.118)
Pitch (P1), mm (in)	26 (1.02)
Pitch (P2), mm (in)	34 (1.34)
Open Area	55%
Max Rigid
Max Flex
Approx. Weight, kg/m2 (lb/ft2), Aluminum	2.1 (.43)
Approx. Weight, kg/m2 (lb/ft2), Steel	6.2 (1.27)
