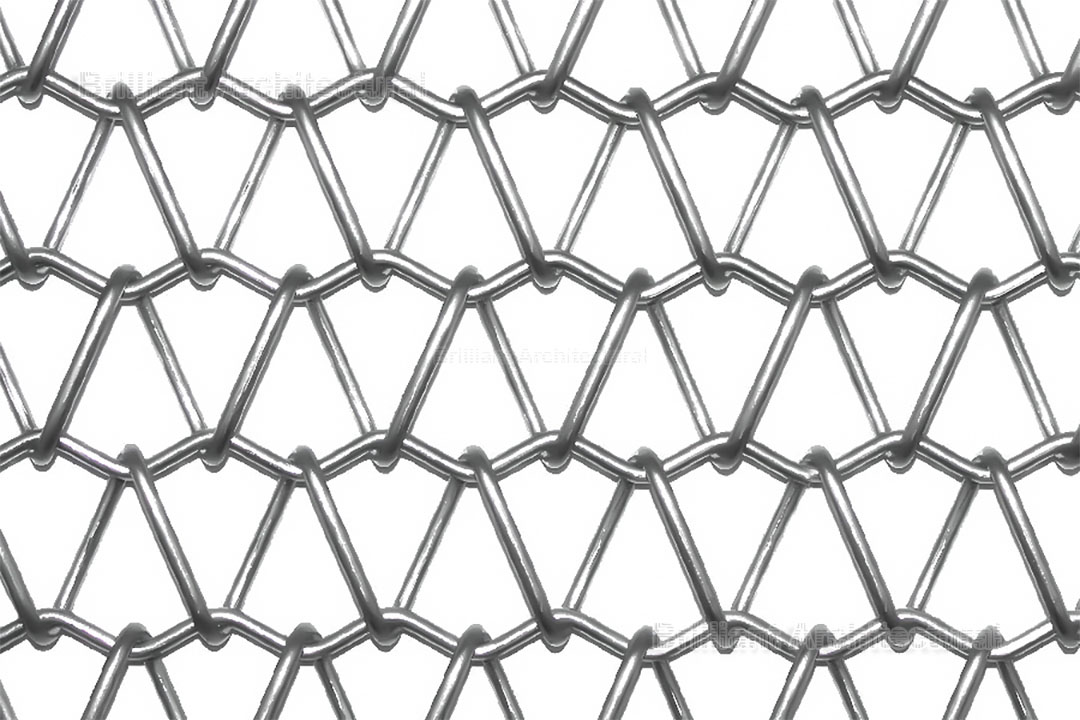

Tesla-2423 Decorative Spiral Wire Mesh Fabric

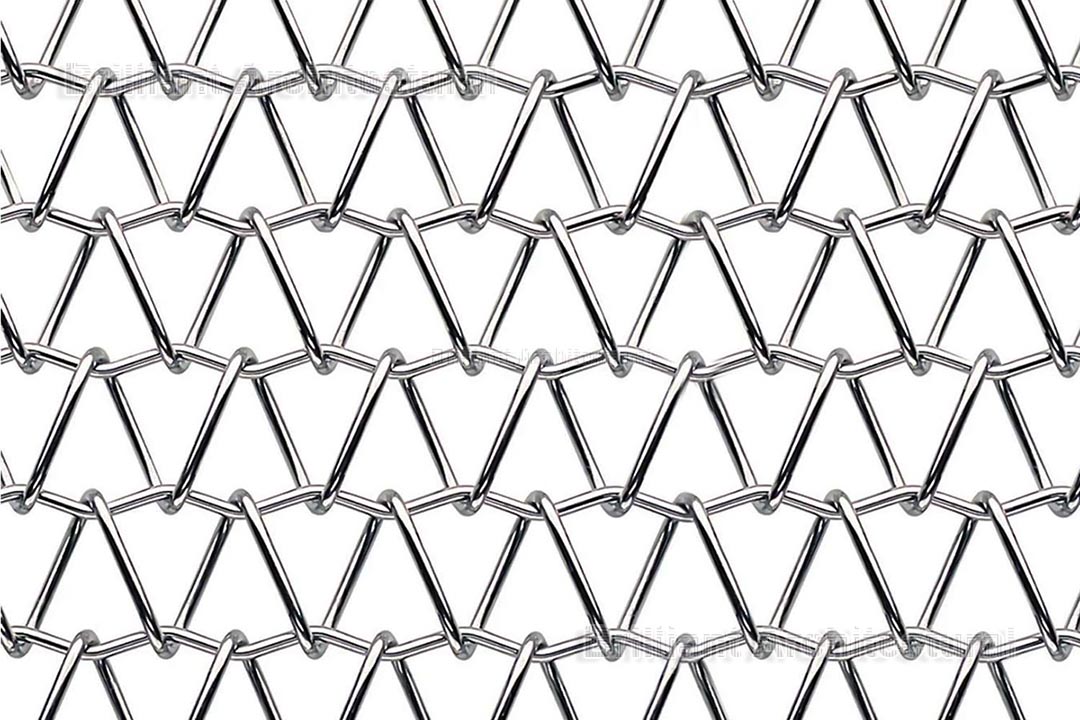

Tesla-2423 Decorative Spiral Wire Mesh Fabric, made from stainless steel, is designed to be flexible while maintaining durability. It features 2.6mm spiral wires and 2.6mm cross wires, providing a strong yet adaptable structure for various design applications. With a pitch of 24 x 23 mm and a 65% open area, the mesh allows excellent ventilation and light passage. Its elegant appearance makes it ideal for facades, partitions, and decorative cladding in both interior and exterior spaces. The mesh’s flexibility enables it to conform to different shapes and surfaces.

Tesla-2423

Technical Specifications

Architectural Spiral Mesh Design Drawing

Specifications of Tesla-2423 Decorative Spiral Wire Mesh Fabric

Product Name	Tesla-2423
Material	Steel, Aluminum, Brass
Spiral Wire (d1), mm (in)	2.6 (.142)
Cross Wire (d2), mm (in)	2.6 (.142)
Pitch (P1), mm (in)	24 (.945)
Pitch (P2), mm (in)	23 (.906)
Open Area	65%
Max Rigid
Max Flex
Approx. Weight, kg/m2 (lb/ft2), Aluminum	2.37 (.485)
Approx. Weight, kg/m2 (lb/ft2), Steel	7 (1.434)
