Tesla-2020B Decorative Gold Metal Mesh Curtain Panels – Metal Coil Drapery

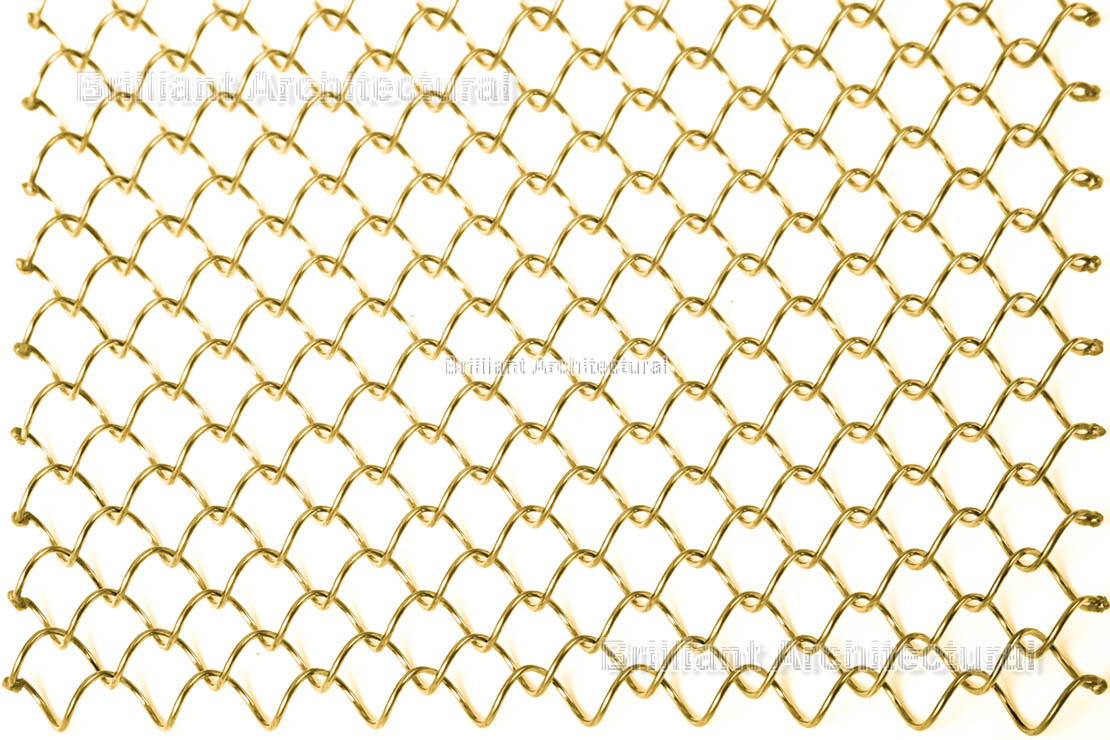

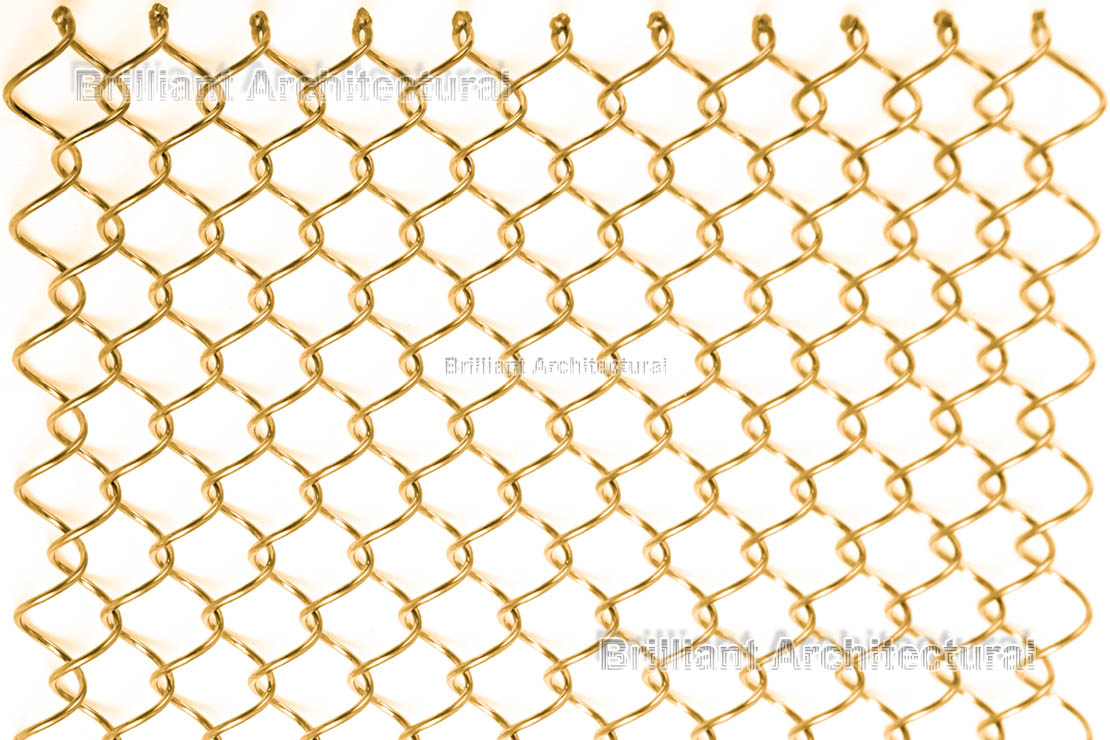

Tesla-2020B Decorative Gold Metal Mesh Curtain Panels, also known as metal coil drapery, are crafted from high-quality brass, offering flexibility and an elegant gold finish. The gold metal mesh curtain panels are made from spiral wire with a diameter of 1.4mm and a coil diameter of 13mm, creating a durable yet adaptable structure ideal for various architectural and decorative uses. With a pitch of 20 x 20 mm and an open area of 80%, the metal coil drapery provides excellent light transmission and airflow, making them perfect for room dividers, facades, and decorative cladding. The brass material’s natural corrosion resistance and warm golden appearance add a luxurious touch to any space, while the flexible design allows the mesh to drape smoothly over curved or irregular surfaces.

Tesla-2020B

Technical Specifications

Gold Metal Mesh Curtain Panel Design Drawing

Specifications of Tesla-2020B Decorative Stainless Steel Mesh Curtain – Metal Coil Curtain

Product Name	Tesla-2020B
Material	Stainless Steel, Aluminum, Brass, Copper
Spiral Wire (d), mm (in)	1.4 (.055)
Pitch (P1), mm (in)	20 (.79)
Pitch (P2), mm (in)	20 (.79)
Coil Dia. (C), mm (in)	13 (.51)
Open Area	80%
Max Rigid	On demand
Max Flex	On demand
Approx. Weight, kg/m2 (lb/ft2), Aluminum	1 (.20)
Approx. Weight, kg/m2 (lb/ft2), Steel	3 (.61)
Approx. Weight, kg/m2 (lb/ft2), Brass	3.2 (.66)
Approx. Weight, kg/m2 (lb/ft2), Copper	3.4 (0.7)
