Fermi-5215 Architectural Expanded Metal Facade Panels

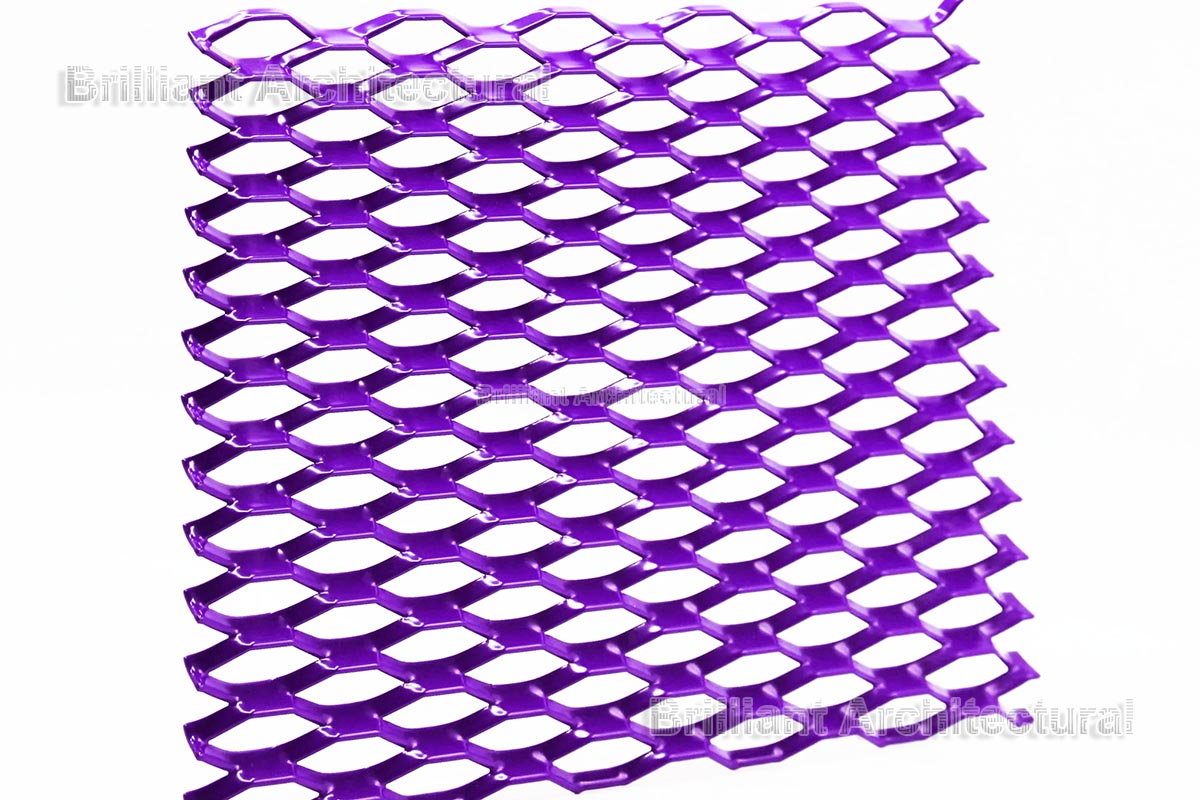

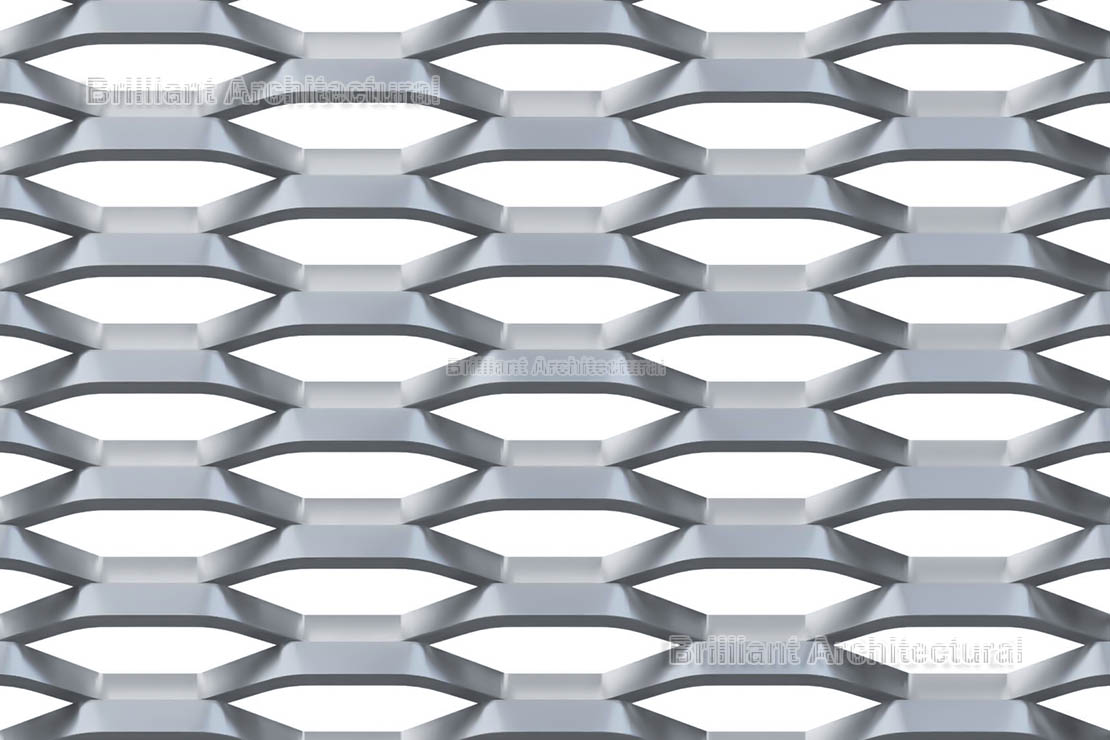

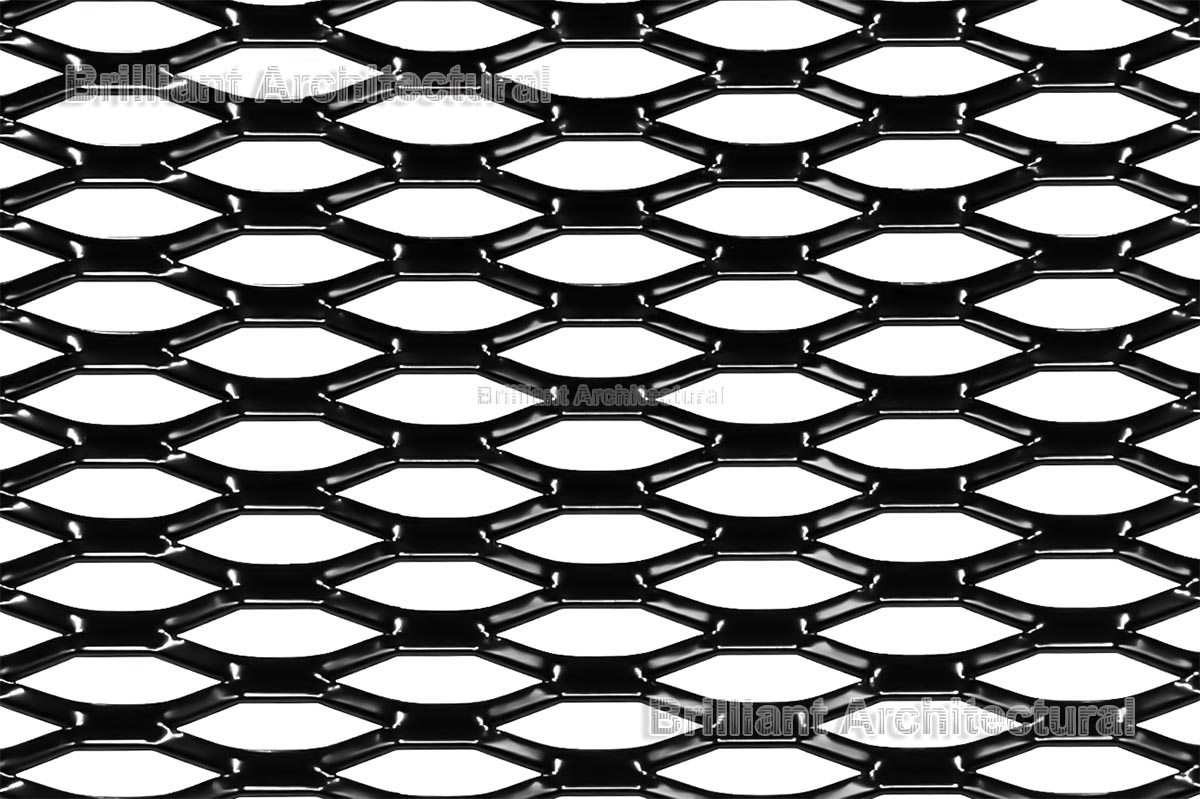

Fermi-5215 architectural expanded metal facade panels feature a diamond pattern with a long way of 52 mm and a short way of 15 mm, providing a front open area of 40% and an airflow rate of 70%. These panels are designed for modern building facades, combining functionality with aesthetic appeal. The open area allows for ample ventilation and natural light while maintaining structural integrity and offering privacy. Constructed from durable materials, they are resistant to corrosion and weathering, making them suitable for both interior and exterior applications. Available in a range of finishes and colors, these panels can be customized to meet the design needs of any architectural project, enhancing the visual appeal and energy efficiency of buildings.

Fermi-5215

Technical Specifications

architectural expanded metal mesh design drawing

Specifications of Fermi-5215 Architectural Expanded Metal Facade Panels

Product Name	Fermi-5215-1	Fermi-5215-2	Fermi-5215-3
Material	Aluminum, Steel	Aluminum, Steel	Aluminum, Steel
LWD, mm (in)	52 (2.05)	52 (2.05)	52 (2.05)
SWD, mm (in)	15 (0.59)	15 (0.59)	15 (0.59)
Strand Width, mm (in)
Strand Thickness, mm (in)	1 (.039)	1.5 (.059)	2 (.079)
Front Open Area	40%	40%	40%
Air Open	70%	70%	70%
Max Width
Max Length
Approx. Weight, kg/m2 (lb/ft2), Aluminum	2 (.41)	3 (.61)	4 (.82)
Approx. Weight, kg/m2 (lb/ft2), Steel	5.5 (1.13)	8 (1.64)	11 (2.52)
