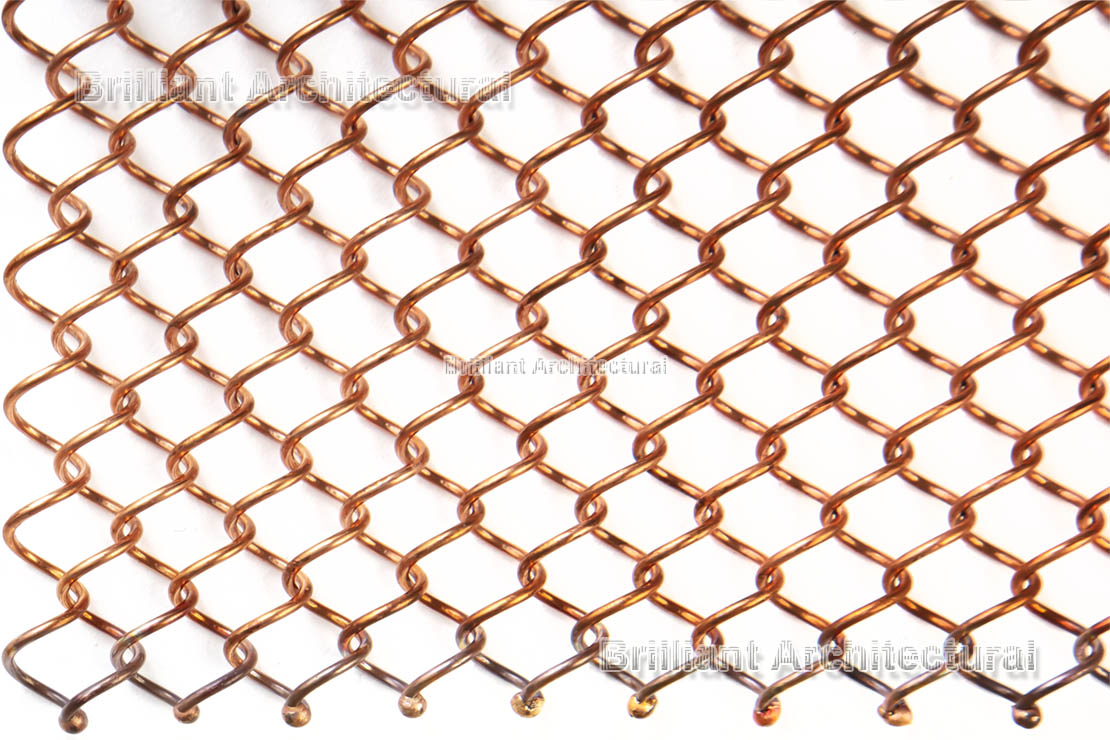

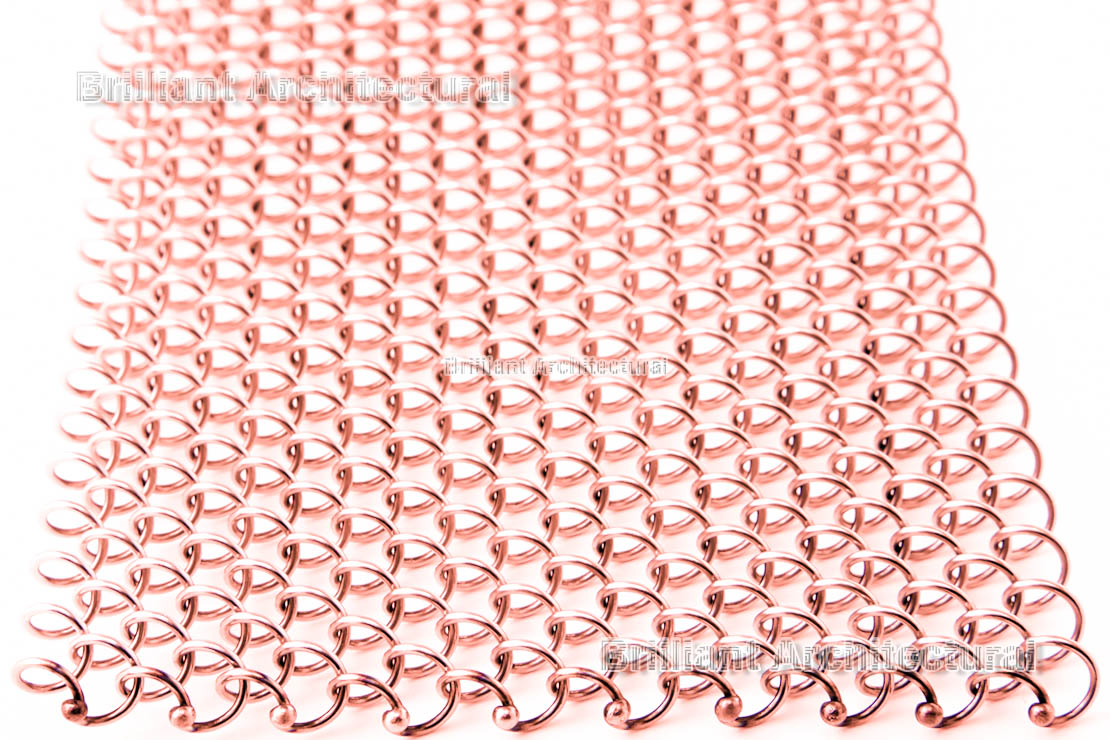

Tesla-2020C Architectural Copper Wire Mesh Drapery

Tesla-2020C Architectural Copper Wire Mesh Drapery, also known as a metal curtain, is crafted from high-quality copper spiral wire, offering both flexibility and durability. The mesh features a 1.8 mm spiral wire diameter and a 14mm coil diameter, creating a robust yet adaptable structure. With a pitch of 20 x 20 mm and a 75% open area, it allows for excellent light transmission and airflow, making it ideal for decorative cladding, room dividers, and architectural facades. The copper material adds a warm, luxurious aesthetic while offering natural corrosion resistance and long-lasting performance. Architectural Copper Wire Mesh Drapery’s flexible design allows it to drape smoothly, making it suitable for both modern and traditional spaces, adding elegance and functionality to any project.

Tesla-2020C

Technical Specifications

Specifications of Tesla-2020C Architectural Copper Wire Mesh Drapery

Product Name	Tesla-2020C
Material	Stainless Steel, Aluminum, Brass, Copper
Spiral Wire (d), mm (in)	1.8 (.071)
Pitch (P1), mm (in)	20 (.79)
Pitch (P2), mm (in)	20 (.79)
Coil Dia. (C), mm (in)	14 (.55)
Open Area	75%
Max Rigid	On demand
Max Flex	On demand
Approx. Weight, kg/m2 (lb/ft2), Aluminum	1.53 (.31)
Approx. Weight, kg/m2 (lb/ft2), Steel	4.5 (1.52)
Approx. Weight, kg/m2 (lb/ft2), Brass	4.8 (.98)
Approx. Weight, kg/m2 (lb/ft2), Copper	5.1 (1.04)
