Fermi-20080 Expanded Architectural Metal Panels

Fermi-20080 Expanded Architectural Metal Panels feature a bold diamond pattern with a long way of 200 mm and a short way of 80 mm, supported by a 24 mm strand width. Offering a front open area of 52%, these panels provide excellent ventilation, natural light penetration, and a visually striking design. Ideal for architecture facades, wall claddings, sunscreens, and decorative partitions, the open structure enhances airflow while maintaining structural integrity. These architectural metal panels can be customized with various finishes, such as powder coating or anodizing, to improve durability and corrosion resistance, making them suitable for both indoor and outdoor architectural applications.

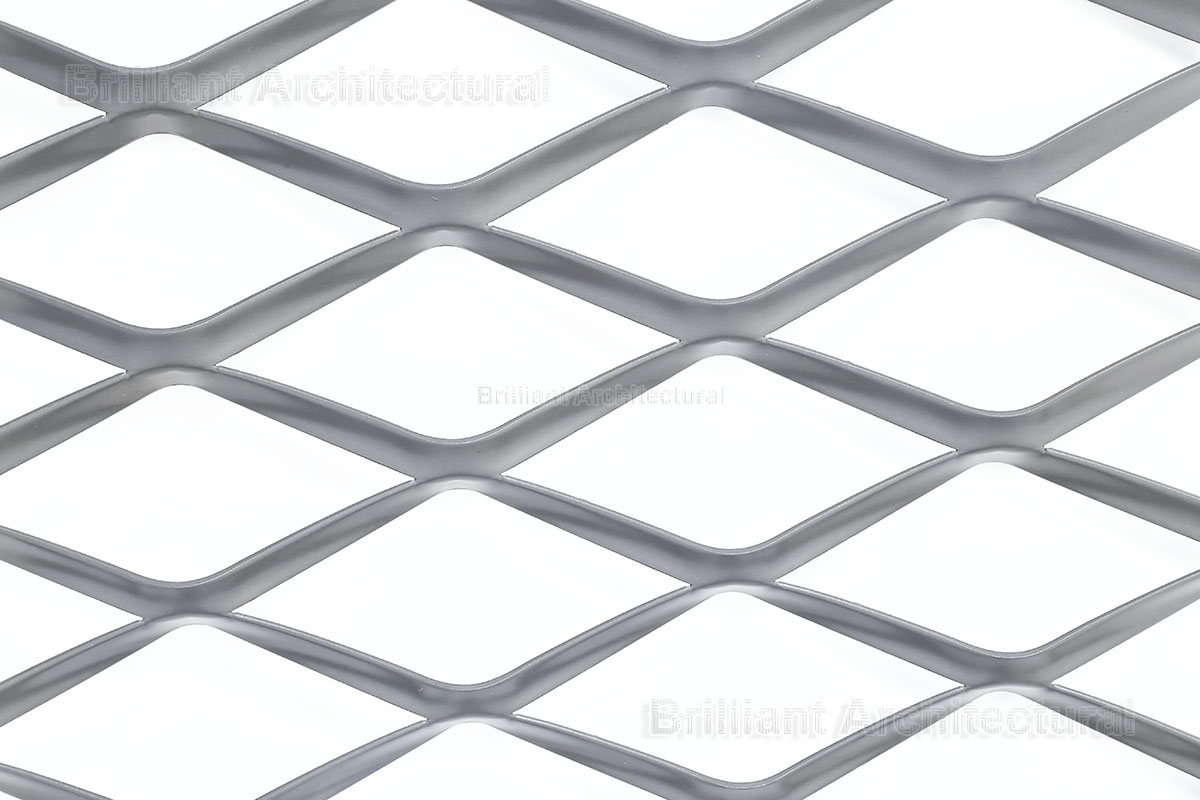

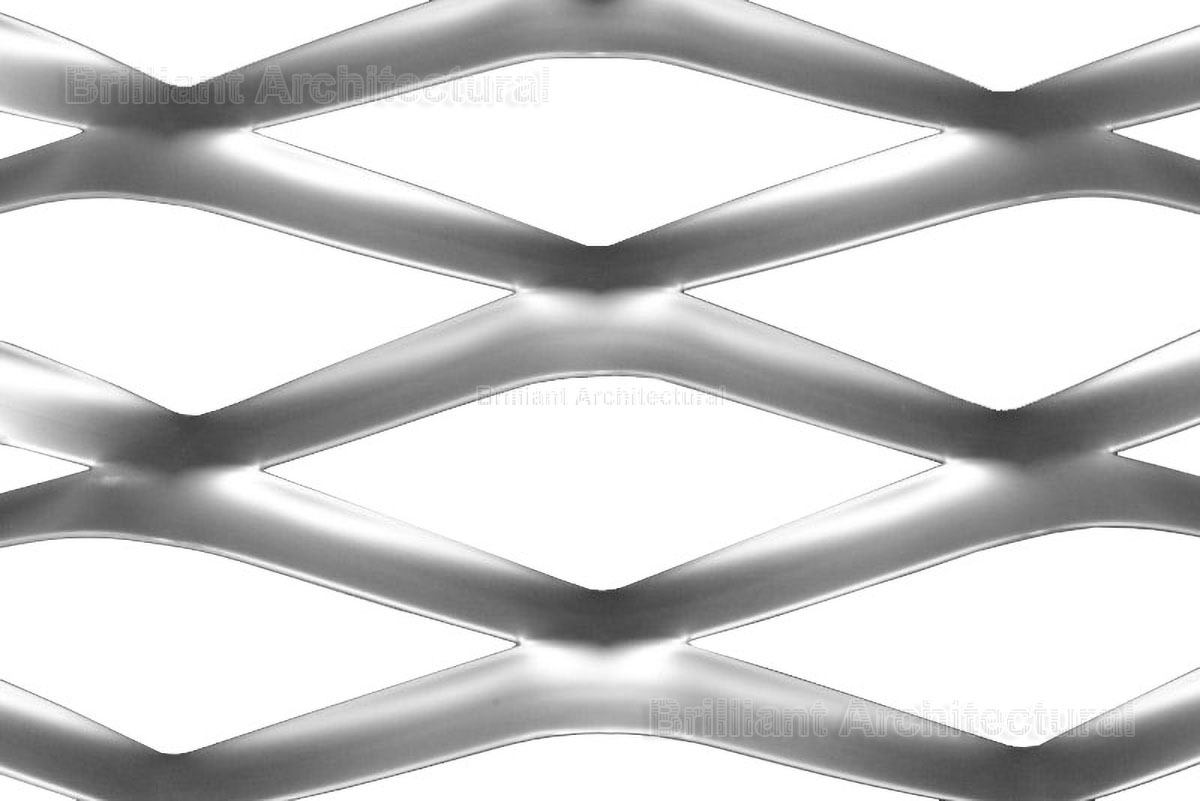

Fermi-20080 Fermi-20080 aluminum architectural metal wall panels aluminum architectural metal screen panels

Technical Specifications

architectural expanded metal mesh design drawing

Specifications of Fermi-20080 Expanded Architectural Metal Panels

Product Name Fermi-20080
Material Aluminum, Stainless Steel
LWD, mm (in) 200 (7.87)
SWD, mm (in) 80 (3.15)
Strand width, mm (in) 24 (.945)
Front Open Area 52%
Air Open 80%
Max Width
Max Length
Approx. Weight, kg/m2 (lb/ft2)
