Lorenzo-2306 Bendable Architectural Wire Mesh Screen

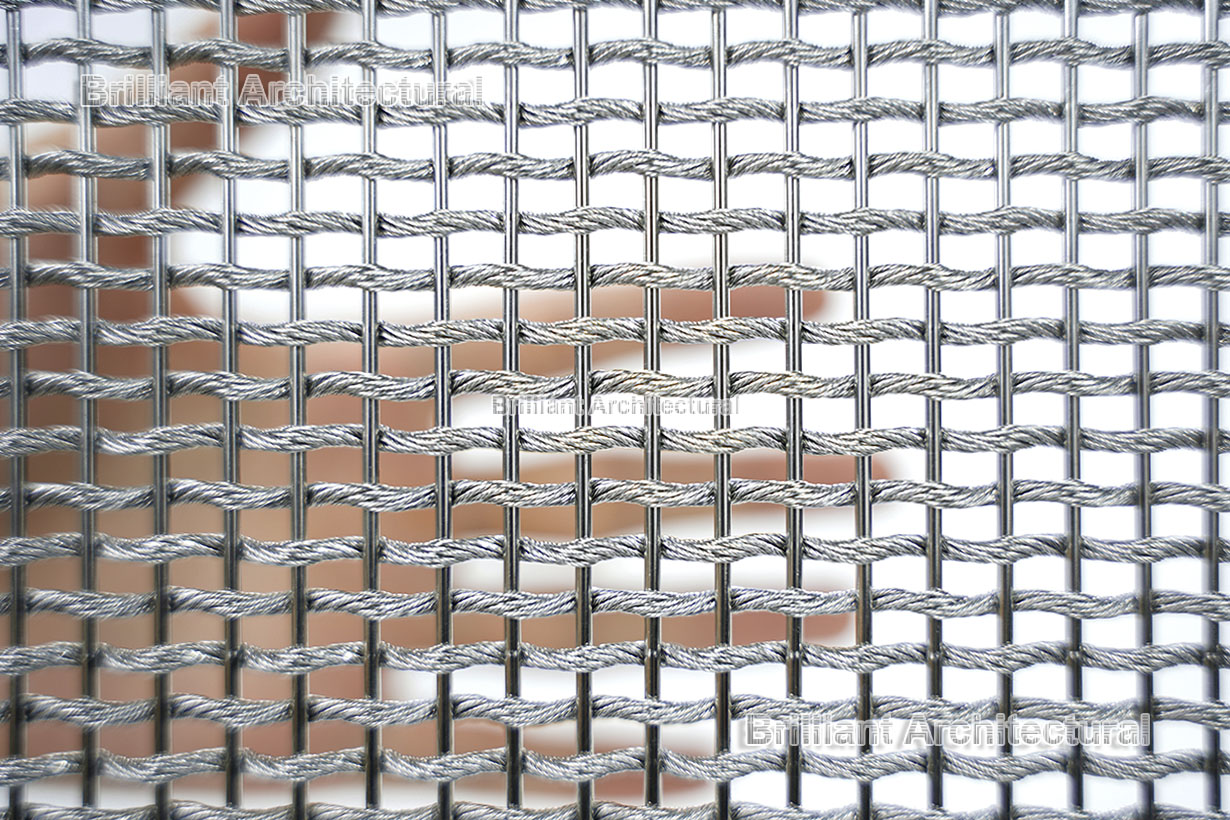

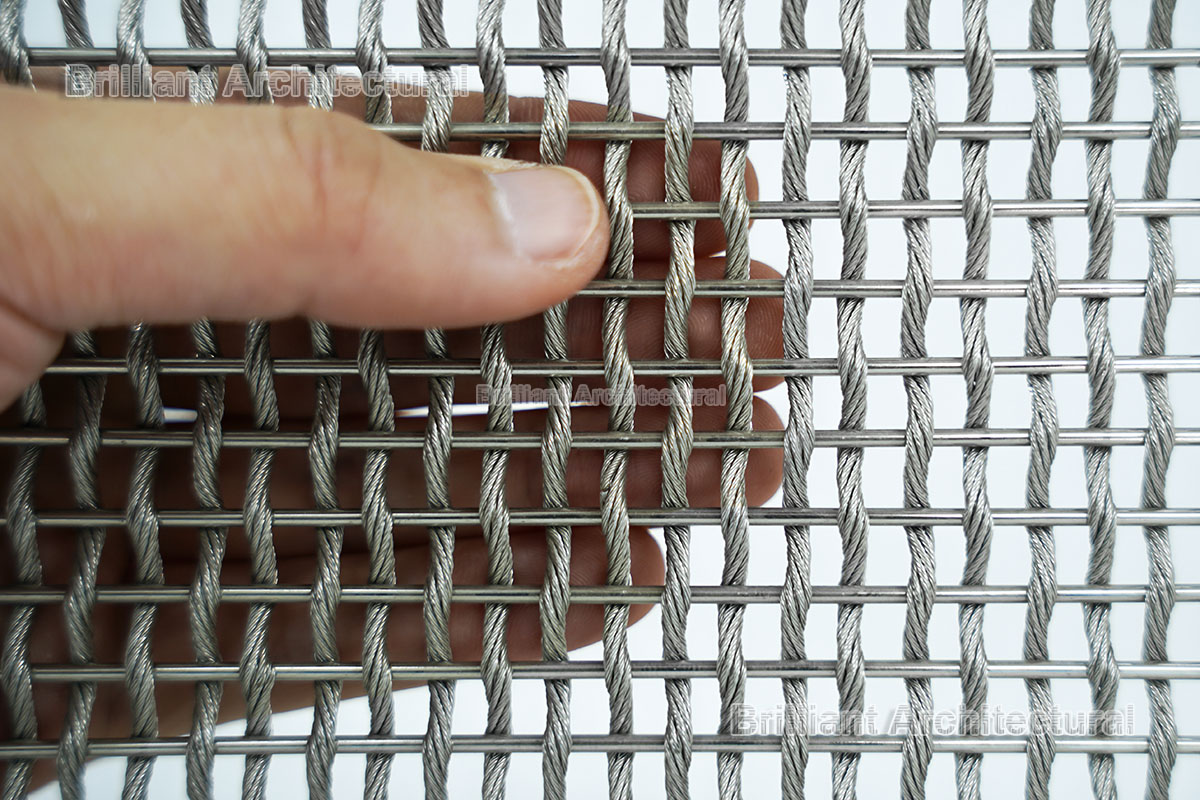

Lorenzo-2306 Bendable Architectural Wire Mesh Screen is a flexible and durable stainless steel mesh designed for modern architectural applications. Its weft is made of sturdy wire rods, and the warp consists of durable wire ropes, ensuring strength and adaptability.

Lorenzo-2306 architectural wire mesh screen is highly flexible and bendable, allowing it to be folded to suit various design needs. Ideal for facades and wall cladding, it combines aesthetic appeal with functionality, providing shading, ventilation, and privacy.

Resistant to corrosion and wear, the Lorenzo-2306 performs reliably in both indoor and outdoor settings. Its innovative design makes it a versatile and stylish solution for architects seeking high-quality materials for contemporary projects.

Lorenzo-2306

Technical Specifications of Lorenzo-2306 Architectural Wire Mesh

Specifications of Lorenzo Series Bendable Stainless Steel Architectural Wire Mesh Screen

Product Name	Lorenzo-2306
Material	SS 304/316
Wire Gauge (d1), mm (in)	2 (.079)
Rope Gauge (d2), mm (in)	2.5 (.098)
Opening (O1), mm (in)	4 (.157)
Opening (O2), mm (in)	6 (.236)
Overall thickness, mm (in)	5.8mm (.23)
Open Area	46%
Max Width
Max Length
Approx. Weight, kg/m2 (lb/ft2)	7.4 (1.52)
