Fermi-6326 Architectural Aluminum Expanded Metal Sheet

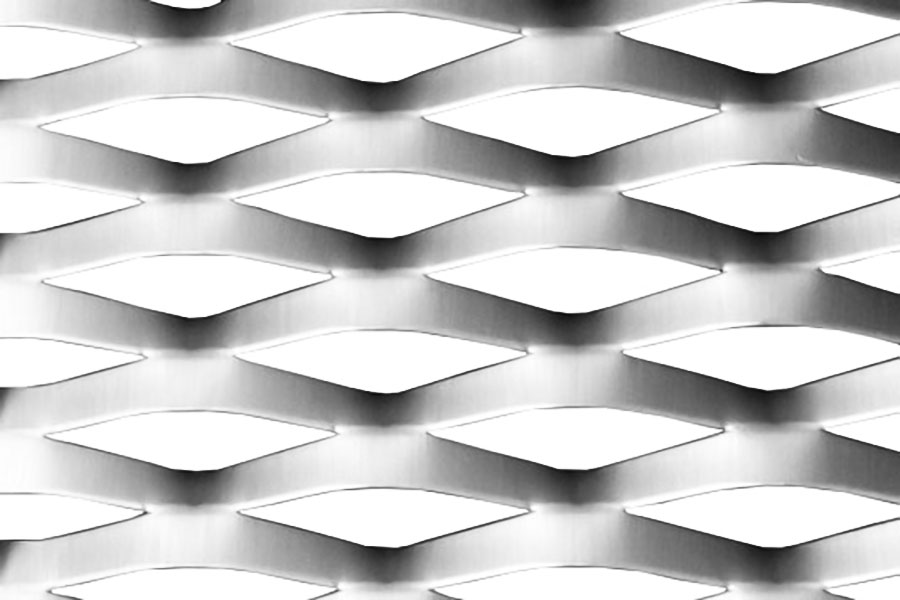

Fermi-6326 architectural aluminum expanded metal sheet features a diamond-shaped pattern with a long way of 63 mm and a short way of 89 mm, with a strand width of 9 mm. The sheet has a front open area of 42%, offering a balance of light transmission, airflow, and privacy. Lightweight yet durable, aluminum expanded metal is resistant to corrosion, making it ideal for both interior and exterior applications such as building facades, wall cladding, sunscreens, balustrades, and partitions. Its open structure provides natural ventilation and energy efficiency, while the sleek design enhances the modern aesthetic of buildings. This versatile material is also customizable in terms of finishes, allowing architects to match the design to specific project requirements.

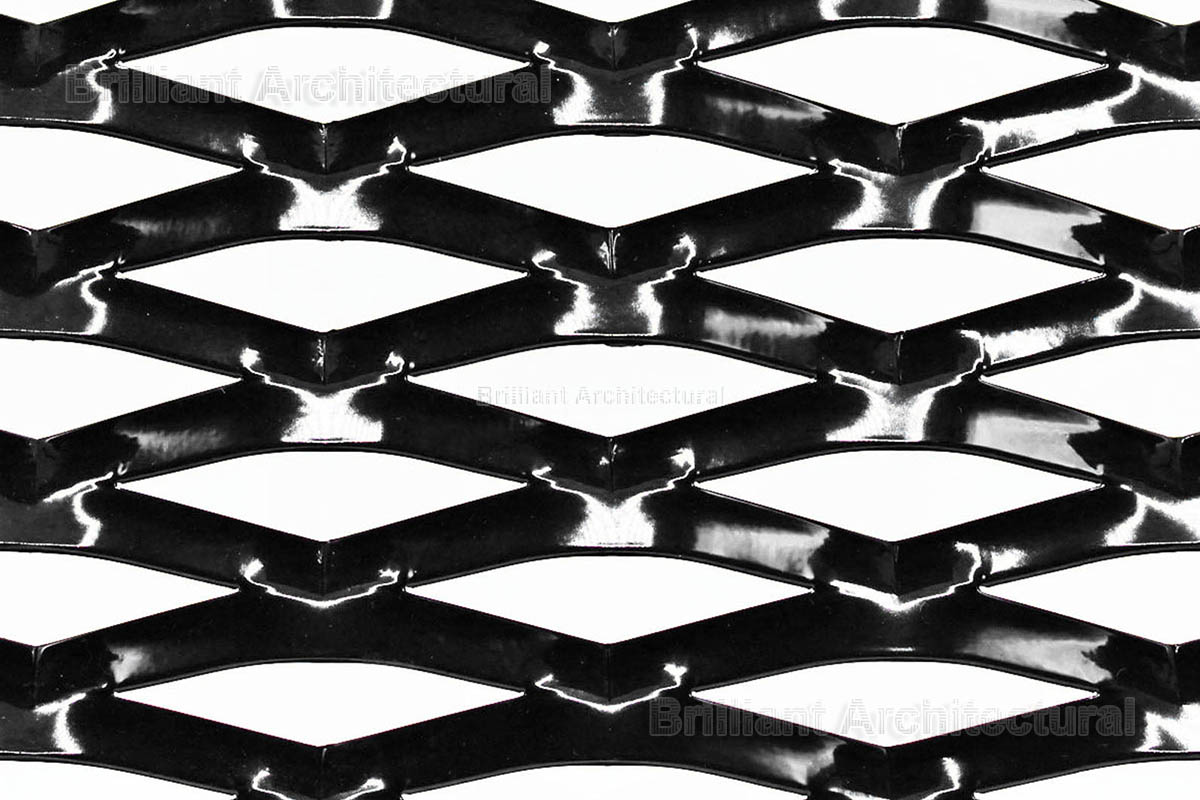

Fermi-6326 Fermi-6326 architectural expanded aluminum sheet metal Aluminum Architectural Expanded Metal Sheet

Technical Specifications

architectural expanded metal mesh design drawing

Specifications of Fermi-6326 Architectural Aluminum Expanded Metal Mesh

Product Name Fermi-6326
Material Aluminum, Stainless Steel
LWD, mm (in) 63 (2.48)
SWD, mm (in) 48 (1.02)
Strand width, mm (in) 9 (.354)
Front Open Area 42%
Air Open 70%
Max Width
Max Length
Approx. Weight, kg/m2 (lb/ft2)
