Ohm-810 Architectural Wire Mesh Cladding Panels

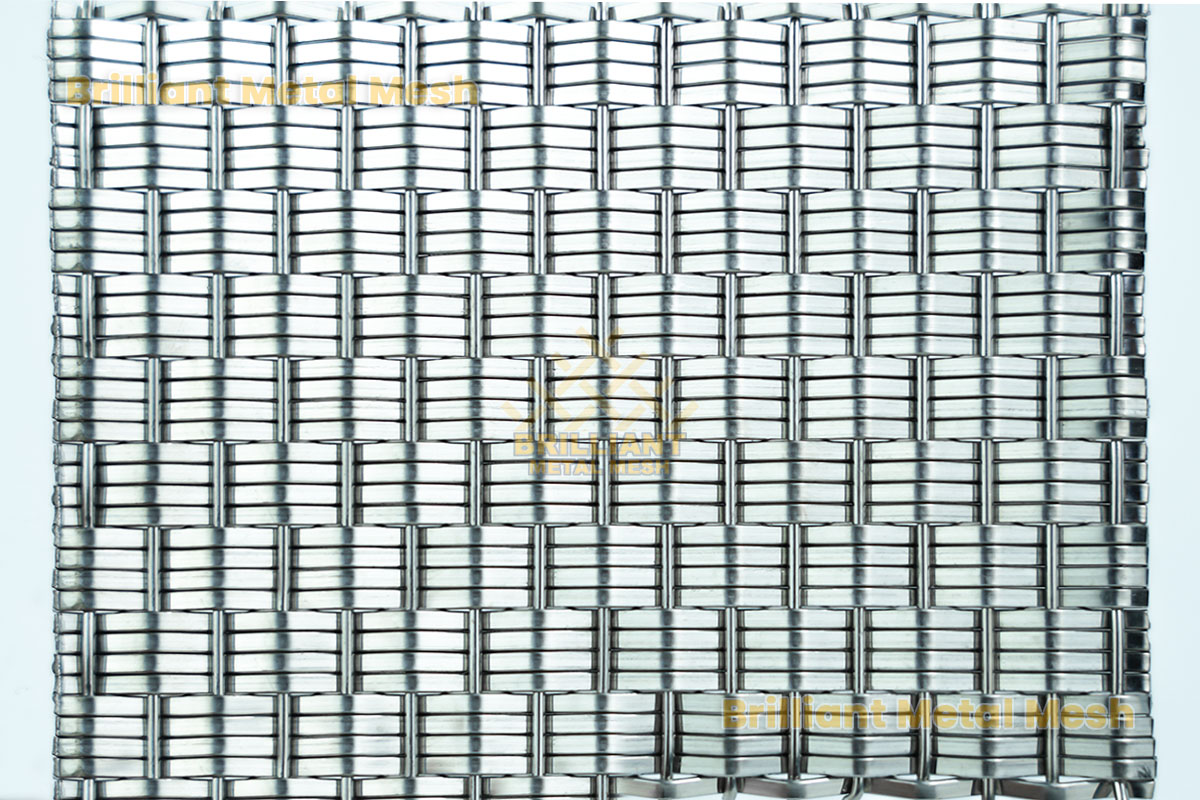

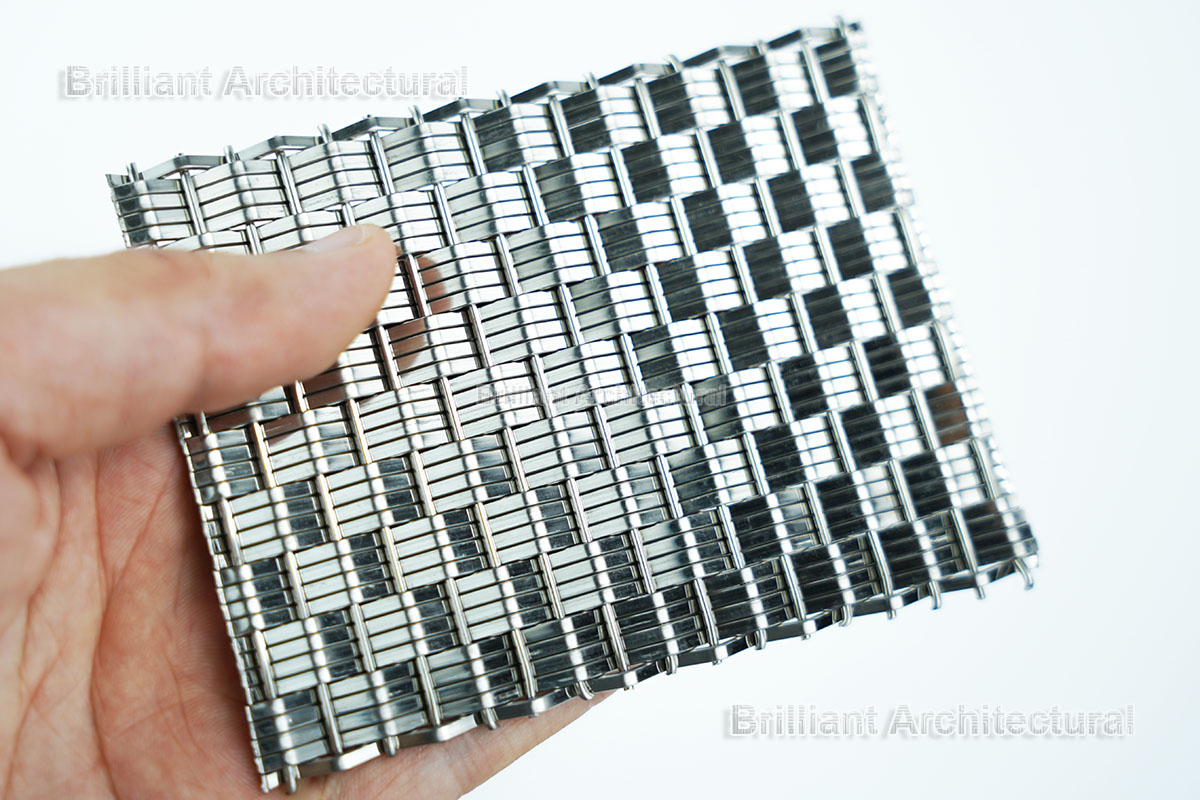

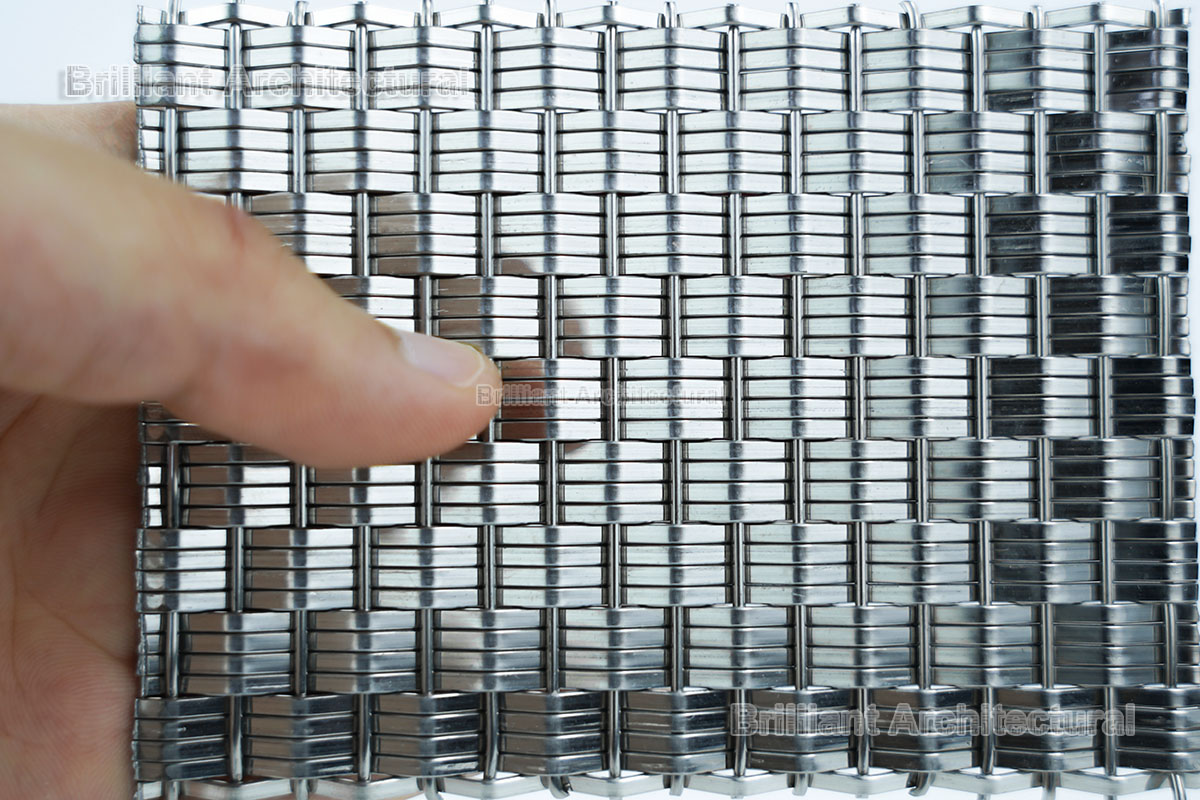

Ohm-810 Architectural Wire Mesh Cladding Panels are expertly crafted from a combination of pre-crimped flat and round wires, creating a distinctive undulating pattern across the mesh surface. With an open area of nearly 0%, these panels are designed to offer maximum coverage and privacy, making them ideal for applications where airflow and visibility are not required. The unique pattern adds a dynamic visual element, enhancing the aesthetic appeal of both interior and exterior spaces. Ohm-810 architectural wire mesh panels are perfect for architectural cladding, providing a sleek, modern look while ensuring durability and strength in various design applications.

Georg Ohm

Technical Specifications

Specifications of Ohm-810: Stainless Steel Architectural Wire Mesh Panels

Product Name	Ohm-810
Material	SS 304/316
Wire Size (d1), mm (in)	1.3 (.051)
d2, mm (in)	10.5 (.413)
Wire Size (d3), mm (in)	2 (.079)
d4, mm (in)	8 (.315)
Overall thickness, mm (in)	3.3 (.13)
Open Area	5 %
Max Width	1.2m (4 ft)
Max Length	2.8m (9 ft)
Approx. Weight, kg/m2 (lb/ft2)	10 (2.05)
