Cauchy-35 Decorative Pattern Perforated Metal Sheet

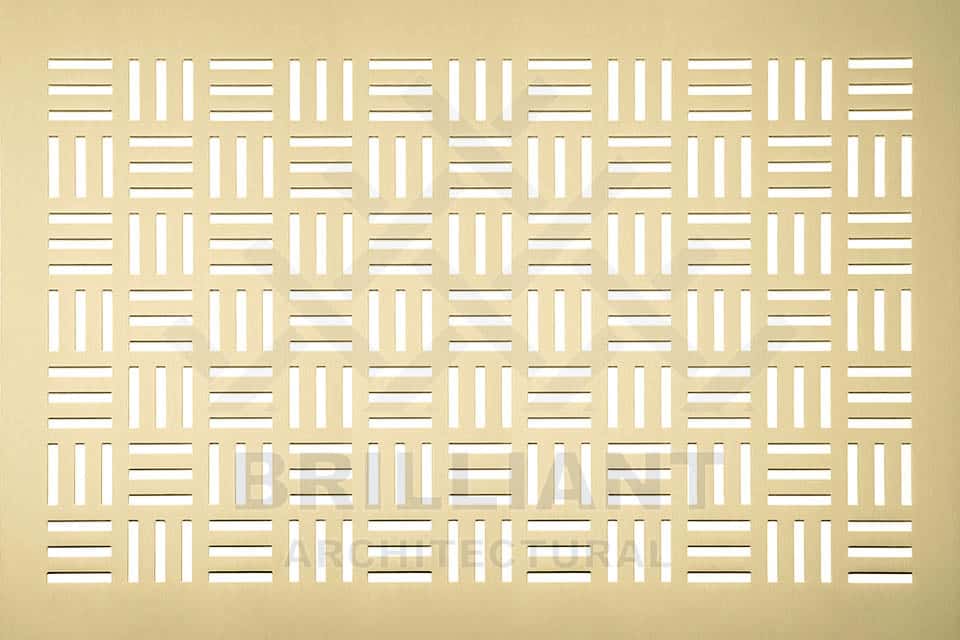

Cauchy-35 Decorative Pattern Perforated Metal Sheet features a unique design consisting of three rectangular slots forming a unit. This unit is then repeatedly expanded both horizontally and vertically to create a visually appealing, large-scale pattern. With an opening rate of 35%, the sheet offers a balance between decorative elegance and functional utility, providing moderate airflow and light diffusion.

Available in a variety of materials including galvanized steel, stainless steel, aluminum alloy, copper, and brass. Each material offers specific benefits such as corrosion resistance, strength, or aesthetic appeal. Cauchy-35 Pattern Perforated Metal Sheet is ideal for architectural applications such as facades, partitions, ceilings, and sunshades, where its geometric design enhances the visual impact while providing privacy, ventilation, and shading.

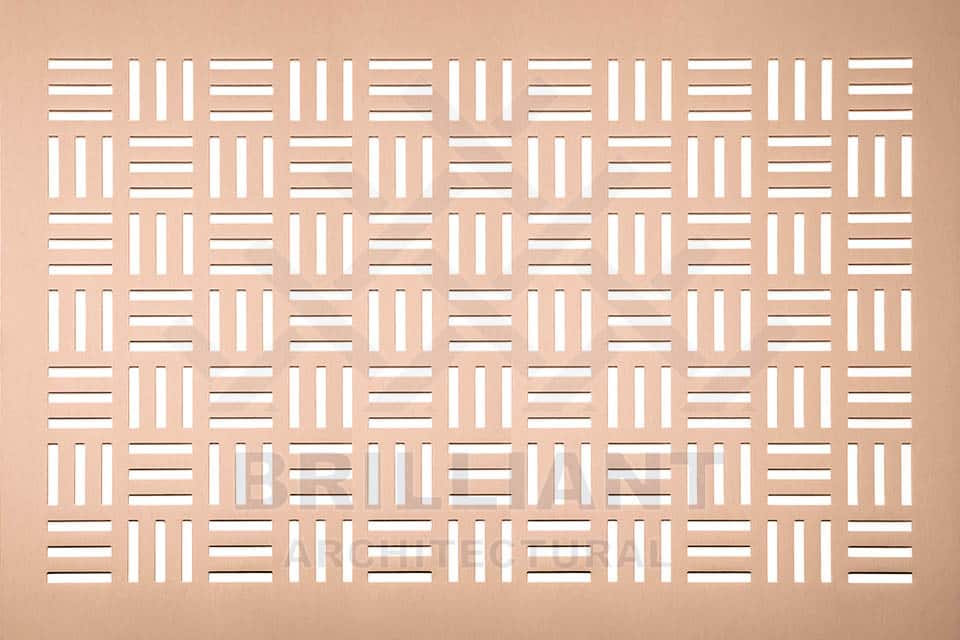

AUGUSTIN-LOUIS CAUCHY Cauchy-35Brass Cauchy-35Brass Decorative Pattern Perforated Metal Sheet Pattern Perforated Metal Sheet decorative slotted perforated sheet metal

Technical Specifications

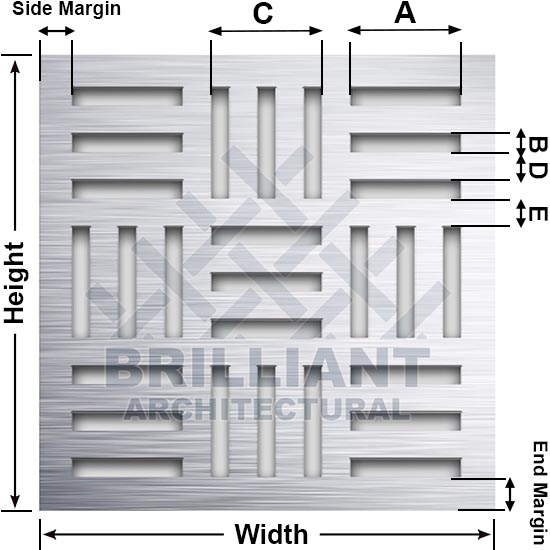

perforated metal pattern

Specifications Cauchy-35 Decorative Pattern Perforated Metal Sheet

Product Name Cauchy-35
Material Steel, Aluminum, Copper, Brass
Sheet Thickness, mm (in) On Request
O1, mm (in) 4.8mm
O2, mm (in) 38mm
D1, mm (in) 7.9mm
D2, mm (in) 38mm
Margins, mm (in) On Request
Open Area 35%
Max Width On Request
Max Length On Request
Approx. Weight, kg/m2 (lb/ft2), Stainless Steel
