Galilei-1715 Architectural Bendable Wire Mesh Screen

Galilei-1715 architectural bendable wire mesh is a versatile material crafted from flexible metal wires, allowing it to be easily bent and shaped to fit various design needs. Ideal for both interior and exterior applications, this mesh enhances building facades, cladding, and artistic installations with its adaptive nature. Its malleability makes it perfect for creating unique architectural features, intricate designs, or functional elements such as plant supports and trellises in gardening. Available in materials like steel and aluminum, the mesh combines durability with aesthetic flexibility, catering to a range of creative and structural applications.

Galilei-1715

Technical Specifications

Specifications of Darwin Series Stainless Steel Architectural Woven Wire Mesh Fabric

Product Name	Galilei-1715	Galilei-1515
Material	304/316 SS	304/316 SS
Wire size (d1), mm (in.)	1.5 (.059)	1.4 (.055)
Wire size (d2), mm (in.)	1.7 (.067)	1.5 (.059)
Wire rope size (d3), mm (in.)	2 (.079 )	2 (.079 )
Opening (O1), mm (in.)	15 (0.59)	15 (0.59)
Opening (O2), mm (in.)	2 (.079)	2 (.079)
Overall thickness, mm (in.)	4.5 (.177)	4.5 (.177)
Open Area	48%	50%
Max Width, m (ft)	2.8 (9)	2.8 (9)
Max Length, m (ft)	100 (30)	100 (30)
Approx. Weight, kg/m2 (lb/ft2)	7.8 (1.6)	5.2 (.205)

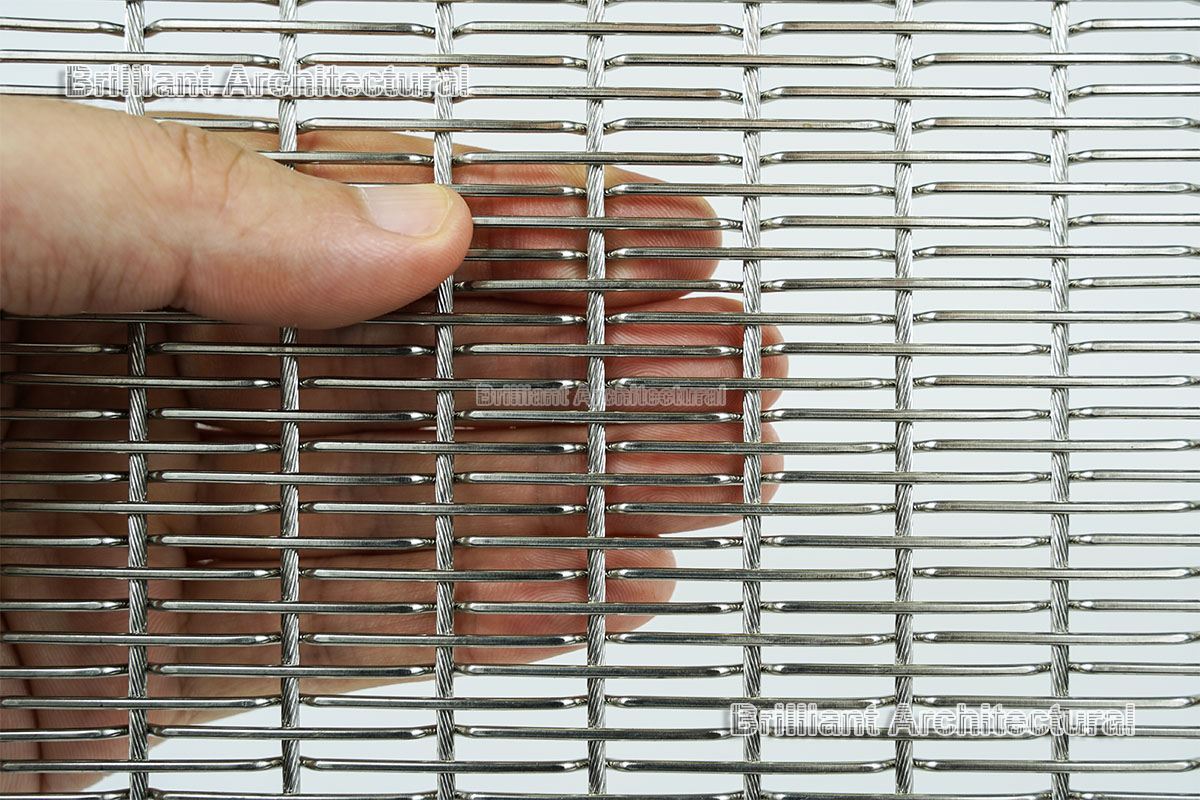

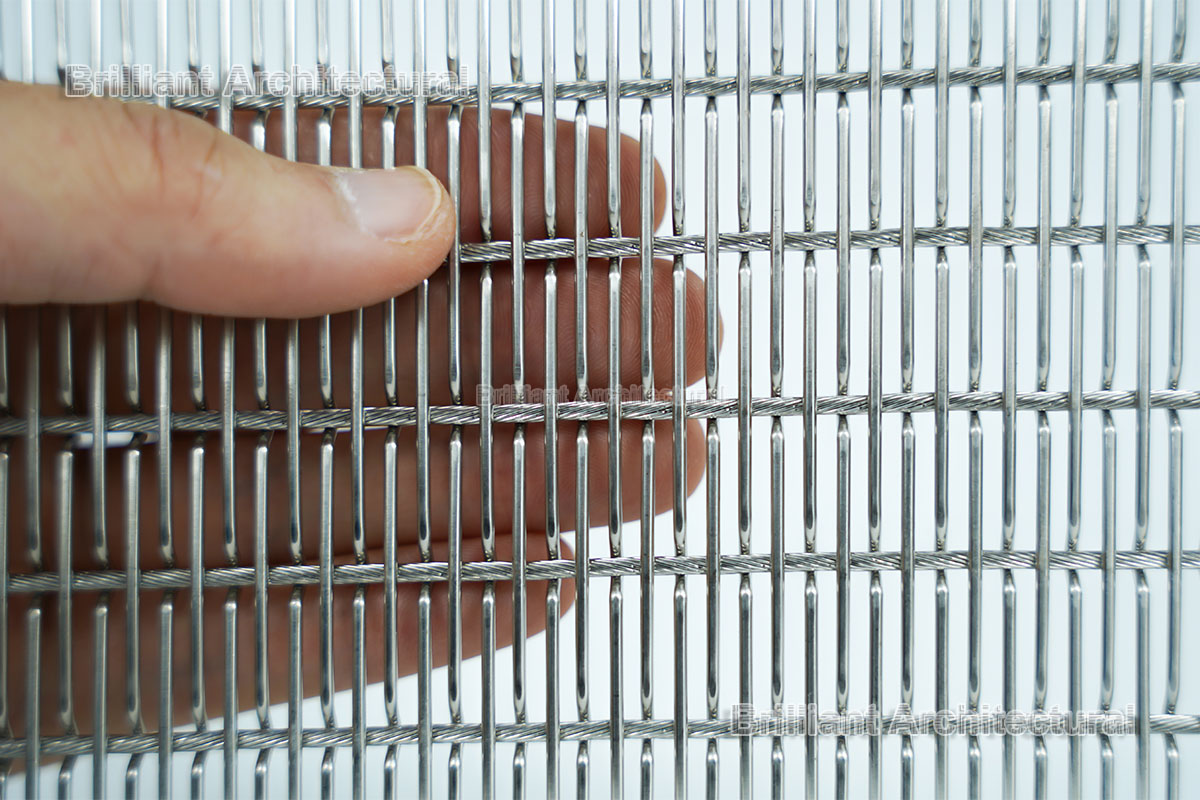

Product Photos

Surface Finishes
