Tesla-9613 Architectural Flexible Mesh Screen

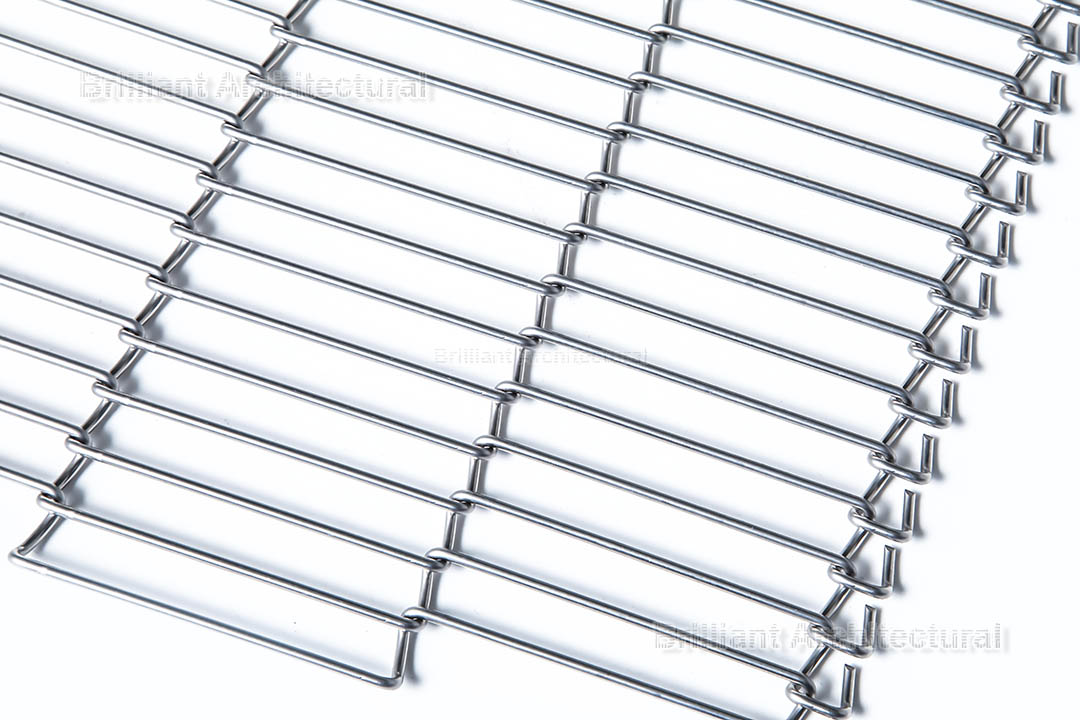

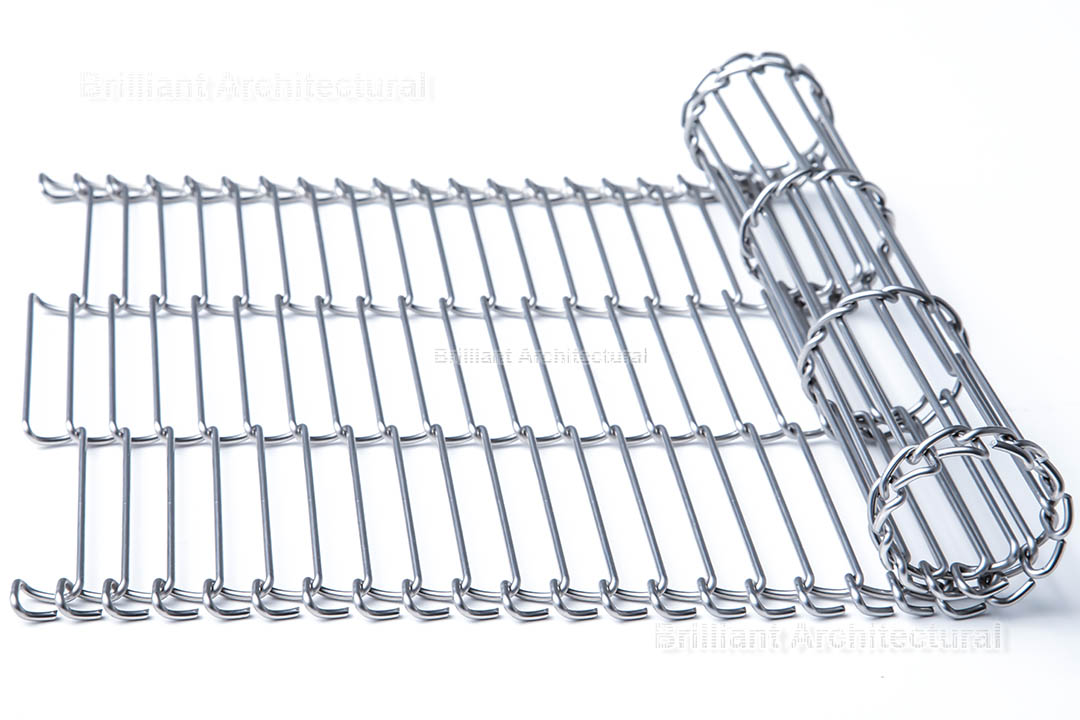

Tesla-9613 Architectural Flexible Mesh Screen is available in stainless steel, copper, and brass, offering a blend of durability and aesthetic appeal. The flexible mesh features rectangular openings with long aspect ratios, making it suitable for both functional and decorative purposes. With a wire diameter of 2.35mm and a pitch of 96 x 13 mm, it provides a well-balanced structure that allows for 80% open area, ensuring optimal airflow and light transmission. This versatile mesh is ideal for facades, partitions, and interior design elements, adding both texture and visual interest to any space.

Tesla-9613 Tesla-9613 Tesla-9613 architectural stainless steel flexible mesh screen stainless steel architectural flexible mesh screen

Technical Specifications

Architectural Flexible Mesh Screen Design Drawing

Specifications of Tesla-9613 Architectural Flexible Mesh Screen

Product Name Tesla-9613
Material Stainless Steel, Copper, Brass
Wire Dia. (d), mm (in) 2.35 (.093)
Pitch (P1), mm (in) 96 (3.78)
Pitch (P2), mm (in) 13 (.512)
Open Area 80%
Max Rigid
Max Flex
Approx. Weight, kg/m2 (lb/ft2), Stainless Steel 3.4 (.717)
Approx. Weight, kg/m2 (lb/ft2), Copper 3.83 (.784)
Approx. Weight, kg/m2 (lb/ft2), Brass 3.6 (.565)
