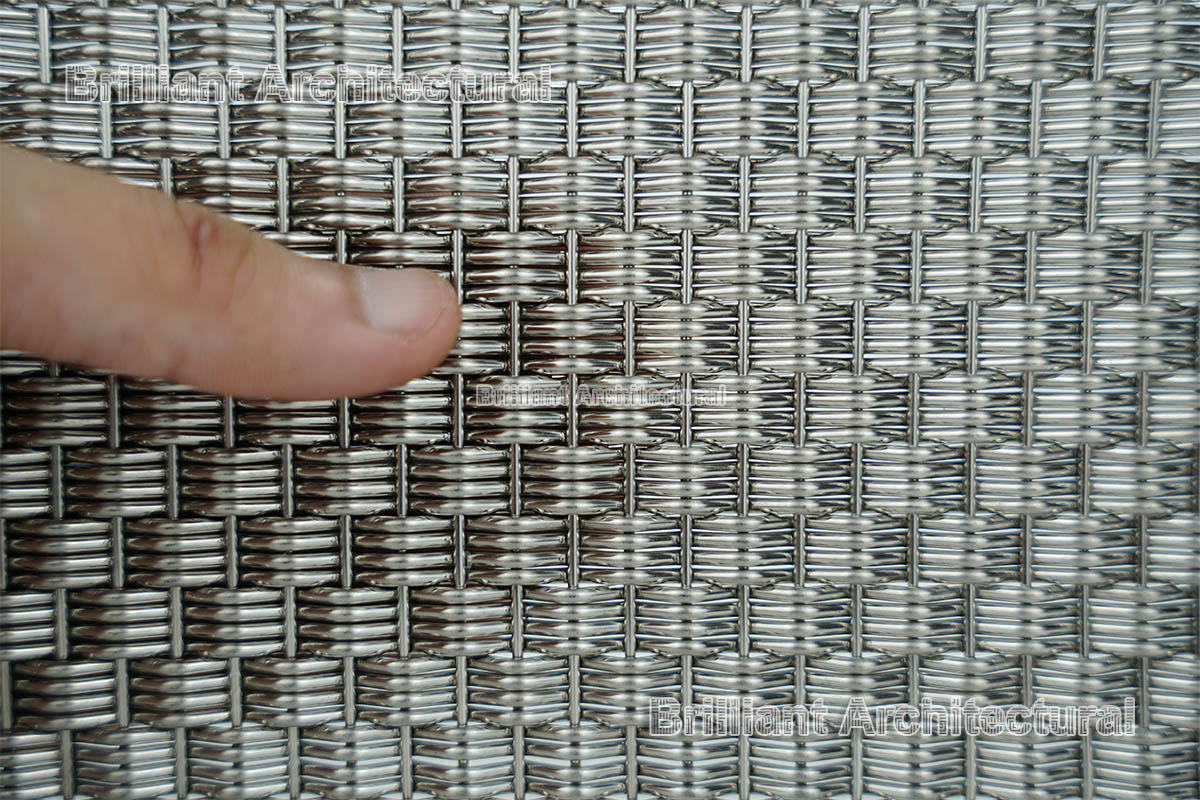

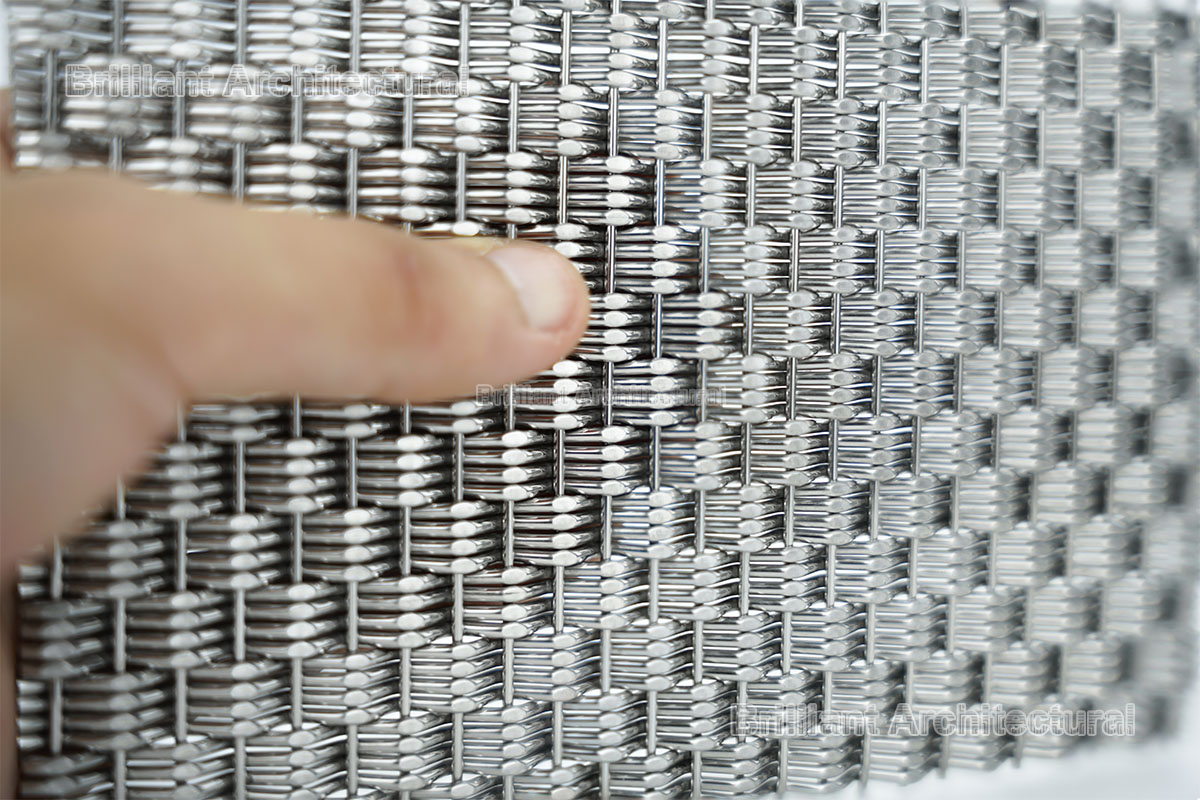

Watt-2012 Stainless Steel Architectural Mesh Panels

Watt-212 Stainless Steel Architectural Mesh Panels are crafted from durable stainless steel wire. With an open area of nearly 0%, this panel effectively blocks light, making it an ideal choice for applications requiring privacy and minimal visibility. Its robust design is particularly suited for both exterior and interior wall cladding, providing a sleek and modern finish to any surface. Additionally, Watt212 Architectural Mesh Panels are perfect for wire mesh inserts in various architectural elements, as well as infill panels for bar counters and other design features, where both functionality and aesthetics are essential.

JamesWatt

Technical Specifications

Specifications of Watt-212 Stainless Steel Architectural Mesh Panels

Product Name	Watt-212
Material	SS 304/316
Wire Size (d1), mm (in)	1.4 (.055)
Wire Size (d2), mm (in)	2 (.079)
O1, mm (in)	12 (.472)
O2, mm (in)	8.5 (.335)
Overall thickness, mm (in)	4.7 (.185)
Open Area	3 %
Max Width	1.2m (4 ft)
Max Length	2.8m (9 ft)
Approx. Weight, kg/m2 (lb/ft2)	14.4 (2.96)
