Hooke3836 Stainless Steel Mesh for Architectural Design

The Hooke3836 is a stainless steel mesh for architectural design, it features a unique combination of square and diamond-shaped openings, designed to maximize light transmission through its large openings. This patterned metal mesh is an excellent choice for enhancing both the functionality and aesthetics of various architectural elements.

Hooke-3836 stainless steel mesh for architectural design is ideal for door and window inserts, It is also lends itself perfectly to applications such as cabinet door inserts, stair railings, balustrade inserts, and wall cladding. Its distinctive design not only allows for greater light penetration but also adds a modern, stylish touch to any space. Whether used for structural or decorative purposes, Tesla3836 offers versatility and elegance, making it a favored choice for architects and designers seeking to create visually striking and functional interiors.

Tesla-3836 Tesla-3836 stainless steel architectural metal mesh architectural metal screen panels

Technical Specifications

Specifications of Hooke-3836 Stainless Steel Mesh for Architectural Design

Product Name Hooke-3836
Material 304/316 Stainless Steel
Wire Size (d1) 3.8 mm (.15 in)
Opening (O1) 9 mm (0.35 in)
Wire Size (d2) 2.0 mm (.079 in)
Opening (O2) 36 mm (1.42 in)
Overall thickness 5 mm (0.2 in)
Open Area 76 %
Max Width 1.2m (4 ft)
Max Length 2.8m (9 ft)
Approx. Weight, kg/m2 (lb/ft2) 4.6 (0.94)

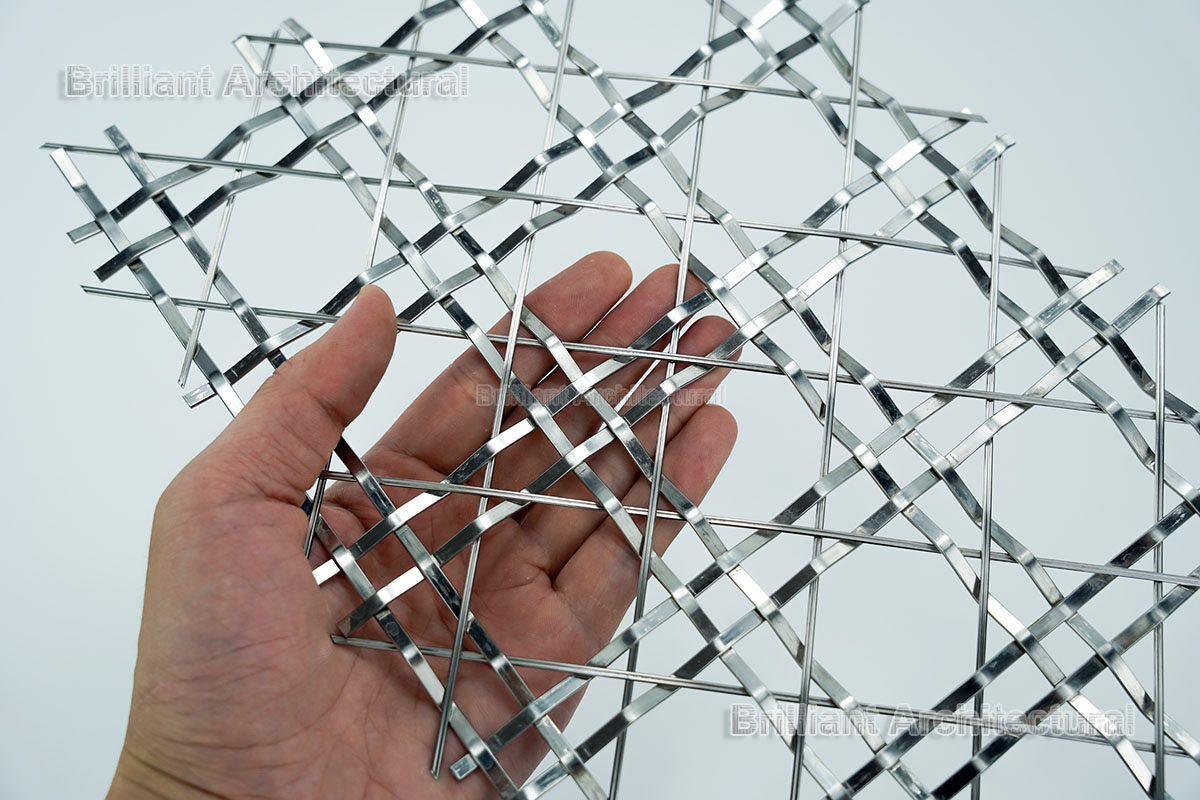

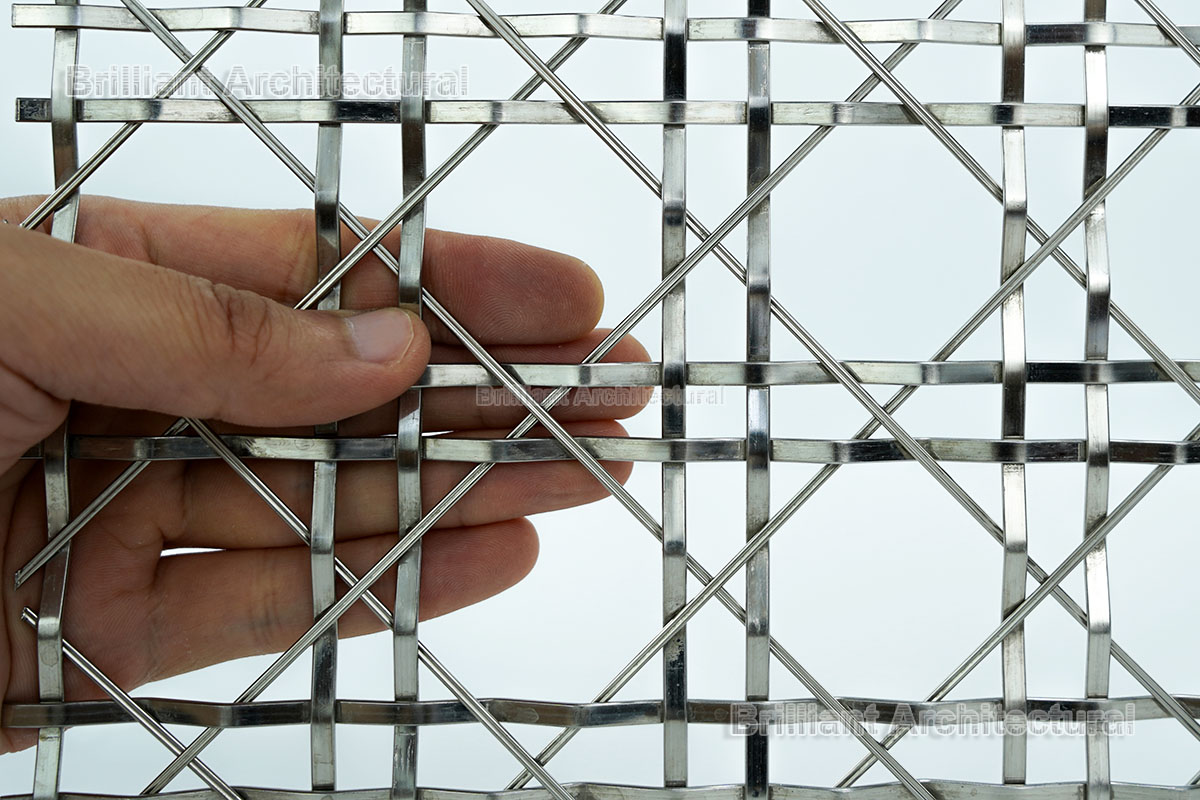

Product Photos
architectural wire mesh panels
Stainless Steel Architectural Mesh
stainless steel architectural woven mesh
Stainless Steel Architectural Wire Mesh
Stainless Steel Mesh for Architectural Design
Stainless Steel Architectural Mesh Panels
Architectural Stainless Steel Mesh
Architectural Stainless Steel Wire Mesh
Finishes

decorative metal mesh finish
